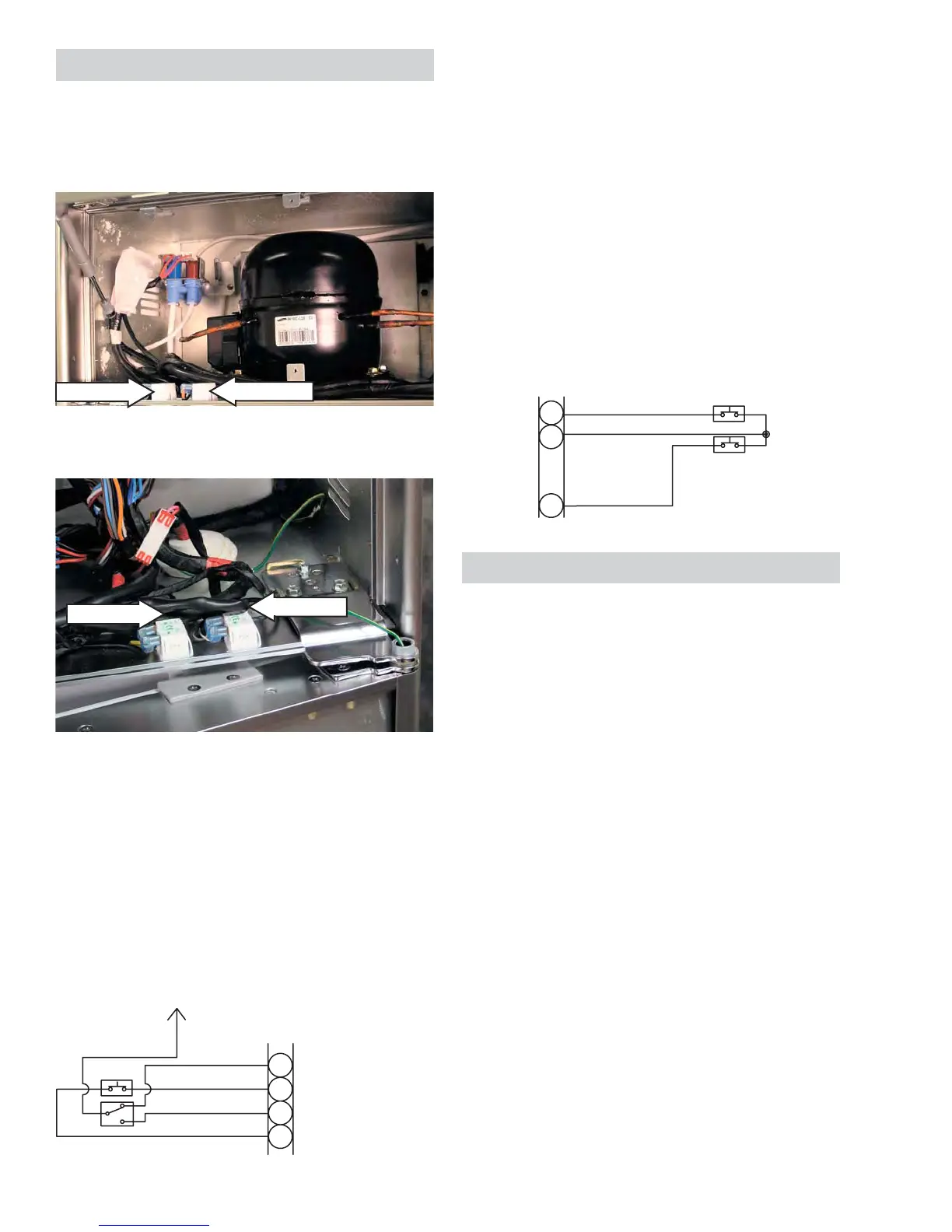

Interior Lights
Both the fresh food and freezer interior lights use
120 VAC, 40-watt incandescent bulbs. There are
4 bulbs (160 watts) in the fresh food section, and
2 bulbs (80 watts) in the freezer section.
Freezer bulb voltage is checked at CN07 on the
terminal block. Test for voltage between pin #9
and pin #10.
Note: Pin #10 is only at neutral when the freezer
door AC switch has closed contacts (door open).
Fresh food bulb voltage is checked at CN09 on
the terminal block. Test for voltage between pin
#4 (neutral) and pin #3.
Note: Pin #3 is only at line voltage (120 VAC)
when the fresh food AC door switch has closed
contacts (door open).
WARNING: The center terminal of the freezer
light socket is energized whenever the refrigerator
is plugged in and the main switch is closed,
regardless of door position.
DC Switch
AC Switch
Door Switches
The refrigerator is equipped with an AC and a DC
switch above each door. The switches are located
inside the machine compartment.
AC Switch
DC Switch
Freezer Door
Fresh Food Door
The AC switch, above the freezer door, controls
the freezer interior lights and the auger motor
operation. The freezer light is switched through
the neutral side of the line.
The AC switch, above the fresh food door,
controls the fresh food interior lights.
CN08
PURPLE/BLUE
YELLOW
ORANGE
BLACK
10
11
12
13
RED
NEUTRAL
AUGER MOTOR
FRESH FOOD LIGHT
FREEZER LIGHT
LINE (L1)
FREEZER DOOR SWITCH
FRESH FOOD
DOOR SWITCH
AC DOOR SWITCHES
The DC switches provide “door open” information
to the power control board (PCB).
Note: The fans turn off when the doors are
opened (DC door switches control operation)
and delay 10 seconds before restarting when the
doors are closed again. The freezer door switch
controls only the freezer fan. The fresh food door
switch controls both the fresh food and freezer
fan operation.
CN02
WHITE/YELLOW
WHITE/BLUE
GRAY
FREEZER DOOR
SWITCH
6
7
13
FRESH FOOD
DOOR SWITCH
DC DOOR SWITCHES
