– 37 –
Check for proper resistance of the valve coil
windings at the coil harness.
Orange - Gray = 40 Ω
Blue - Gray = 40 Ω
Orange - Blue = 80 Ω
Gray - Black = 40 Ω
Gray - Yellow = 40 Ω
Yellow - Black = 80 Ω
CN02
4
5
8
9
10
BLUE
YELLOW
ORANGE
RED
BLACK
STEP MOTOR
1
2
5
3
4
BLUE
ORANGE
YELLOW
BLACK
GRAY
1
2
5
3
4

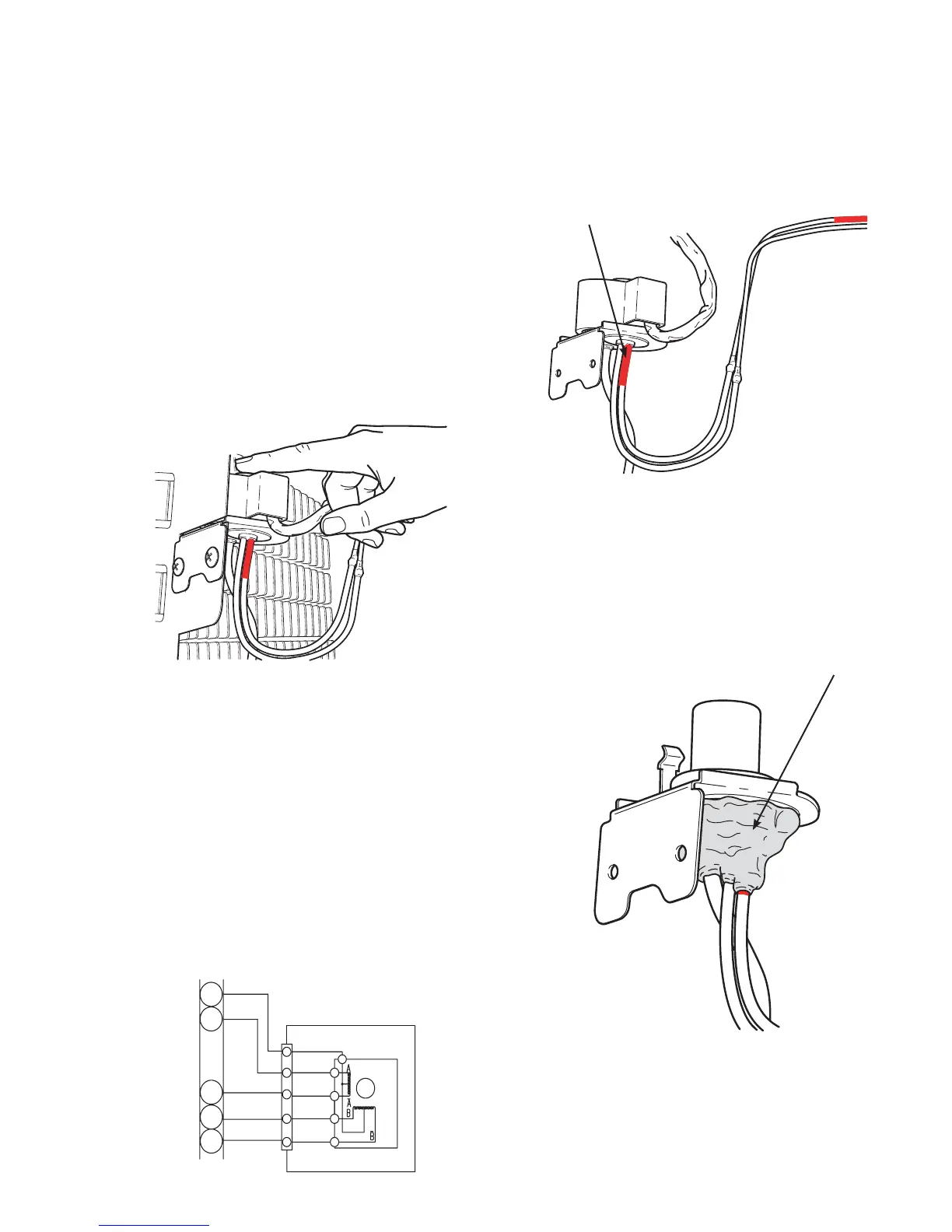

Testing
To test whether the 3-way valve is receiving a
signal from the power control board:
1. Turn the power OFF at the main switch for at
least 10 seconds.
2. Place a fi nger on top of the valve.
Caution: Be careful of the condenser fan and any
exposed wires.
3. Turn the main switch back on. You should feel
movement, and you may hear the 3-way valve
move to the home position.
4. If movement is detected, the power control
board and valve coil should be OK.
Replacement
When replacing the 3-way valve, note the red
sleeve on the valve tube. This tube connects to
the freezer capillary. The corresponding freezer
capillary has red paint above the braze joint.
The 3-way valve is extremely sensitive to heat.
When brazing, thoroughly cover the valve base
with heat absorbing paste (part # WR5X8927).
Make certain to direct the fl ame away from the
valve body.
Heat Absorbing Paste
To Freezer Capillary
To Next Page
