GE Profile WPDH8800J

– 18 –

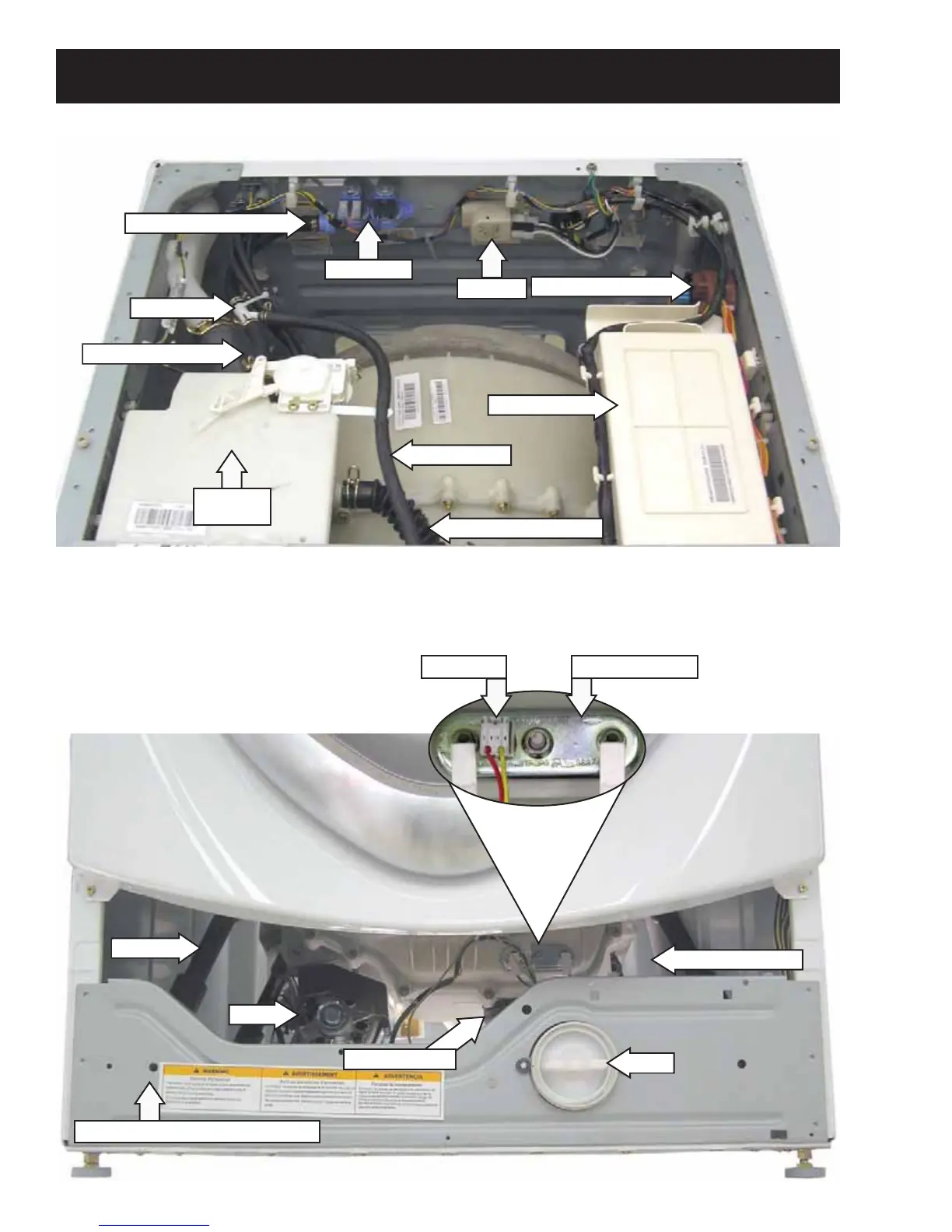

Component Locator Views
(Continued Next Page)
Top View
Thermistor
Heating Element
Pump Outlet Hose
Pump
Damper
Motor
Front View
Tub Drain Hose
Inverter Located Behind Frame Front
Water Level Control
Water Valve
Line Filter
Dispenser Inlet Hose
Dispenser Vent Hose
Nozzle Hose
Water Valve Outlet Hose
3-Way Pipe
Dispenser
Assembly
Power Control
