3. Remove the 3 Phillips-head screws that hold the
door hinge to the front panel.
Door Hinge

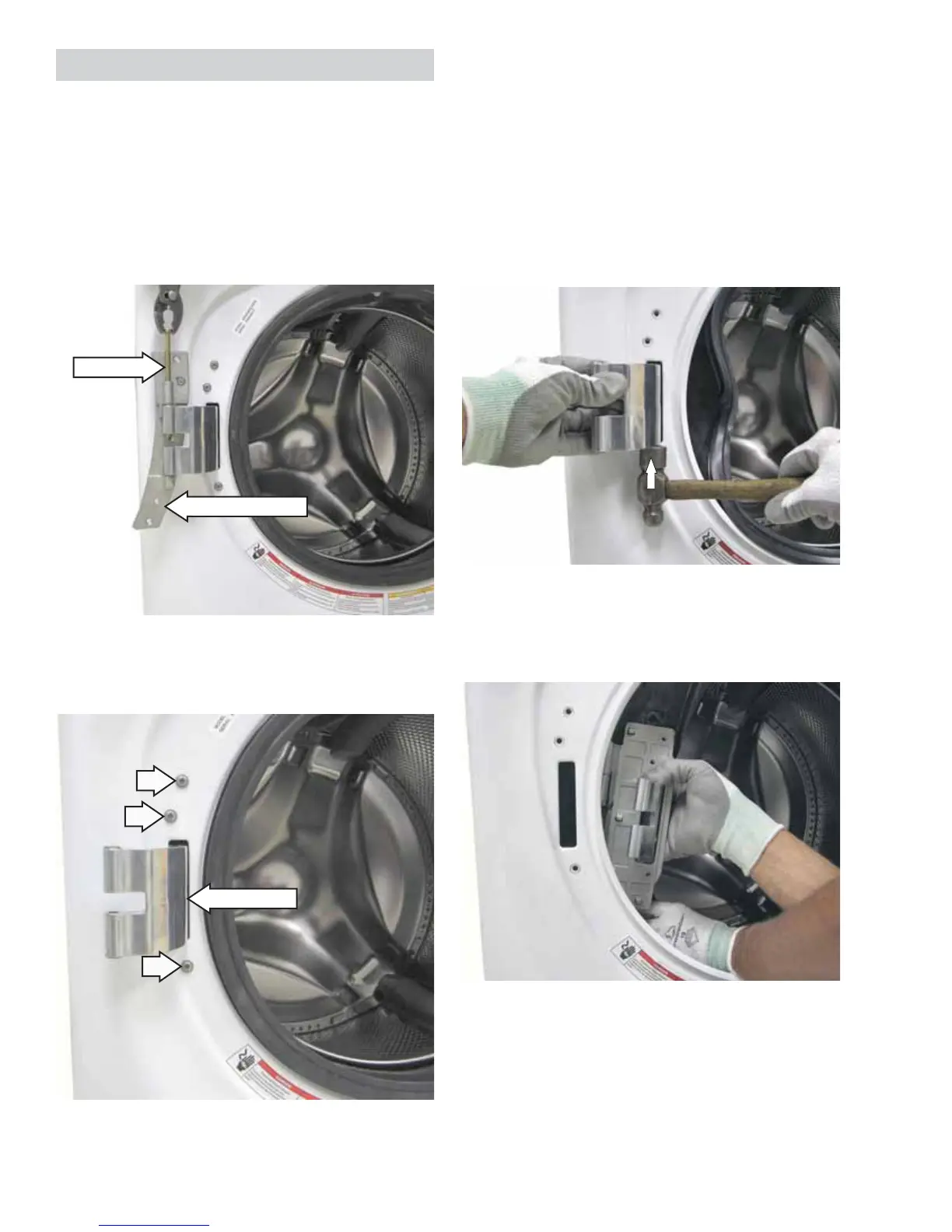

To remove the door hinge:
Remove the door. (See 1. Door.)
Grasp the hinge pin with a pair of pliers and pull 2.
the pin out of the hinge. Remove the door hinge
plate.
Note: It may be helpful to drive the hinge pin
upward using a punch.
Push the tub assembly back while pressing the 6.
hinge arm inward and carefully remove the door
hinge through the opening.
Hinge Pin
Door Hinge Plate
Door Hinge
4. Remove the gasket from the front panel. (See
Front Panel.)
5. Push and fold the left side of the gasket inside
the wash basket.
Note: The door hinge is attached to the front panel
with 3 Phillips-head screws in front and 3 tabs on
the back. After removing the screws, it may be
necessary to strike the bottom of the hinge (as
shown) to free it from the front panel.
