Power Board Assembly
To remove the power board assembly:
The power board and its cover are replaced as an
assembly.
Remove the top panel. (See 1. Top Panel.)
Note: The power supply assembly is attached to the
control bracket with a 6-mm hex-head screw and 2
tabs, and attached to the right side top brace with 1
locking tab.

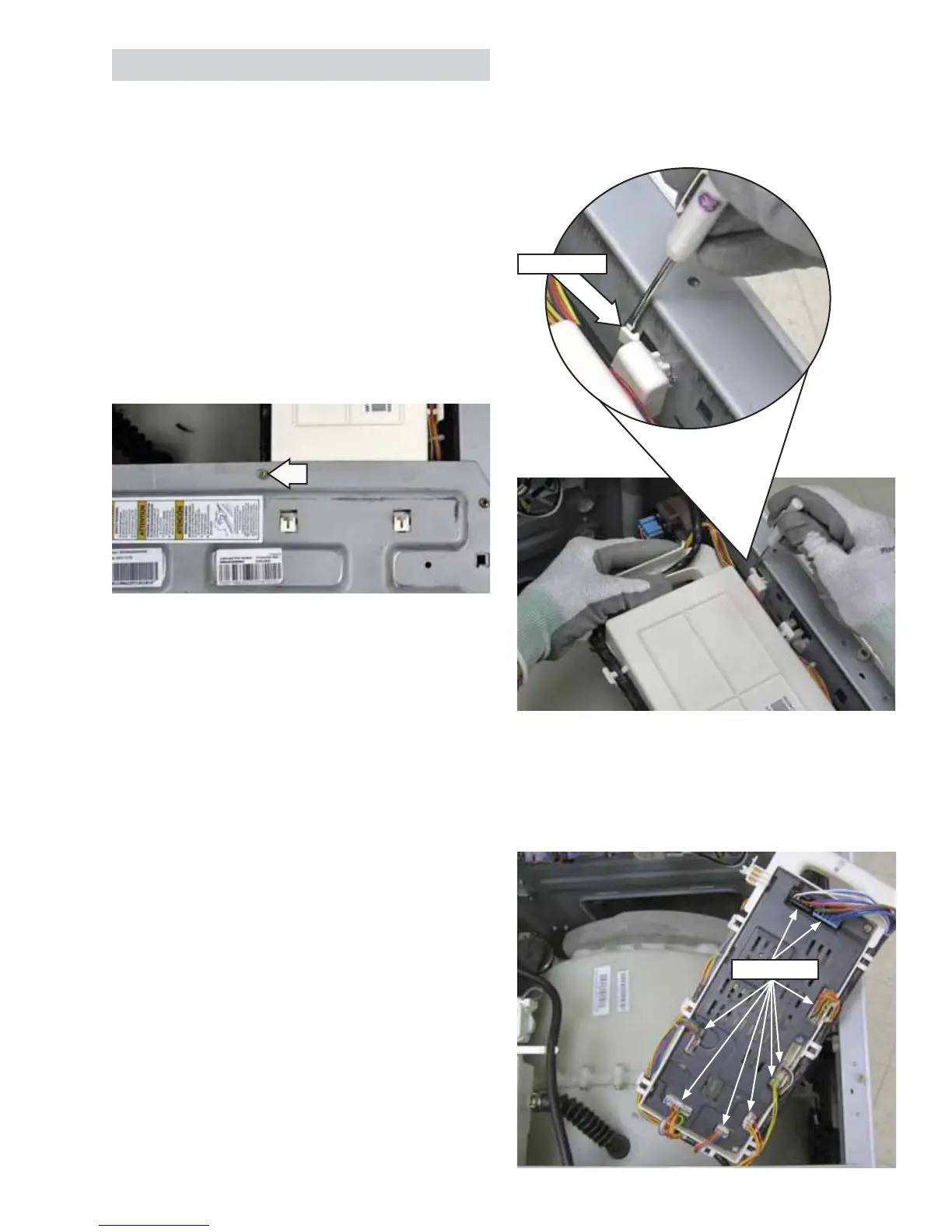

2. Remove the 6-mm hex-head screw that
attaches the power supply to the control
bracket.
3. Using a small fl at blade screwdriver, carefully
pry the locking tab away from the right side top
brace while pulling the power supply up and
towards the rear of the washer.
4. Invert the power board.
5. Disconnect the wire harnesses from the power
board assembly.
Locking Tab
Disconnect
