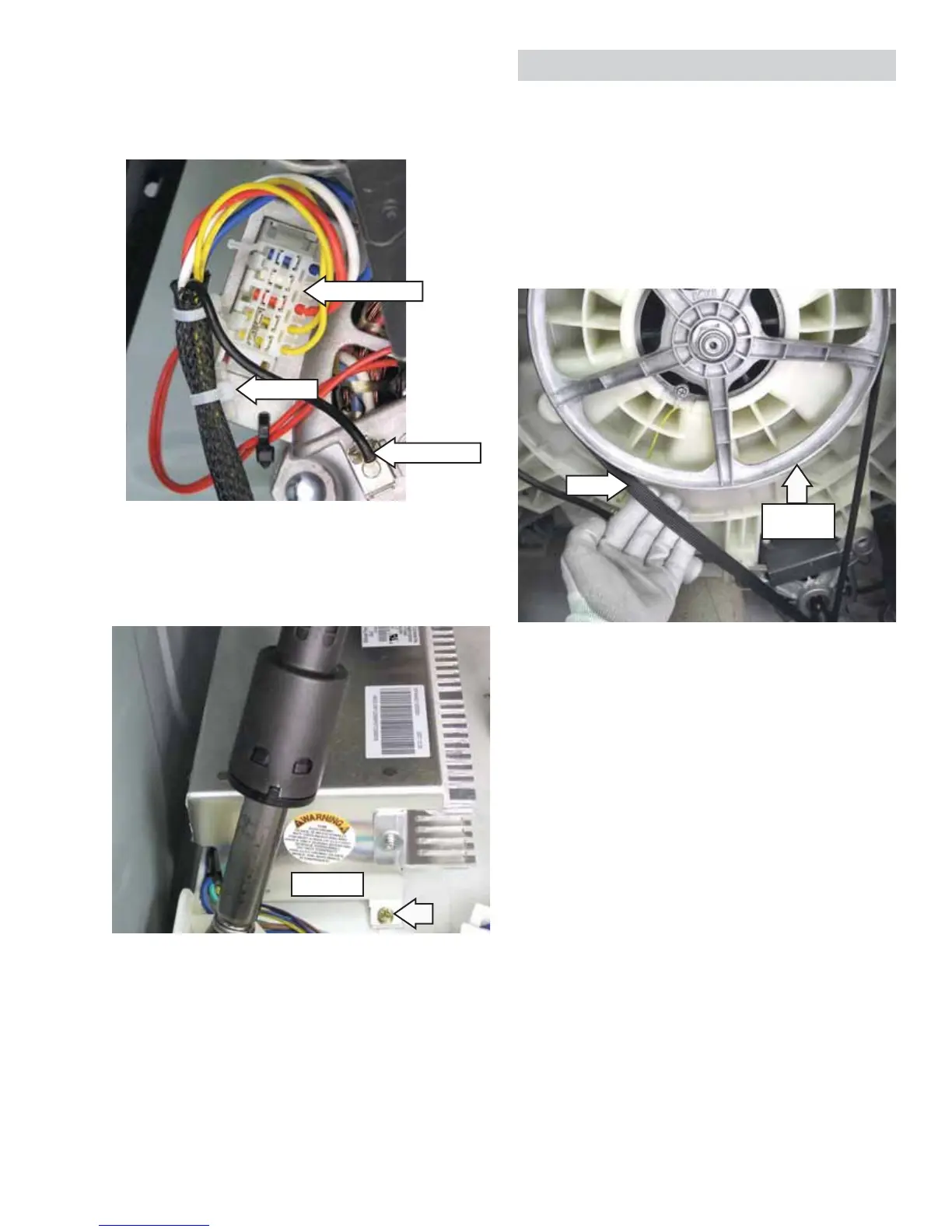

– 39 –
Slide the inverter rearward to clear the guides 8.
that hold the rear of the inverter to the chassis.
Remove the inverter through the enlarged 9.
opening on the left side of the front frame.
Remove the single Phillips-head screw that 7.
holds the right front leg of the inverter to the
base pan.
Ground Wire
Wire Tie
Press the lock tab and remove the motor ground 5.
wire.
Remove the plastic wire tie that holds the motor 6.
wiring in place.
Inverter
Wire Harness
Belt
To remove the belt:
Remove the four 6-mm screws from the cabinet 1.
rear cover.
Pull the cover outward from the middle. 2.
Remove the belt by turning the tub drive pulley 3.
and rolling the belt off the pulley.
Note: The belt is elastic and is designed to be
removed and installed in this manner.
Belt
Tub Drive
Pulley
To Next Page
