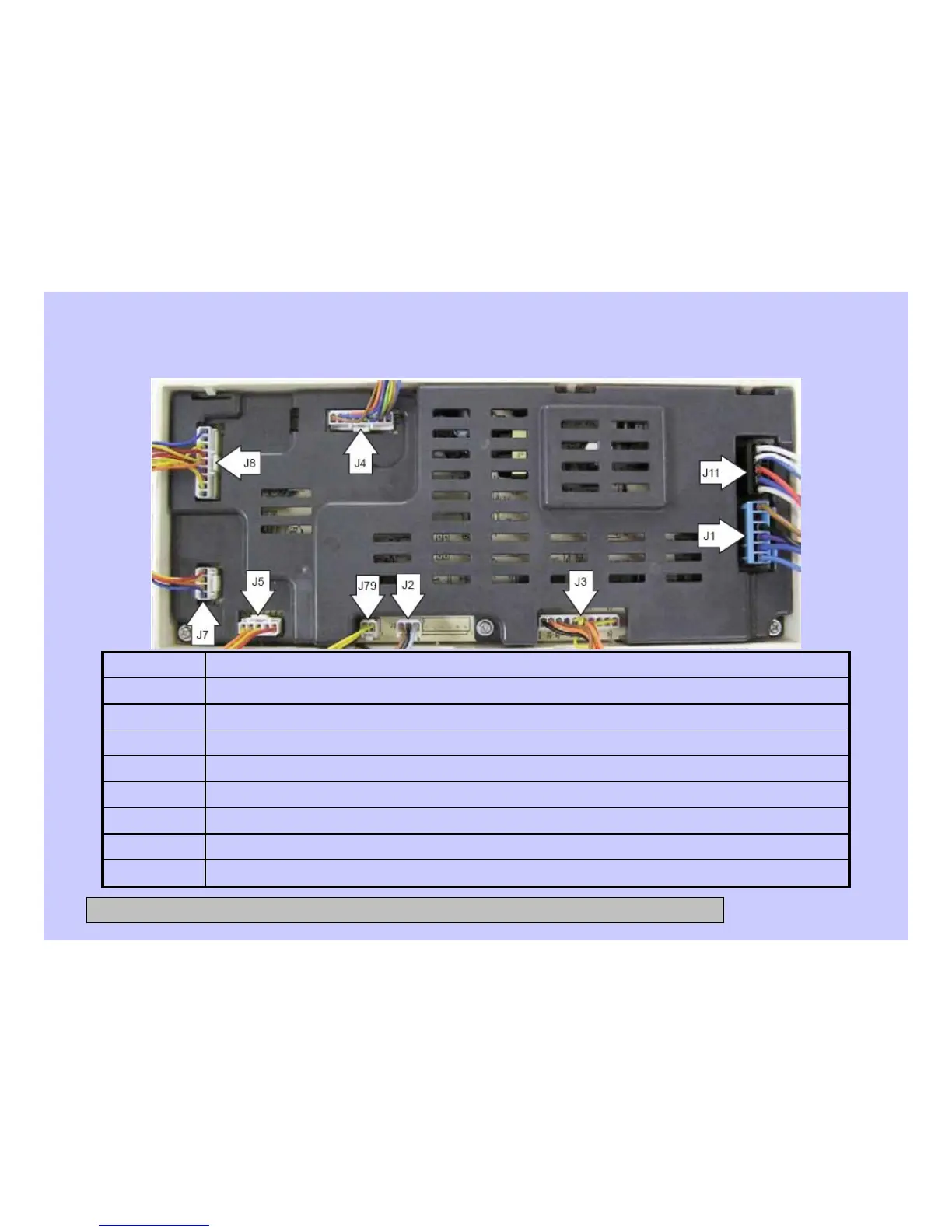

Power Supply Board (rear cover on)
Motor tachometer
J79
L1 door lock switch, heater, N to inverter, N to bulk dispenser board, N to power filter
J11
Bulk dispenser switch, dispense position switch, heater temperature thermistor, door lock switch
J6
Detergent and softener level sensors
J7
Pressure switch: foam, main, and overflow switches
J5
7V and 12V to UI, LIN bus, ground to UI and inverter, Ezlink tx, tx, and 5V to inverter
J4
Door lock and unlock solenoids, dispenser motor, hot and cold water valves, water pump
J3
Softener pump, detergent pump motors
J2
L1 output to inverter, door lock switch, heater, and power filter
J1
