23
Dispenser Assembly
The dispenser assembly provides automatic
dispensing of detergent, bleach, and fabric
softener as long as the user fills the
compartments prior to starting the washer.
The products added to the dispenser are
diluted with water before they are dispensed
into the wash tub. This is accomplished by a
water diverter that sprays a controlled jet of
water into the proper compartment at the
correct time. The water diverter movement is
provided by a motor-driven cam located on
the dispenser tank. The diverter motor and
water valve are operated by the control
board.
At the start of a cycle, after the wake-up
routine is completed, the dispenser always
moves into position before fill takes place.

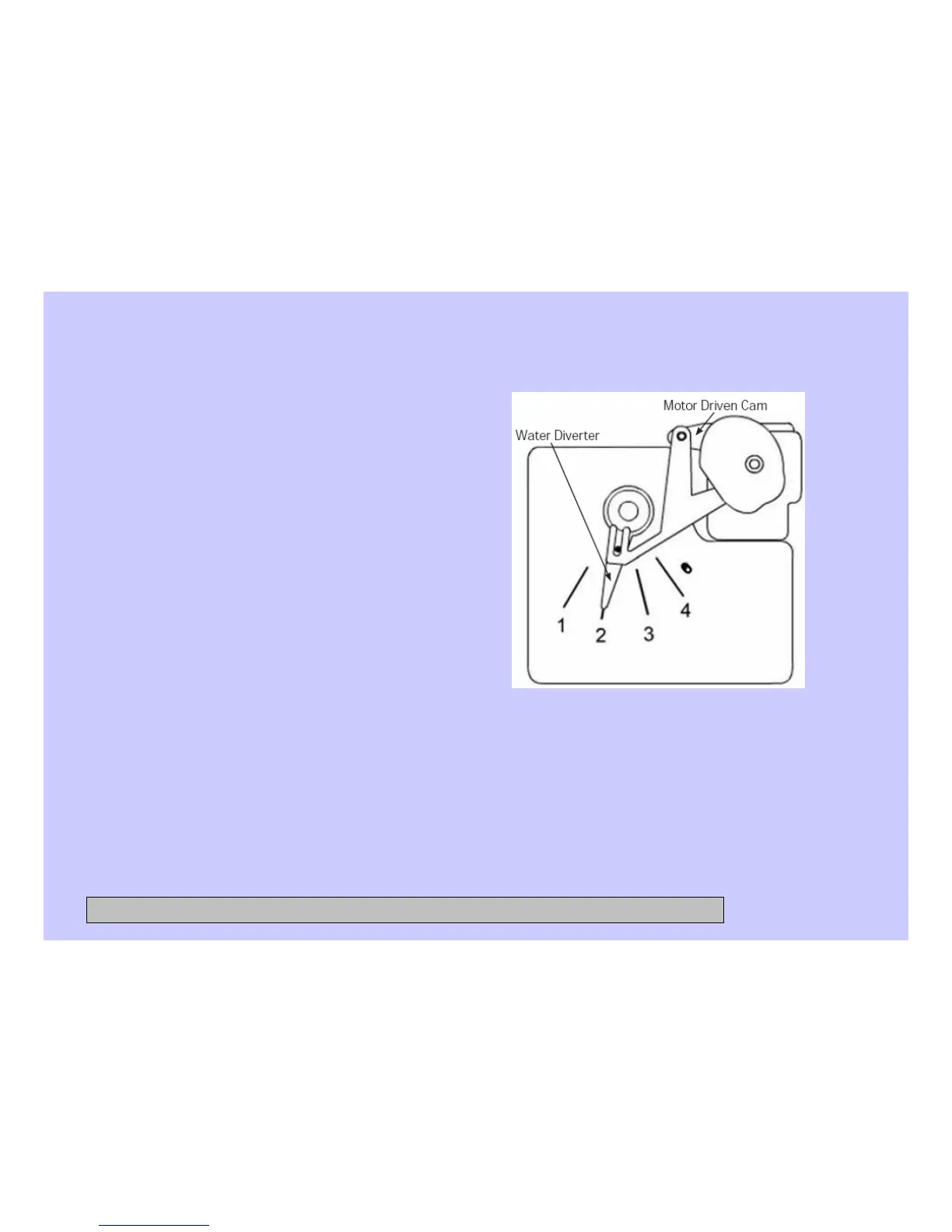

Dispenser Tank
Position Dispenser Function
1Pre Wash
2 Wash
3 Fabric Softener
4 Bleach
CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE. September 2008
