Control Panel
The control panel is held in place with 5 Phillips head screws and 1 tab.
To remove the control panel assembly:

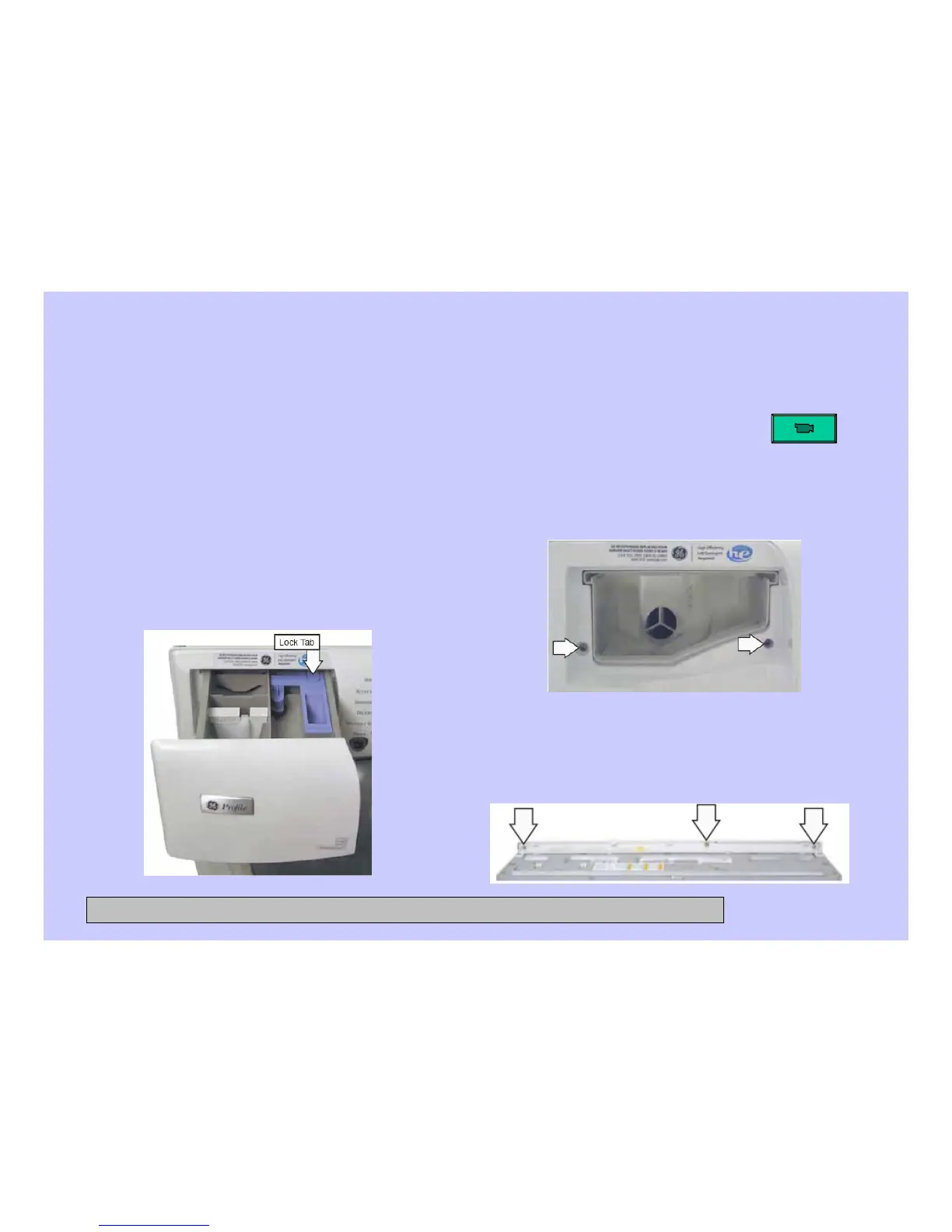

1. Remove the top panel.
2. Pull the dispenser out to the stop
position. Press down on the lock tab.
Pull the dispenser out.
3. Remove the 2 Phillips-head
screws from the control panel
dispenser recess.
4. Remove the 3 (7-mm) hex-head
screws that attach the top of the
control panel to the control panel
brace.
