Power Board Assembly (cont.)

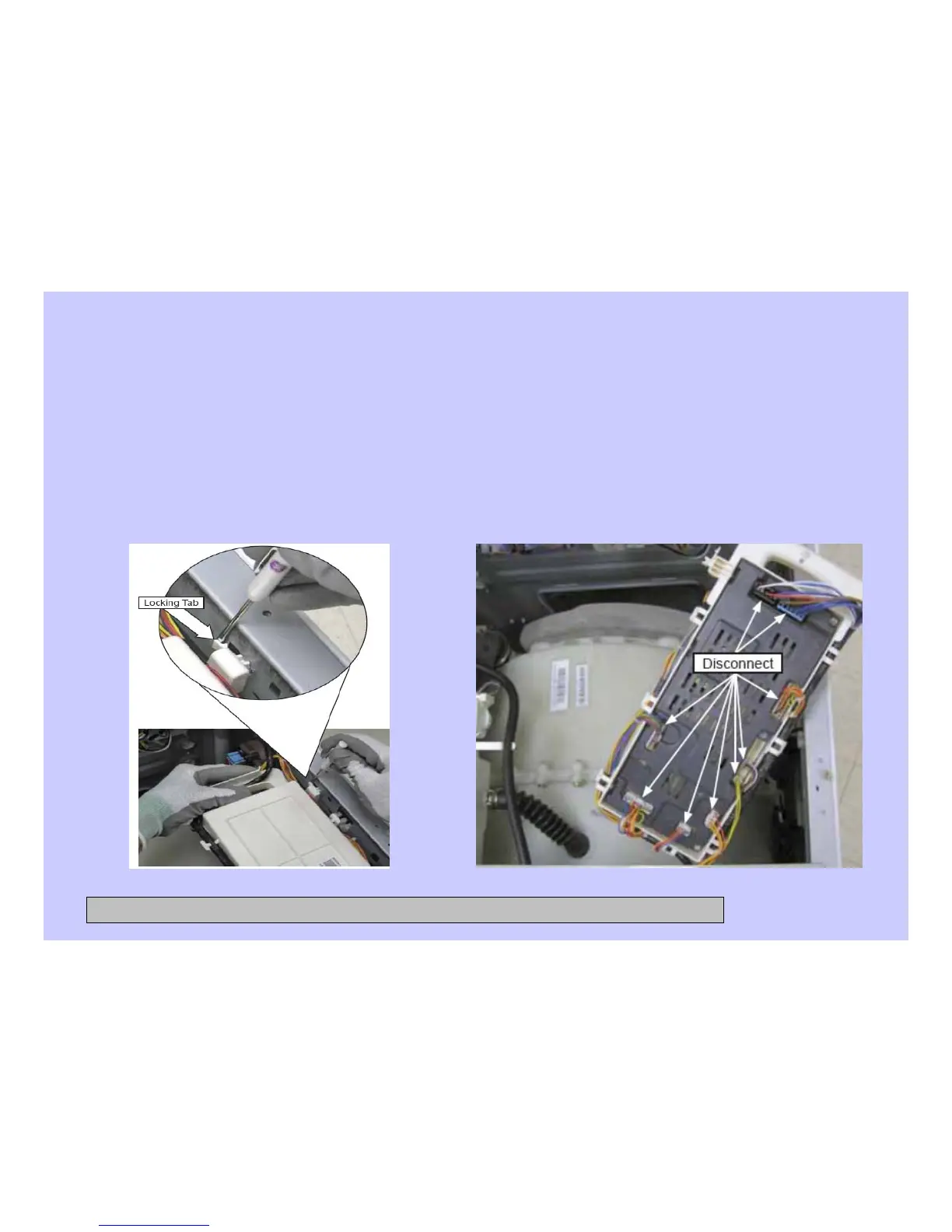

3. Using a small fl at blade
screwdriver, carefully pry the
locking tab away from the right side
top brace while pulling the power
supply up and towards the rear of
the washer.
4. Invert the power board.
5. Disconnect the wire harnesses from the
power board assembly.
