Door Hinge (cont.)

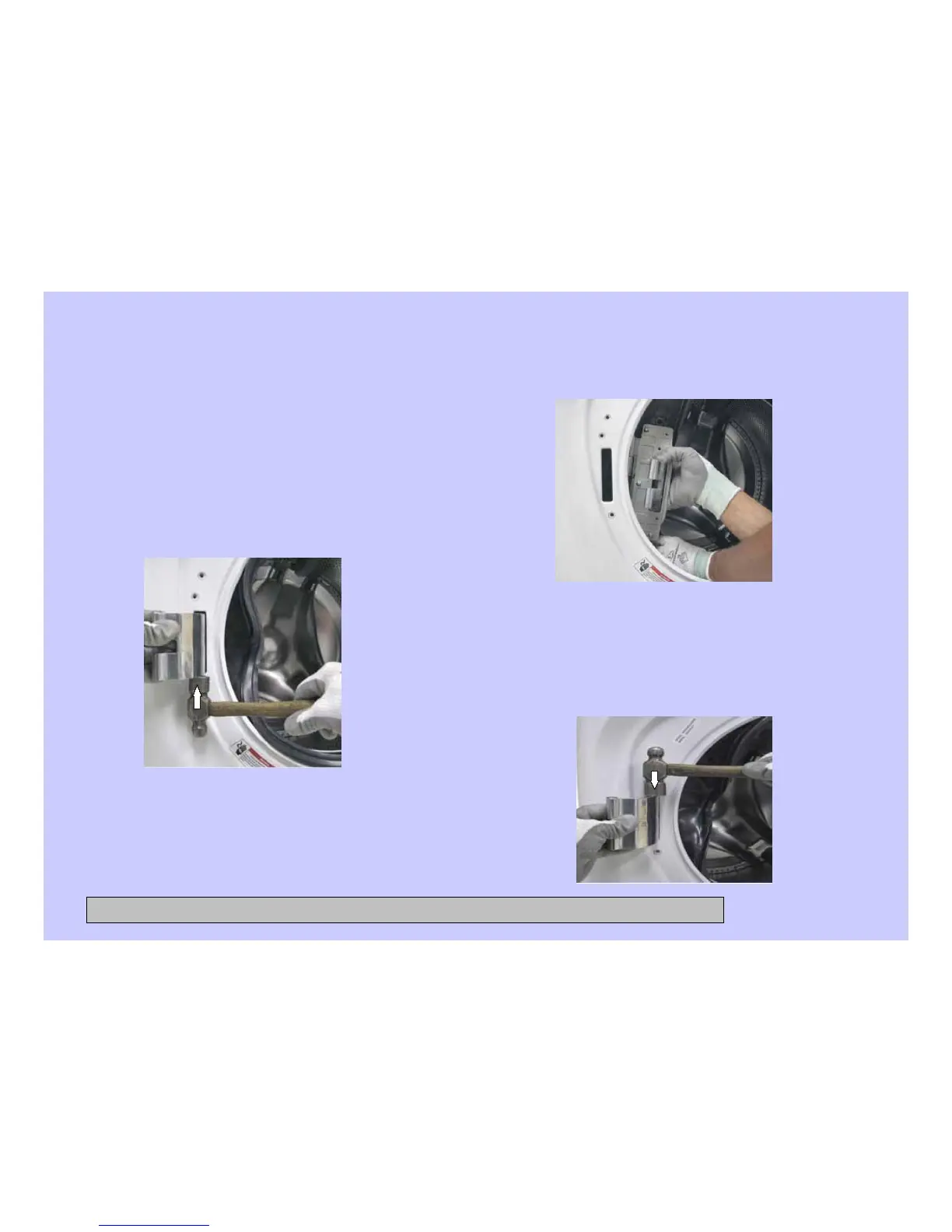

Note: The door hinge is attached to the
front panel with 3 Phillips-head screws in
front and 3 tabs on the back. After
removing the screws, it may be
necessary to strike the bottom of the
hinge (as shown) to free it from the front
panel.
6. Push the tub assembly back while
pressing the hinge arm inward and
carefully remove the door hinge
through the opening.
Note: When installing the hinge, it may be
necessary to strike the top of the hinge (as
shown) to fully engage the 3 tabs on the
rear of the front cover and to align the 3
screw holes in front.
CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE. September 2008
