Dampers (cont.)

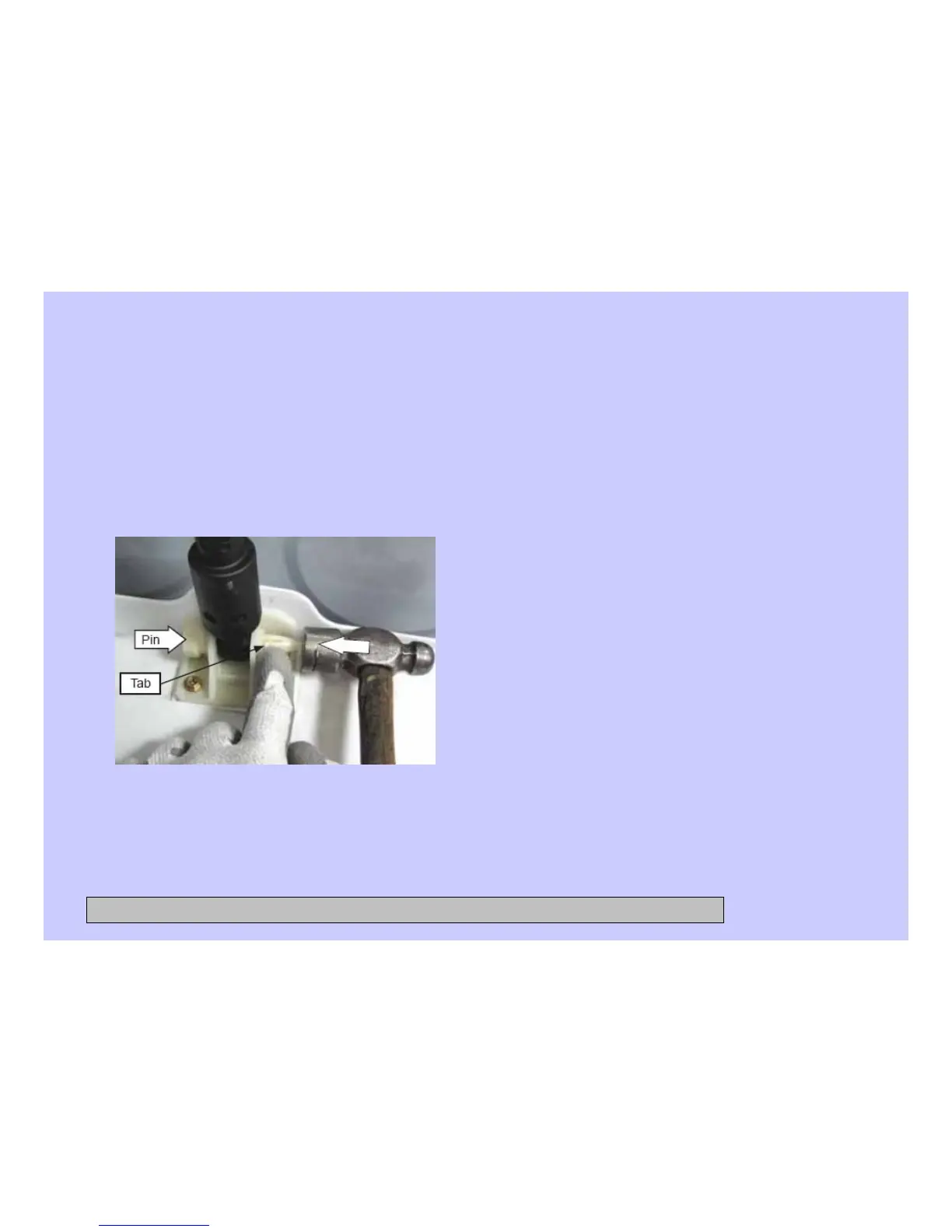

4. Remove the pin that secures each
damper to the chassis by pressing the
lock tab while pulling the pin out.
Note: It may be helpful to tap the pins out
with a small hammer while pressing on
the lock tabs.
To replace the dampers:
Note: The pin will be damaged when
removed from the chassis. Be sure to
install the new pin supplied with the
replacement damper.
1. Insert and fully seat the pin that secures
each damper to the chassis.
Note: It may be helpful to tap the pins into the
chassis with a small hammer.
2. Extend and fully insert the damper into
the slot in the outer tub.
3. Rotate the gray upper bushing a quarter-
turn counterclockwise (as viewed from
the top), using a 6-in. adjustable crescent
wrench with a jaw opening of
approximately 7/8 inch.
Note: Ensure the 2 lock tabs on the gray
upper bushing are in the square holes in the
outer tub.
