– 10 –

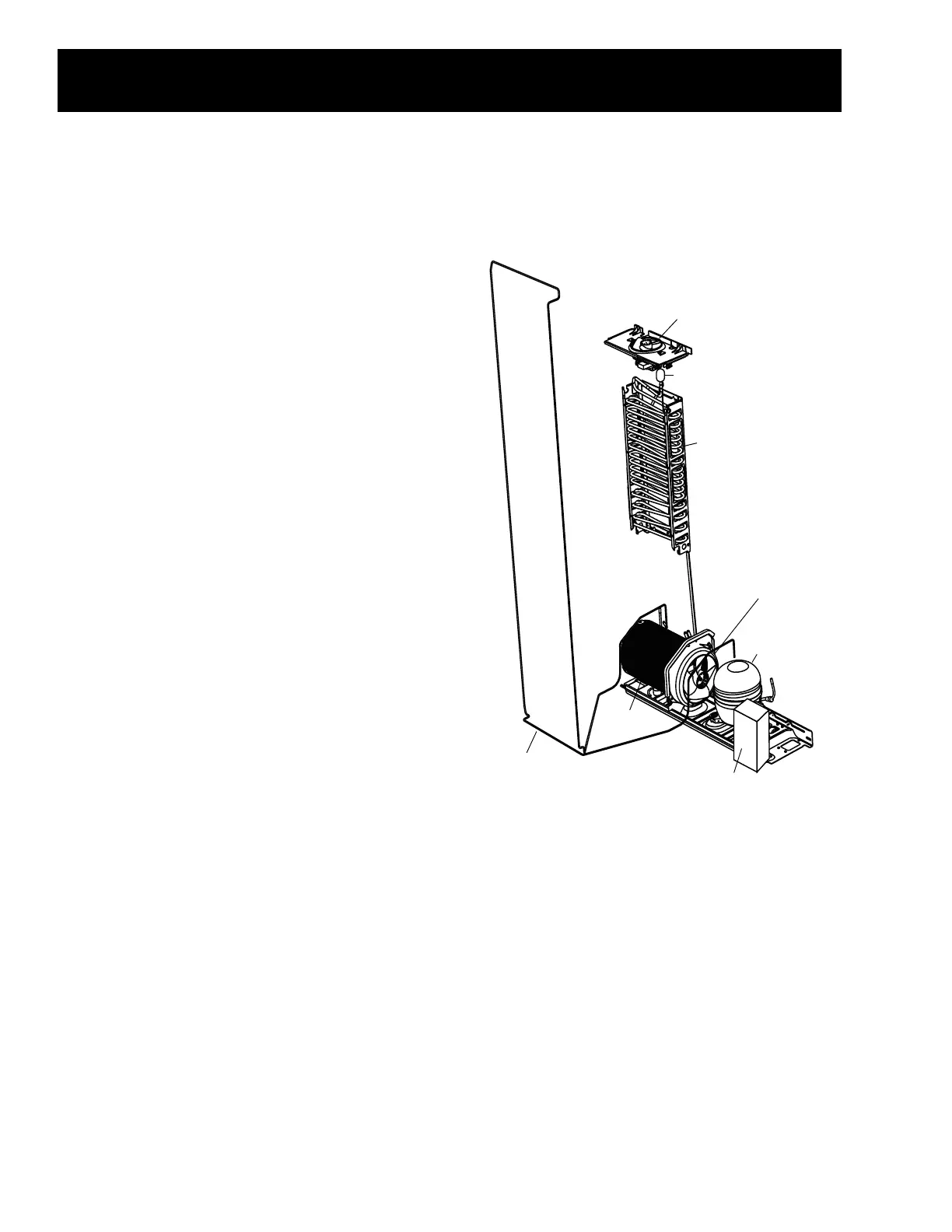

Refrigeration System
EVAPORATOR FAN
ACCUMULATOR
EVAPORATOR
3-SPEED CONDENSER FAN
INVERTER
COMPRESSOR
INVERTER
CONDENSER
CONDENSER LOOP
GEA01262
The refrigeration system has several new components as well as several familiar ones. New
components include:
• Inverter compressor
• Inverter
• 3-speed condenser fan
• Accumulator at the outlet of the evaporator
Familiar components include:
• Condenser
• Condenser loop
• Dryer
• Evaporator
• Evaporator fan
The refrigeration system operates with optimum
efficiency and economy by changing the speed of
the compressor (and condenser fan) to meet
demand. During times of high usage, or in
extremely warm ambient conditions, the 3-speed,
inverter compressor will increase speed to meet
greater refrigeration requirements. When usage is
low, the compressor will operate at a slower
speed, reducing its energy requirement.
In the new system with the inverter compressor,
the flow of refrigerant through the components in
the system is the same as previous models with
the following exception: an accumulator has been
added to the outlet side of the evaporator.
