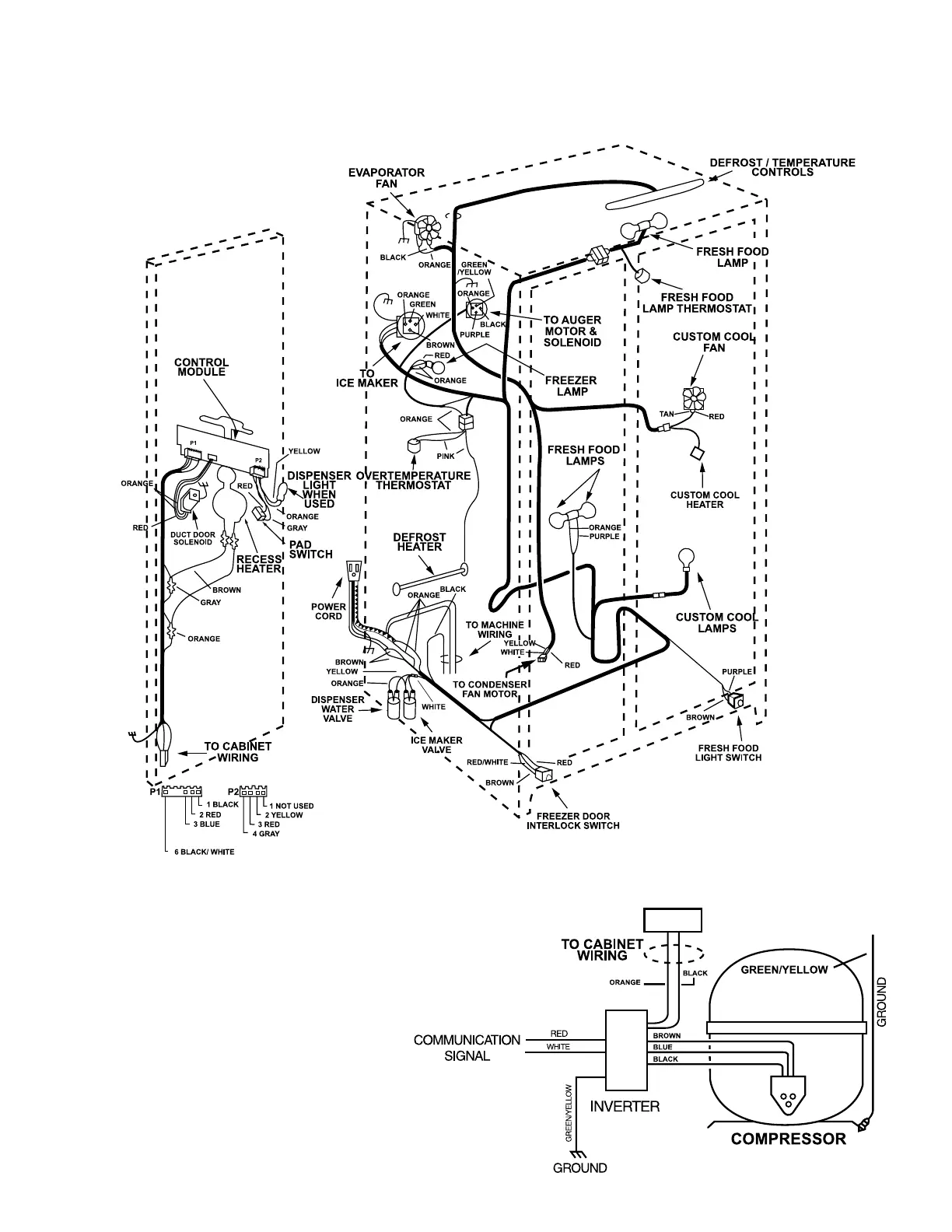

Wiring Diagram
Warning: Disconnecting the 6-pin
connector does not disconnect
power (120 VAC) from the
inverter. The refrigerator must
be unplugged before servicing
the inverter or compressor.
Caution: Do not attempt to
direct-start the compressor. The
compressor operates on a
3-phase power supply. Applying
120 VAC to the compressor will
permanently damage the unit. It
is not possible to start the
compressor without an inverter.
