Maintenance
Electrical contact den simeter threshold inspection
GE Information08- 2016 L51- 108EN/06
7/8
Putting away the control tool
Process
The table below gives the steps of putting away the control tool:

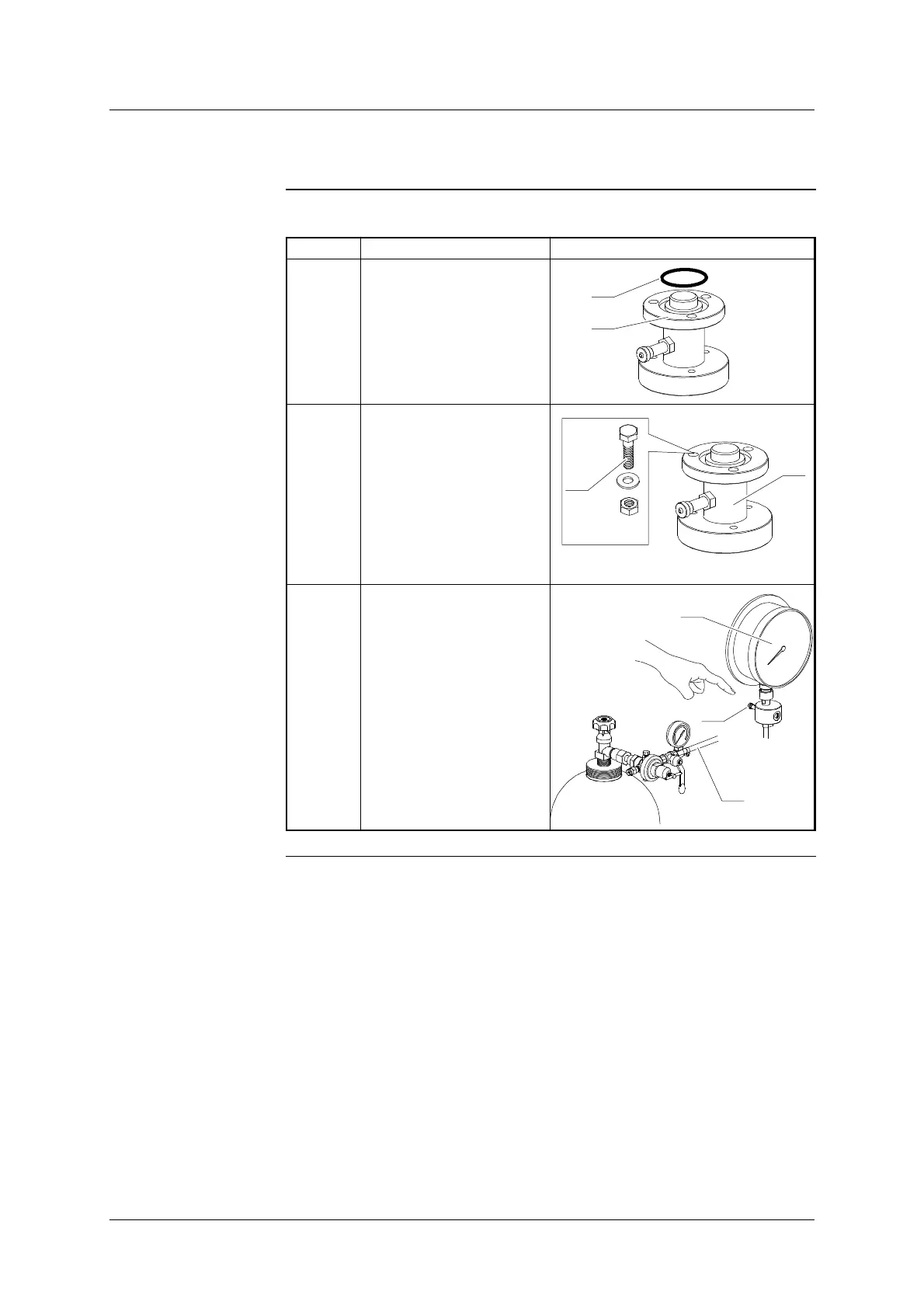

Step Action Diagram
1 Take precautions to
remove the seal (16) from
the connection valve block
(5) and put it away into the
“SET OF SEALS” box of
the densimeter threshold
inspection case.
16
5
2 Install screws (14) on the
connection valve block (5)
Put away the connection
valve block (5) into the
case.
x3
14
H M6- 20
5
3 Disconnect the pipe (23)
from the valve (10) of the
gauge (11).
SF
6
10
11
23
