Description and operation
Pole operation
(Interrupting principle)
GE Information L13- 005EN/04
1/6
08- 2016
Presentation
Introduction

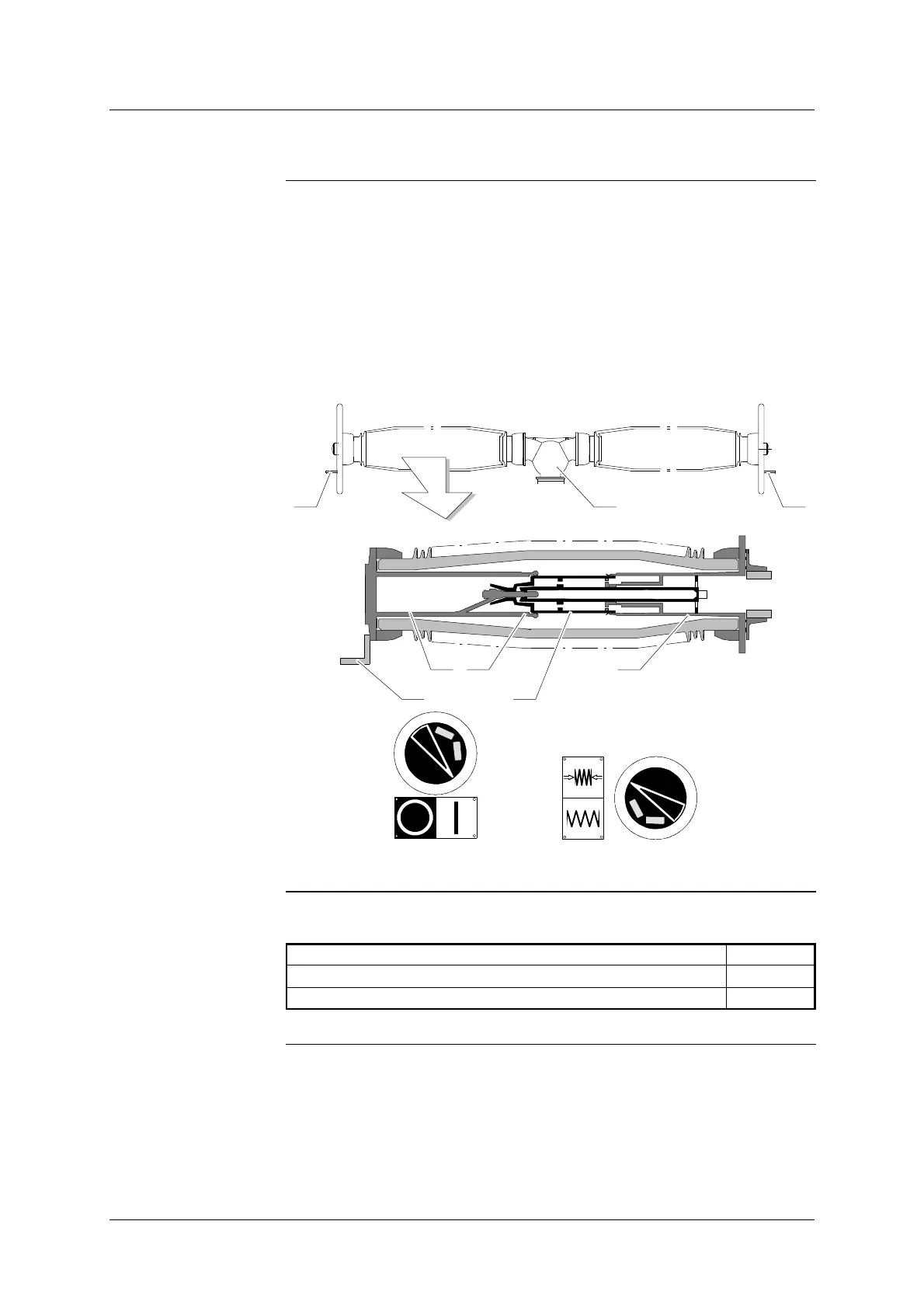

In “CLOSED” position the current passes through:
- the terminal (1),
- the fixed contact support (2),
- the main contacts (3),
- the moving contact (4),
- the moving contact support (5),
- the common housing (6),
and follows the opposite chain on the other chamber and the terminal (1).
11 6
2
53
1
4
CLOSING SPRING “LOADED”
RESORTE DE CIERRE ”ARMADO”
CIRCUIT- BREAKER “CLOSED”
In this module
This module contains the stages of the pole operation:
Stage Page
Opening 2
Closing 5
