Installation
Supporting frame assembly
GE Information L31- 140EN/03
3/8
02- 2017

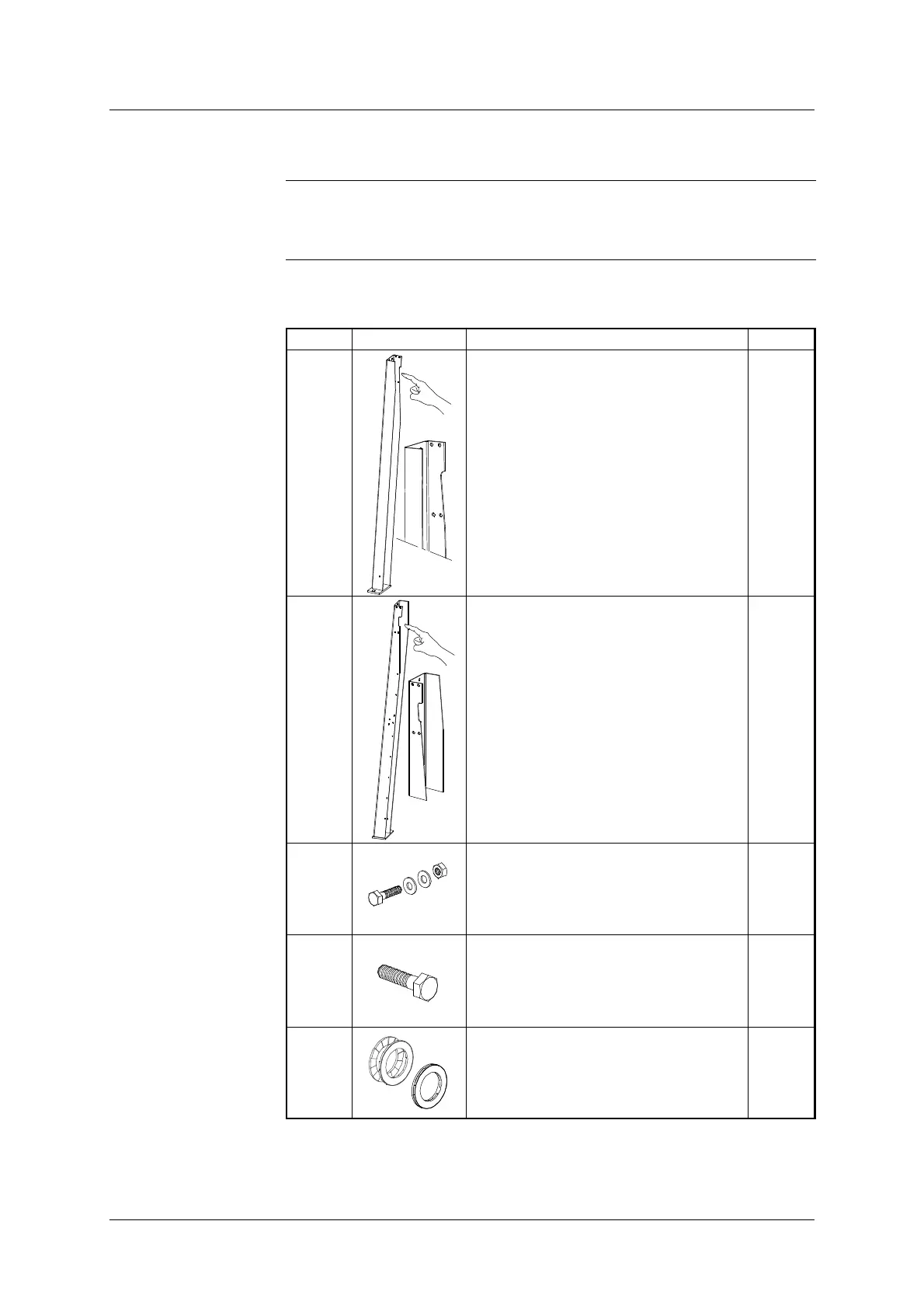

Support- frame components (per pole)
Introduction
If the support- frame is supplied by Grid Solutions, check the necessary
components to the assembling.
Necessary
components
List of the Grid Solutions components necessary for the assembling:
Mark Diagram Designation Number
(2) Support 2
(3) Support 2
(5)
Screws
H M16-45
1
(7)
Screws
H M16-35
16
(9)
W asher
NORDLOCK NL16 SS
16
Continued on next page.
To Next Page
