GE SF6 User Manual

Installation
Coupling of column and chambers
GE Information L31- 7138EN/02
3/16
11- 2016

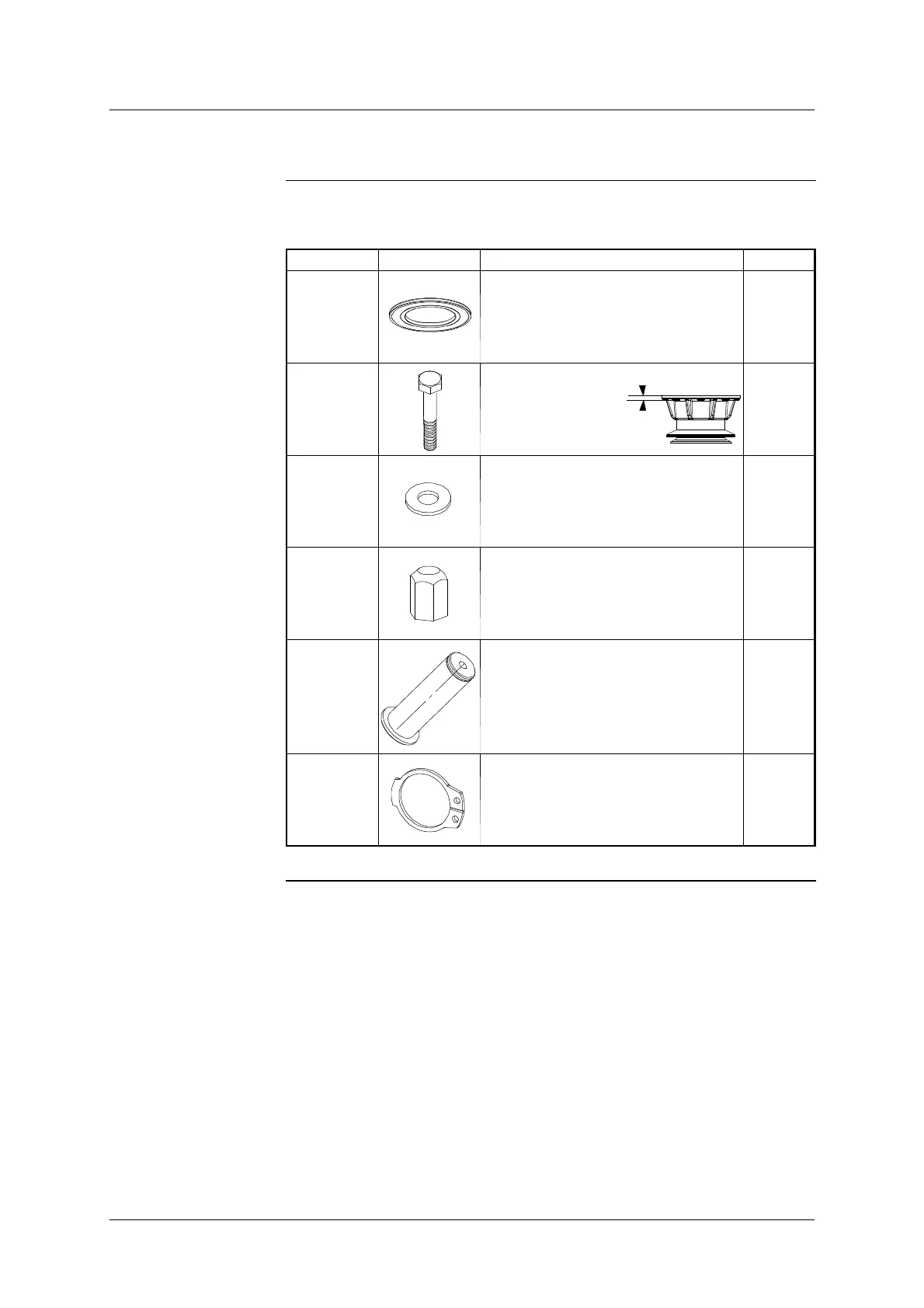

Preparing the elements required for the coupling operation
Elements required:
Grid Solutions
List of Grid Solutions items necessary for the operation:
Mark Illustration Description Quantity
(20) Seal 1
(21)
Screws
H M16- 65 (19 mm)
H M16- 75 (30 mm)
8
(22)
W asher
M16
16
(23) Nut 8
(24) Coupling pin 1
(25) Circlips 1
Continued on next page.
