Installation
Coupling of column and chambers
GE Information L31- 7138EN/02
10/16
11- 2016
Final coupling, continued
Fitting the seal
The table below shows the steps for fitting the seal:

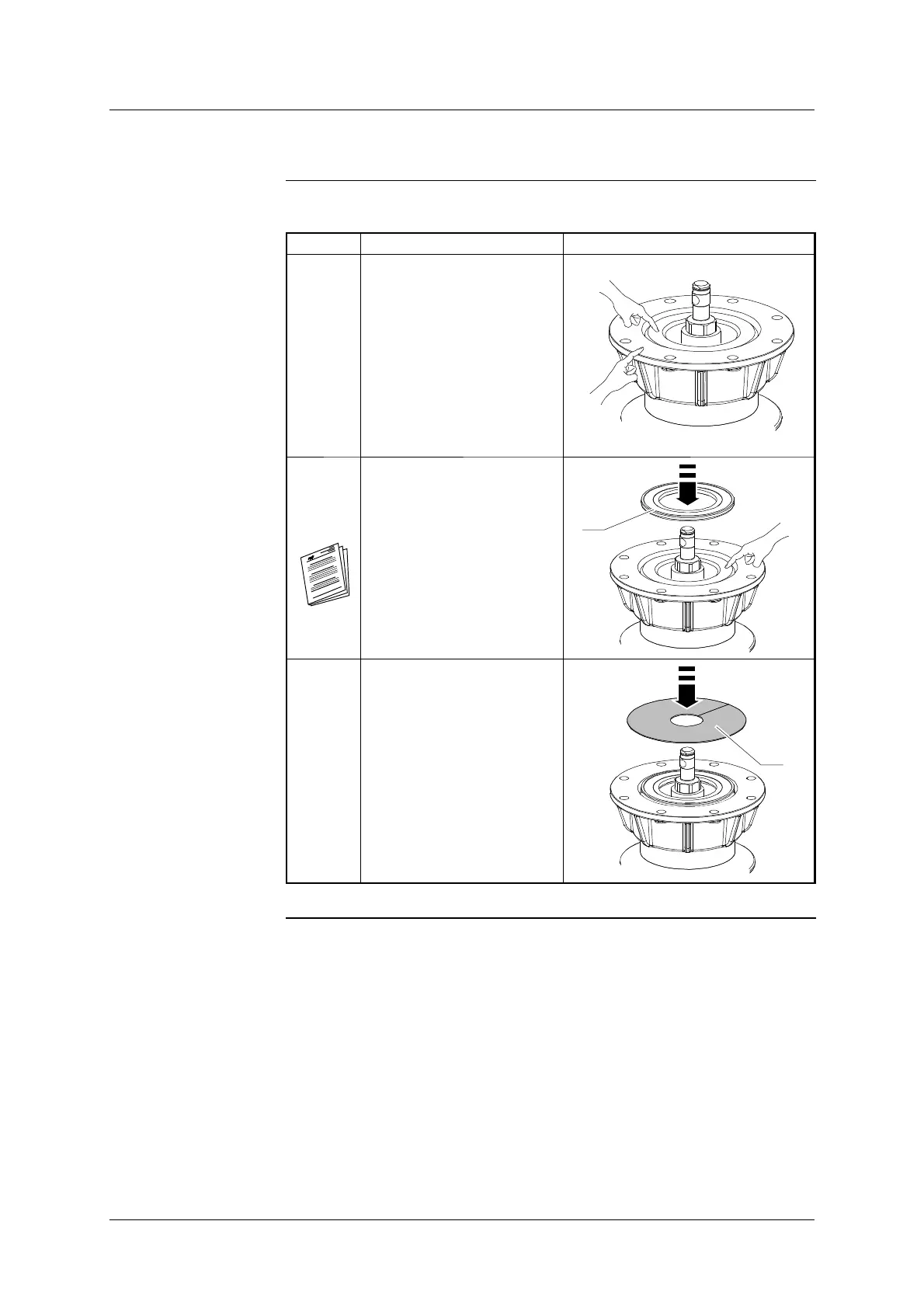

Step Action Illustration
1 Clean the contact surfaces
”A” and ”B” with ISOPRO-
PANOL.
Only coat surface ”B” with
MOLYKOTE M111 lubricant.
A
B
2 Fit a new seal (20) and place
it on surface ”A”, referring to
”Preparing and fitting
static seals”.
See module ’General
assembly procedures’.
20
A
3 Fit the protective cover (33).
33
Continued on next page.
