Installation
Coupling of column and chambers
GE Information L31- 7137EN/02
12/18
11- 2016
Final coupling, continued
Fitting the seal

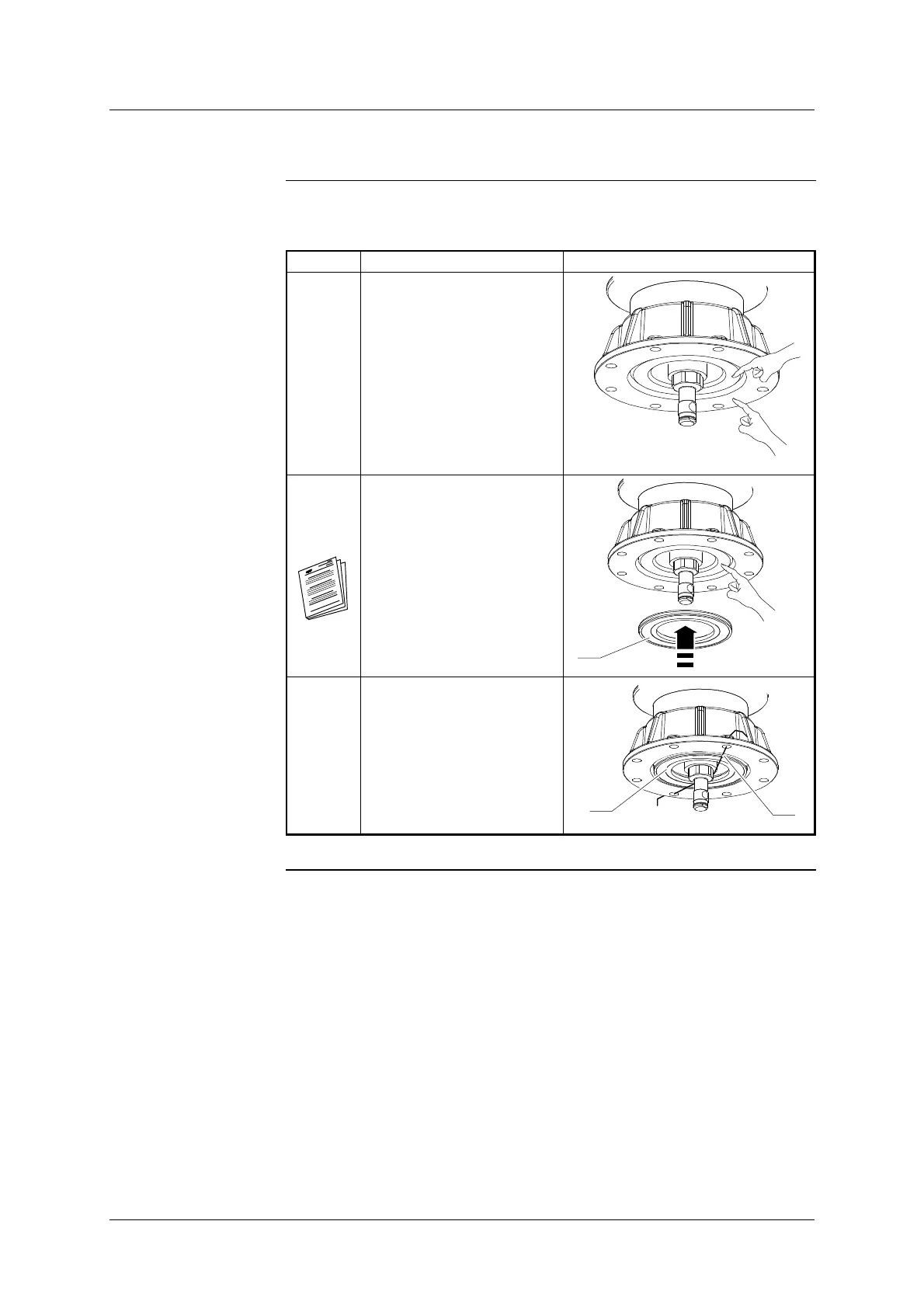

The table below shows the steps for fitting the seal:
Step Action Illustration
1 Clean the contact surfaces
A and B with ISOPRO-
PANOL.
Only coat surface ”B” with
MOLYKOTE M111 lubricant.
A
B
2 Fit a new seal (20) and place
it on surface A”, referring to
Preparing and fitting
static seals”.
See module ’General
assembly procedures’.
20
A
3 Temporarily fit a rigid cable
(36) to counter the effects of
the seal (20) coming apart
during the coupling process
20
36
