Installation
Installation of terminals
with p reparation o f con t act surfaces
GE Information L31- 731EN/04
3/4
11- 2016
Preparing the co n t act surfaces
Preparing the
contact grease
The contact grease is a mixture composed of Vaseline and Contactal grease.
CONTACT GREASE = 50% Vaseline + 50% Contactal grease
Preparing the
contact surfaces

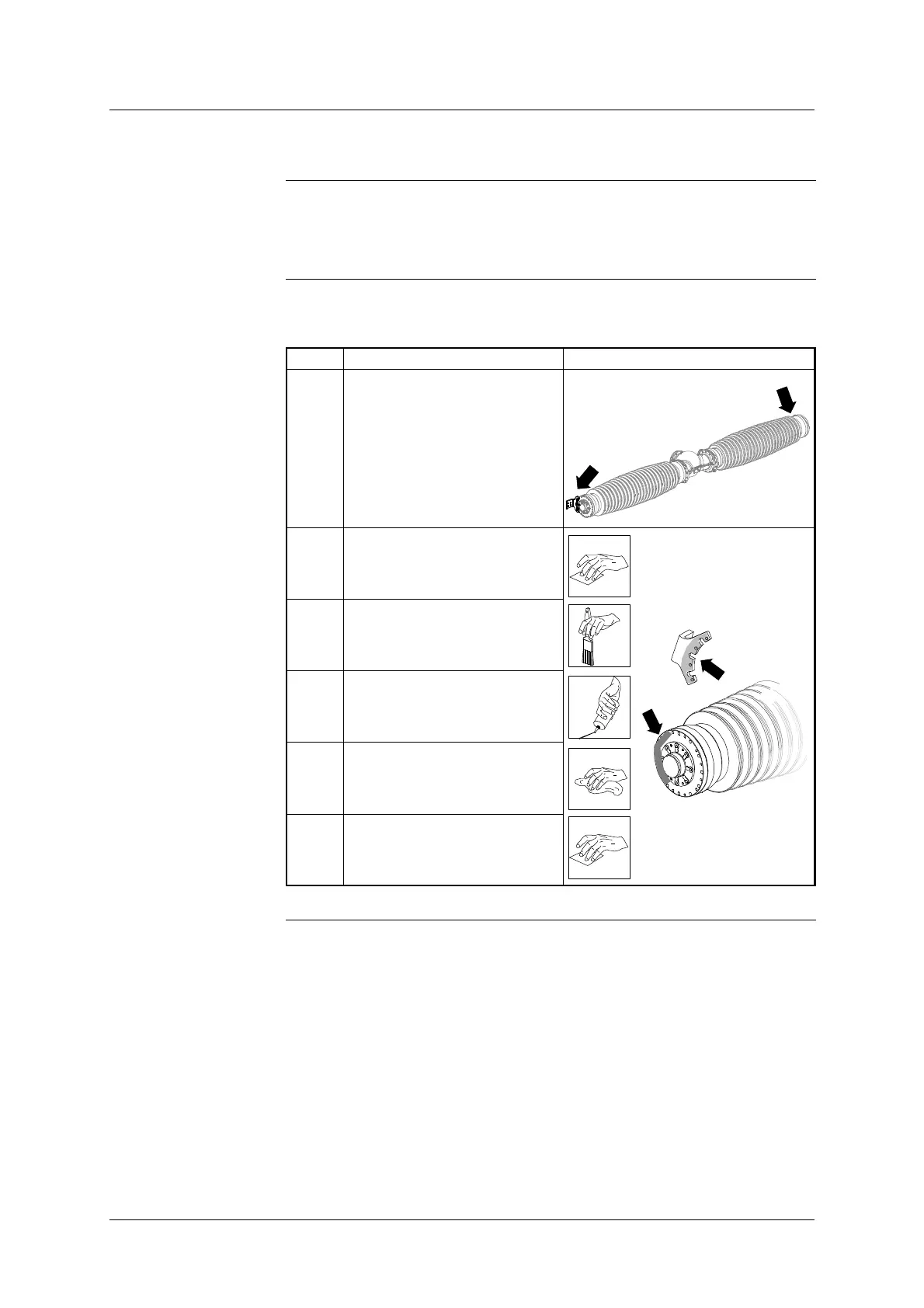

The table below gives the steps of preparing the contact surfaces :
Step Action Diagram
1
Remove the temporary screws
from the terminal pads X1 and
X2.
X1
X2
2 Dry rub with fine emery cloth.
3 Eliminate the dust produced.
4 Coat with CONTACT
GREASE.
5 Wipe with a clean rag, leaving
just a thin layer of grease.
6 Rub over the grease with
waterproof abrasive paper
A400.
