Installation
Installation of capacitors
GE Information L31- 741EN/05
4/4
01- 2017
Installing the capacitors
Process

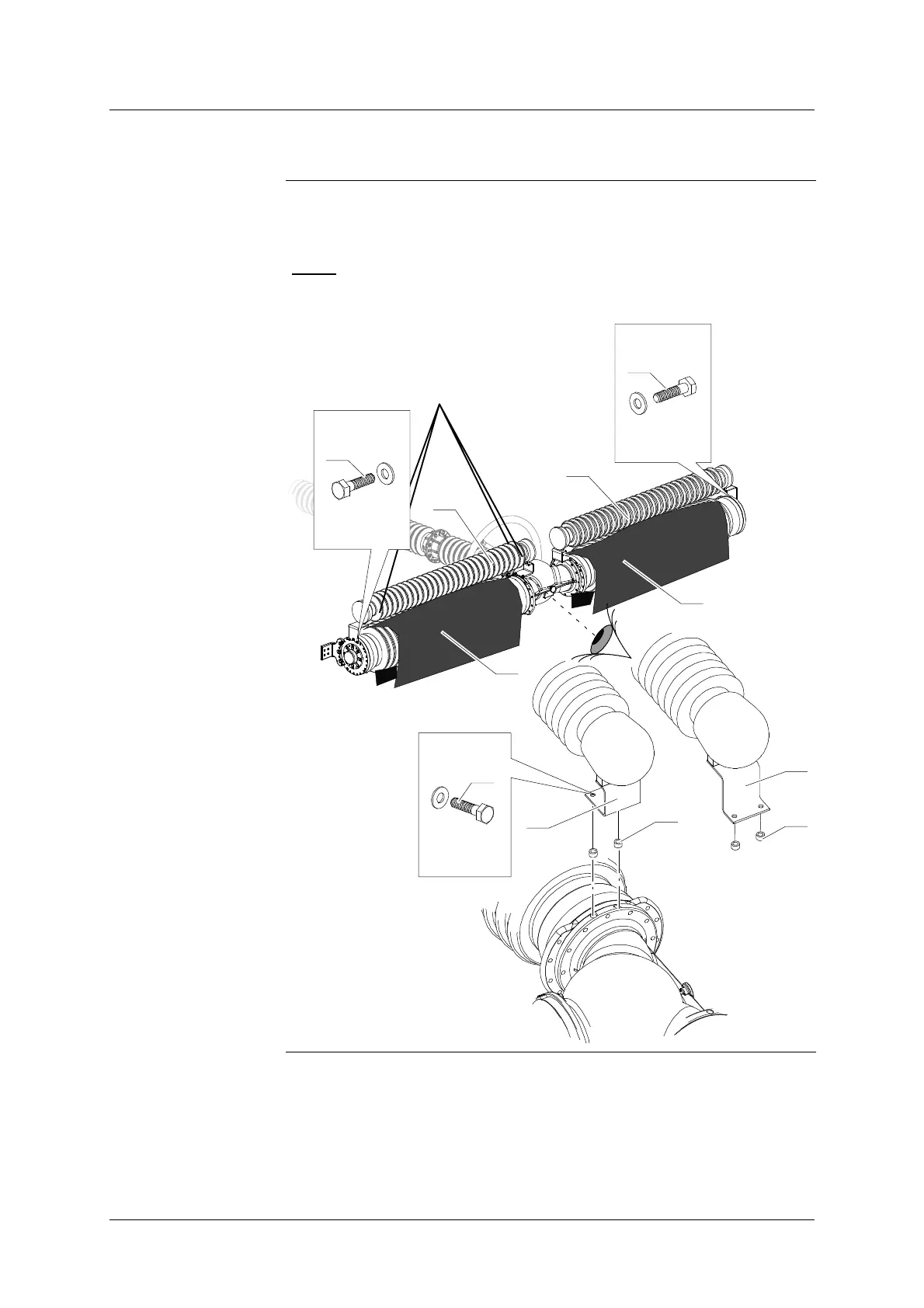

Install the capacitors (1) on the interrupting chambers (6) and (7) using the
screws (8) and (9).
NOTE
: Use the two spacers (10) to install the capacitors - capacitor
support (4) side.
10
x2
H M12- 45
5daN.m
8
x2
H M12- 25
5daN.m
9
4
10
4
x2
H M12- 25
5daN.m
9
1
1
7
6
