GE T2100-ST1 Service Manual

Troubleshooting
90 T2100-ST1 Treadmill, 110V / T2100-ST2 Treadmill, 220V 2097937-002 Rev G
11 March 2019

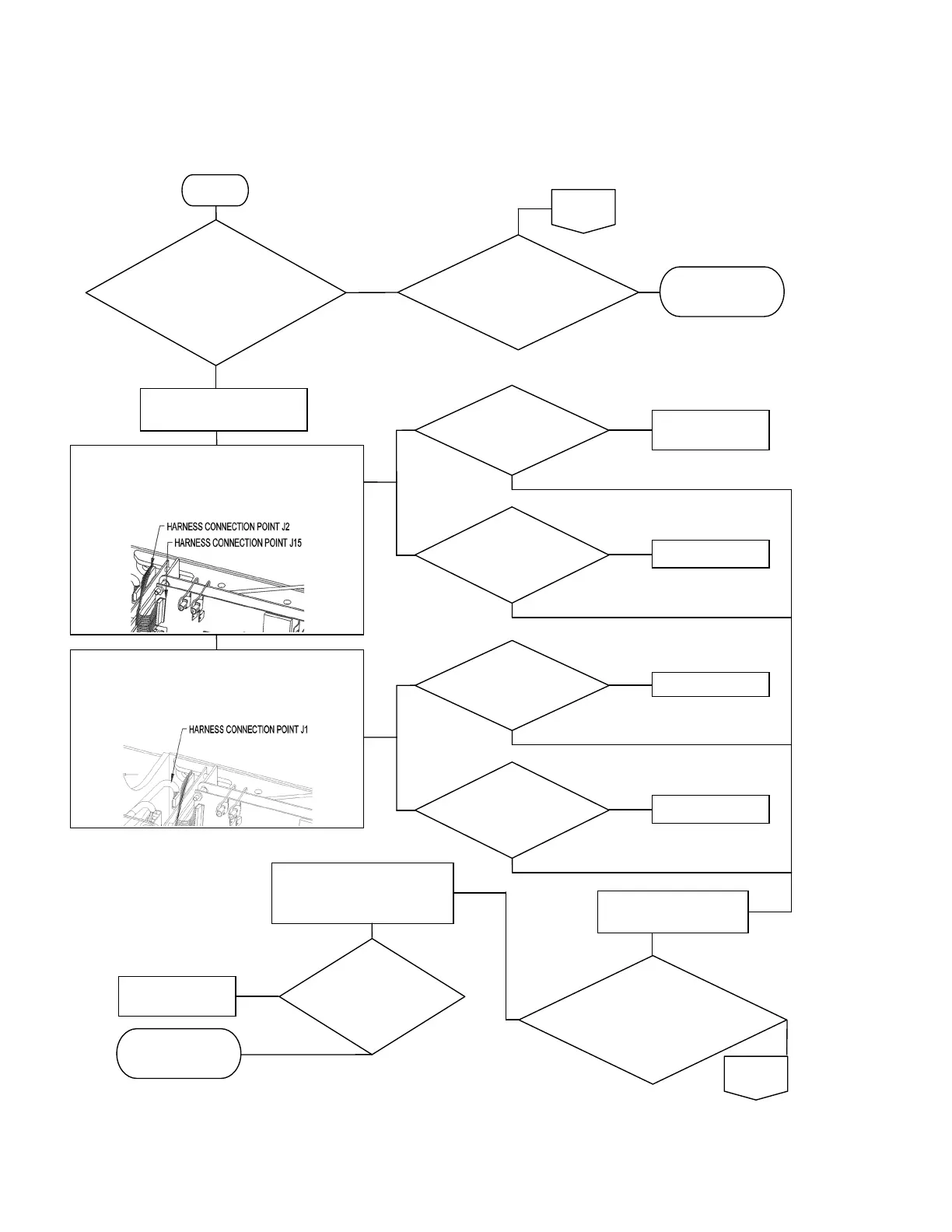

Smart Power Supply Error Code 3 Flow Chart 1L “Zero Speed
Motor Controller Error (3)”
1L
Is the Red LED D13
flashing 3 times with 4
second pause on the
Smart Power Supply
PCBLF0443-
1?
No
Yes
Turn the treadmill power
switch OFF (O).
Is the Red LED D13 on
the Smart Power
Supply PCBLF0443-1
on continuously?
Yes
No
Is the Red LED D13
flashing on the Smart
Power Supply
PCBLF0443-1 ?
Yes
Treadmill should
be operational.
No
Send a Start Belt Command or
Press Start if equipped with
controller.
Did the
running belt
start?
Return Treadmill
to service.
Replace Drive
PC2303-012-N
Yes
No
Verify the harness between Drive PC2303-012-N
and Smart Power Supply PCBLF0443
-1 is properly
connected and not damaged.
Was the harness
damaged?
Turn the treadmill
power switch ON (-).
Was the harness
properly
connected?
Replace Harness
10 Pin Harness
Yes
No
Connect harness.
Verify the harness between Motor PMC5FA-
00101-03 and Drive PC2303-012-N is properly
connected and not damaged.
No
Yes
Was the harness
damaged?
Was the harness
properly
connected?
Replace Motor
Yes
No
Connect harness.
No
Yes
Go To
Page 1I
Go To
Page 1I
