Product Description and Specifications
1–3
Connectors
WARNING: When you connect equipment to the monitor, you are
configuring a medical system and are responsible for ensuring that the
system complies with IEC 60601–1–1 and with local requirements. Connect
only external devices specified for use with the monitor.
WARNING: Use only sensors and cables authorized for use with this monitor.
Failure to do so may cause interference with the measurement or result in
increased emissions, decreased immunity, or damage to the equipment or
system.

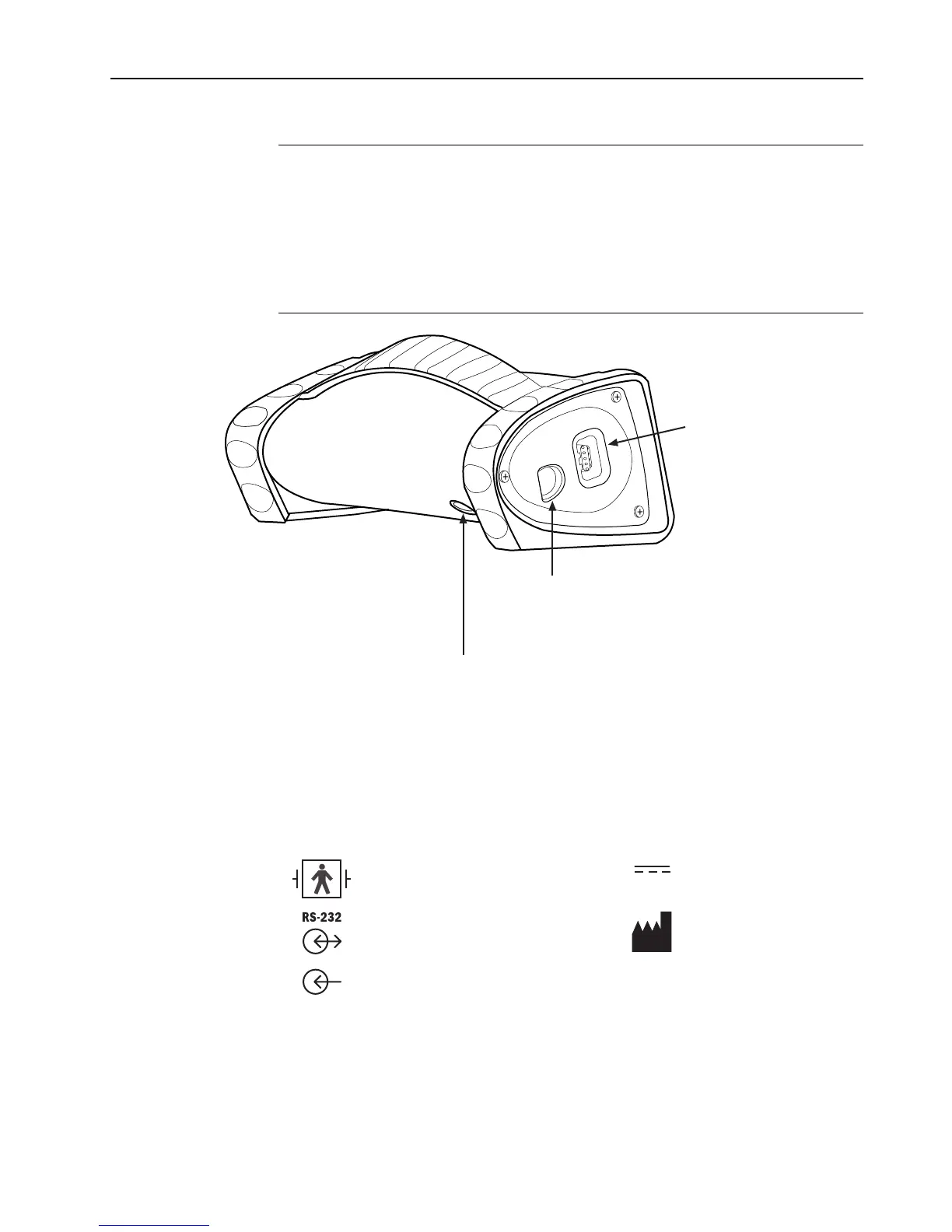

Figure 1-2. Monitor connectors
Information label and symbols
A label on the underside of the monitor contains the model number, serial number,
date of manufacture, and other information about the monitor. The following
symbols also appear on this label and/or on the packaging for the monitor:
Sensor connector; defibrillation-
proof type BF applied part
DC current
RS-232 connector for the Trend
Download option
Manufacturer
Power supply connector;
external power in
Other symbols on the monitor or the screen are described in the TruSat User’s Guide.
Sensor connector
Connect an OxyTip+ sensor
or cable only.
Trend Download connector (RS-232)
Connect the TruSat/PC RS-232 cable or the
TruSat/serial printer cable.
Power connector
Plug the power supply cable into this connector. Then, plug the
power cord into the power supply and into the AC power outlet.
