4-8 L60 Line Phase Comparison System GE Multilin
4.2 EXTENDED ENERVISTA UR SETUP FEATURES 4 HUMAN INTERFACES
4
4. Verify one more time that you wish to remove the template by clicking Yes.
The EnerVista software will remove all template information and all settings will be available.
4.2.2 SECURING AND LOCKING FLEXLOGIC™ EQUATIONS
The UR allows users to secure parts or all of a FlexLogic™ equation, preventing unauthorized viewing or modification of
critical FlexLogic™ applications. This is accomplished using the settings template feature to lock individual entries within
FlexLogic™ equations.
Secured FlexLogic™ equations will remain secure when files are sent to and retrieved from any UR-series device.
a) LOCKING FLEXLOGIC™ EQUATION ENTRIES
The following procedure describes how to lock individual entries of a FlexLogic™ equation.
1. Right-click the settings file or online device and select the Template Mode > Create Template item to enable the set-
tings template feature.
2. Select the FlexLogic > FlexLogic Equation Editor settings menu item.
By default, all FlexLogic™ entries are specified as viewable and displayed against a yellow background. The icon on
the upper right of the window will also indicate that EnerVista UR Setup is in EDIT mode.
3. Specify which entries to lock by clicking on them.
The locked entries will be displayed against a grey background as shown in the example below.

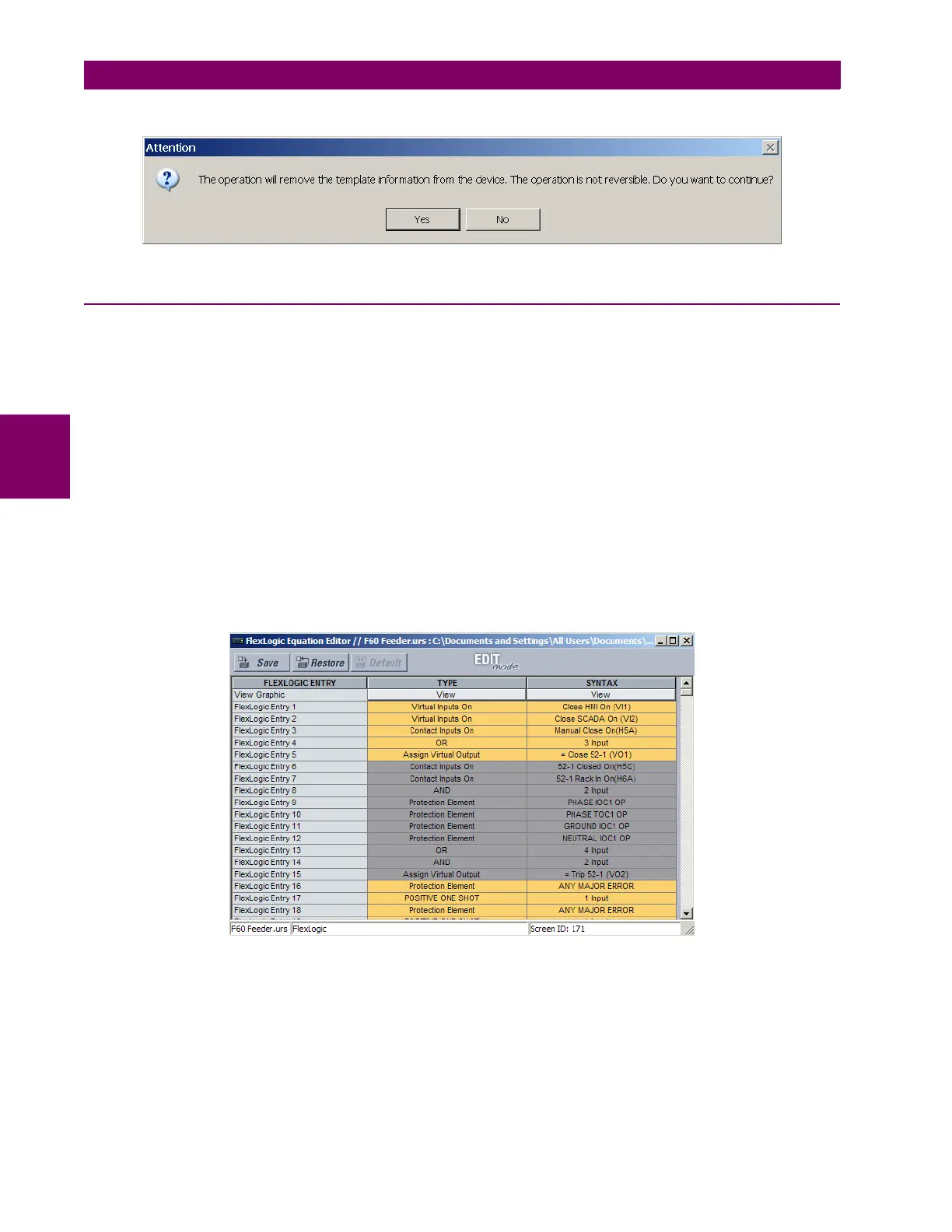

Figure 4–7: LOCKING FLEXLOGIC™ ENTRIES IN EDIT MODE
4. Click on Save to save and apply changes to the settings template.
5. Select the Template Mode > View In Template Mode option to view the template.
6. Apply a password to the template then click OK to secure the FlexLogic™ equation.
