GE Multilin L60 Line Phase Comparison System 4-19
4 HUMAN INTERFACES 4.3 FACEPLATE INTERFACE
4

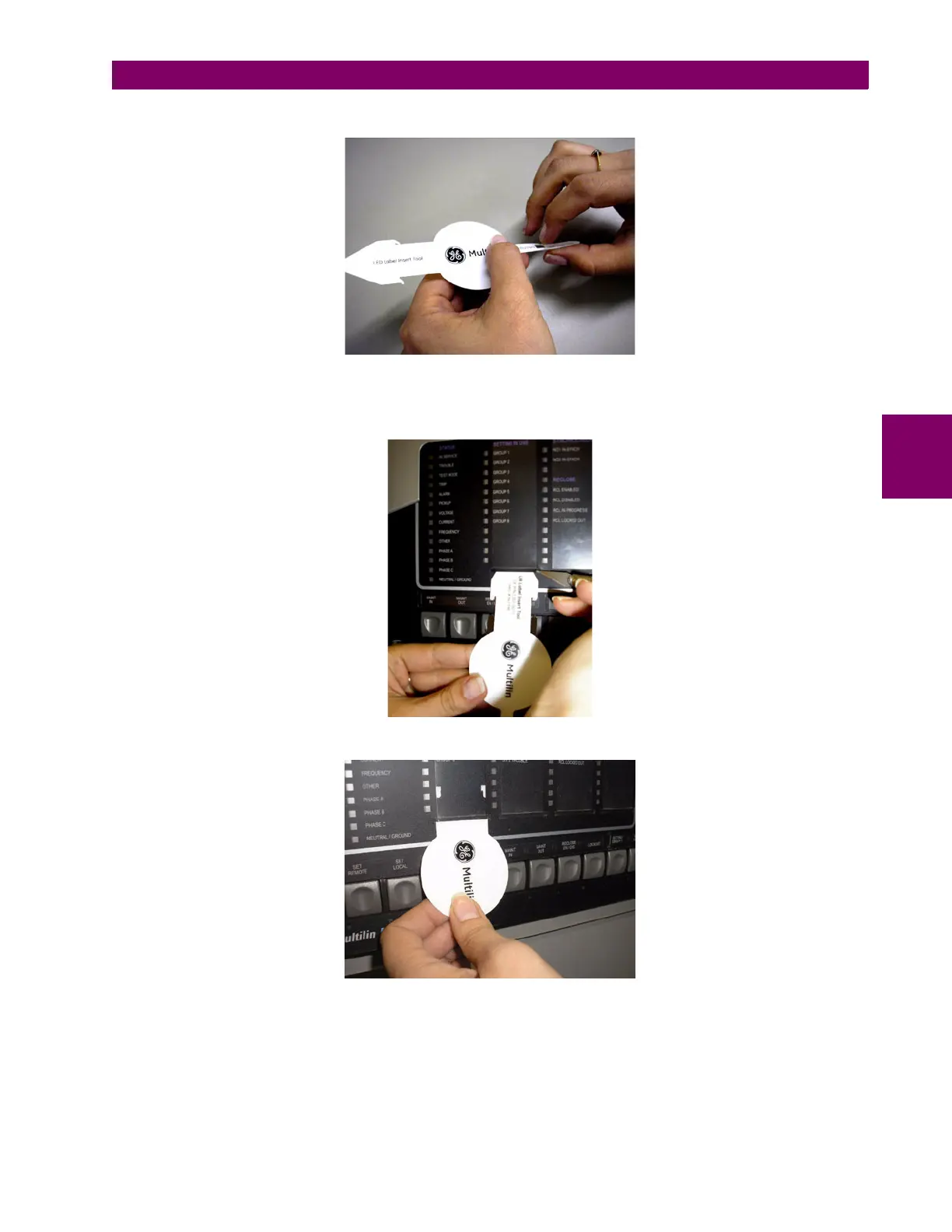

2. Bend the tab at the center of the tool tail as shown below.
The following procedure describes how to remove the LED labels from the L60 enhanced front panel and insert the custom
labels.
1. Use the knife to lift the LED label and slide the label tool underneath. Make sure the bent tabs are pointing away from
the relay.
2. Slide the label tool under the LED label until the tabs snap out as shown below. This will attach the label tool to the LED
label.
