4-22 L60 Line Phase Comparison System GE Multilin
4.3 FACEPLATE INTERFACE 4 HUMAN INTERFACES
4

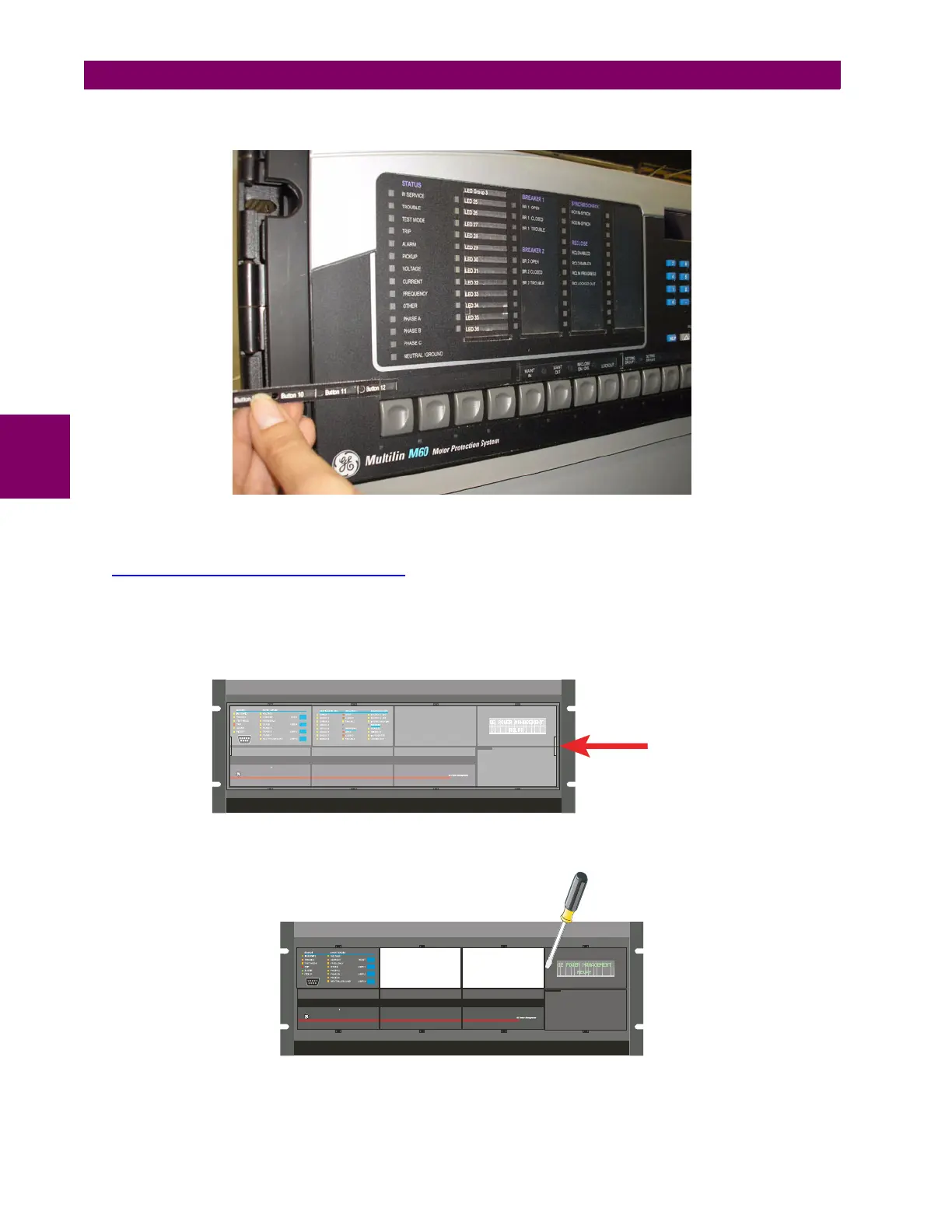

4. Slide the new user-programmable pushbutton label inside the pocket until the text is properly aligned with the buttons,
as shown below.
b) STANDARD FACEPLATE
Custom labeling of an LED-only panel is facilitated through a Microsoft Word file available from the following URL:
http://www.GEindustrial.com/multilin/support/ur/
This file provides templates and instructions for creating appropriate labeling for the LED panel. The following procedures
are contained in the downloadable file. The panel templates provide relative LED locations and located example text (x)
edit boxes. The following procedure demonstrates how to install/uninstall the custom panel labeling.
1. Remove the clear Lexan Front Cover (GE Multilin part number: 1501-0014).
2. Pop out the LED module and/or the blank module with a screwdriver as shown below. Be careful not to damage the
plastic covers.
3. Place the left side of the customized module back to the front panel frame, then snap back the right side.
4. Put the clear Lexan front cover back into place.
Push in
and gently lift
up the cover.
F60 FEEDER MANAGEMENT RELAYF60 FEEDER MANAGEMENT RELAYF60 FEEDER MANAGEMENT RELAYF60 FEEDER MANAGEMENT RELAY
R
842771A1.CDR
F60 FEEDER MANAGEMENT RELAY
( LED MODULE ) ( BLANK MODULE )
R
842722A1.CDR
