3-2 L60 Line Phase Comparison System GE Multilin
3.1 DESCRIPTION 3 HARDWARE
3
Figure 3–2: L60 HORIZONTAL MOUNTING (ENHANCED PANEL)

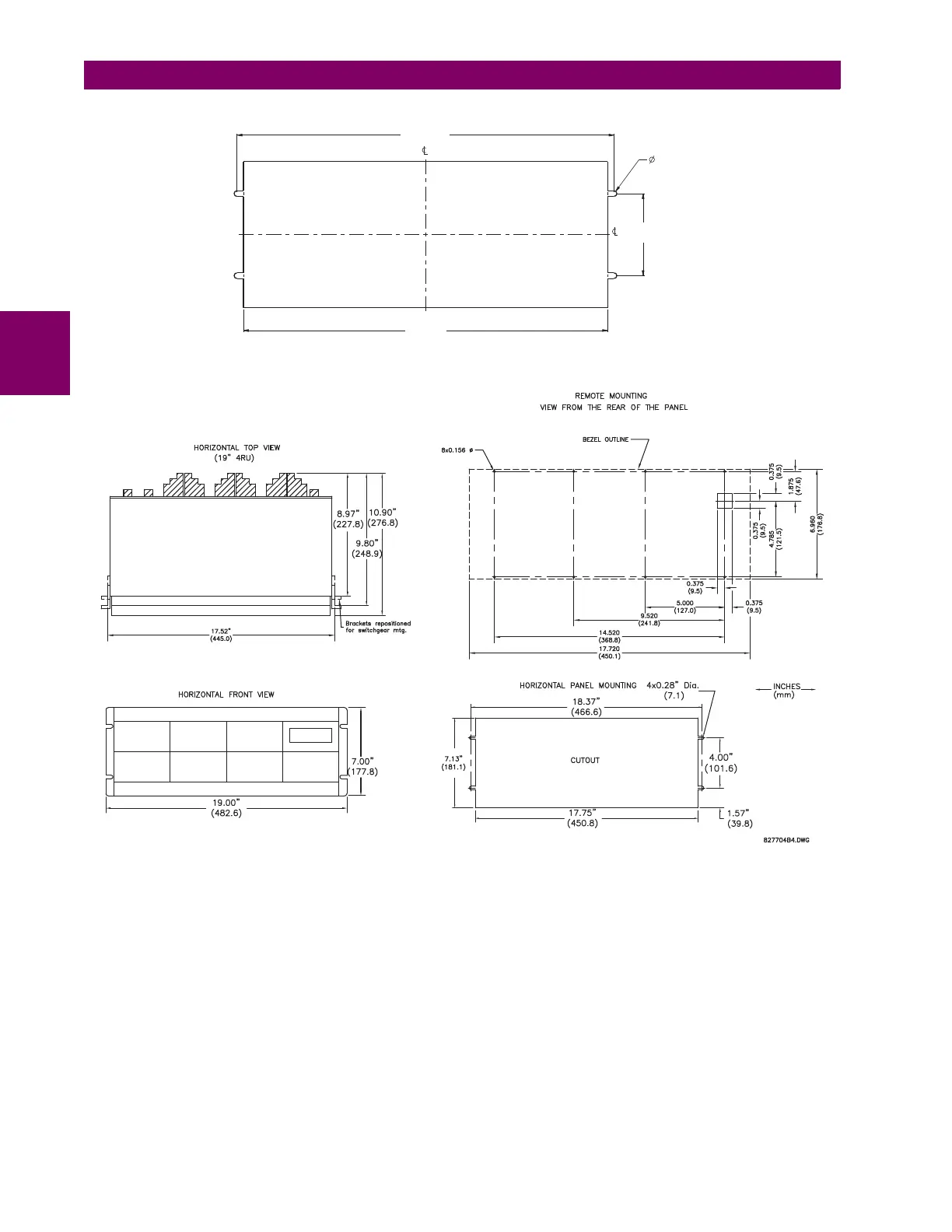

Figure 3–3: L60 HORIZONTAL MOUNTING AND DIMENSIONS (STANDARD PANEL)
b) VERTICAL UNITS
The L60 Line Phase Comparison System is available as a reduced size (¾) vertical mount unit, with a removable faceplate.
The faceplate can be specified as either standard or enhanced at the time of ordering. The enhanced faceplate contains
additional user-programmable pushbuttons and LED indicators.
The modular design allows the relay to be easily upgraded or repaired by a qualified service person. The faceplate is
hinged to allow easy access to the removable modules, and is itself removable to allow mounting on doors with limited rear
depth. There is also a removable dust cover that fits over the faceplate, which must be removed when attempting to access
the keypad or RS232 communications port.
The case dimensions are shown below, along with panel cutout details for panel mounting. When planning the location of
your panel cutout, ensure that provision is made for the faceplate to swing open without interference to or from adjacent
equipment.
18.370”
[466,60 mm]
842808A1.CDR
0.280”
[7,11 mm]
Typ.x4
4.000”
[101,60 mm]
17.750”
[450,85 mm]
CUT-OUT
