3-4 L60 Line Phase Comparison System GE Multilin
3.1 DESCRIPTION 3 HARDWARE
3

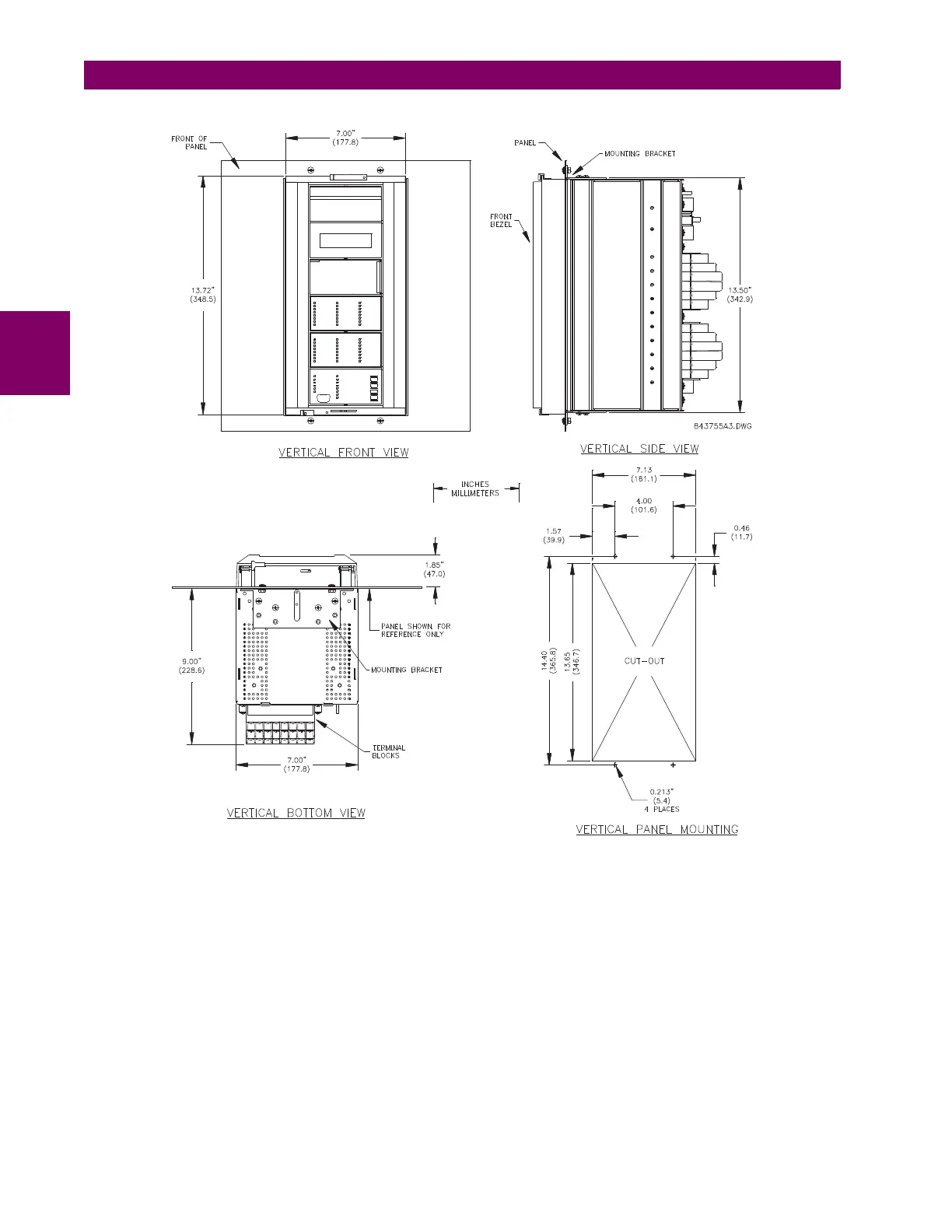

Figure 3–5: L60 VERTICAL MOUNTING AND DIMENSIONS (STANDARD PANEL)
For details on side mounting L60 devices with the enhanced front panel, refer to the following documents available online
from the GE Multilin website.
• GEK-113180: UR-series UR-V side-mounting front panel assembly instructions.
• GEK-113181: Connecting the side-mounted UR-V enhanced front panel to a vertical UR-series device.
• GEK-113182: Connecting the side-mounted UR-V enhanced front panel to a vertically-mounted horizontal UR-series
device.
For details on side mounting L60 devices with the standard front panel, refer to the figures below.
