The DataTypeTemplates node defines instantiable logical node types. A logical node type is an instantiable template of the
data of a logical node. A LnodeType is referenced each time that this instantiable type is needed with an IED. A logical
node type template is built from DATA (DO) elements, which again have a DO type, which is derived from the DATA classes
(CDC). DOs consist of attributes (DA) or of elements of already defined DO types (SDO). The attribute (DA) has a func-
tional constraint, and can either have a basic type, be an enumeration, or a structure of a DAType. The DAType is built from
BDA elements, defining the structure elements, which again can be BDA elements of have a base type such as DA.

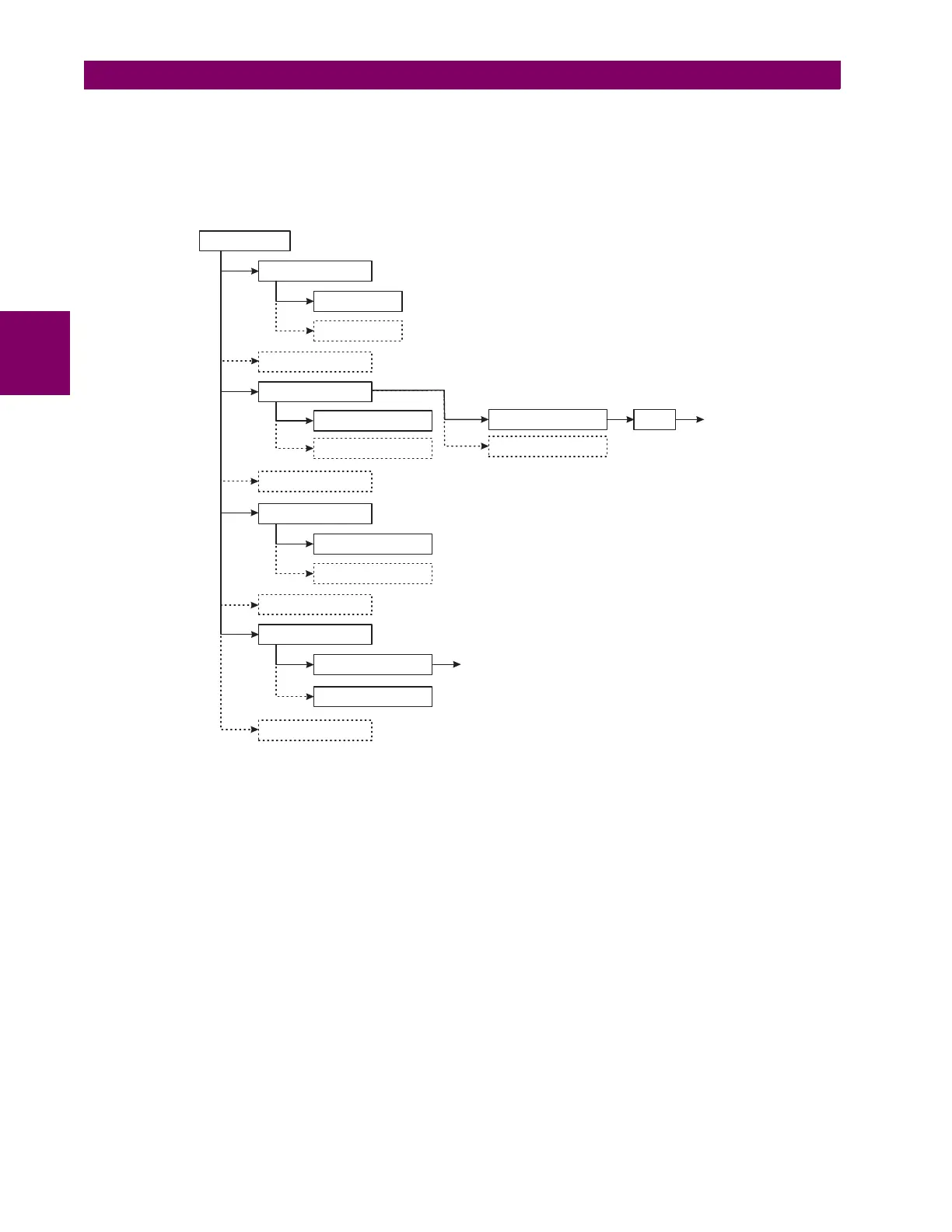

Figure 0–5: ICD FILE STRUCTURE, DATATYPETEMPLATES NODE
842798A1.CDR
DataTypeTemplates
LNodeType (id, InClass)
DO (name, type)
Other LNodeType elements
Other DO elements
DOType (id, cdc)
DA (name, fc, bType, type)
Other DOType elementsOther
DOType elements
Other DA elements
DAType (id)
BDA (name, bType, type)
Other DAType elementsOther
DAType elements
Other BDA elementsOther
BDA elements
EnumType (id)
EnumVal (ord)
Other EnumType elements
Other EnumVal elements
Text
Val
Text
SDO (name, type)
Other SDO elements
