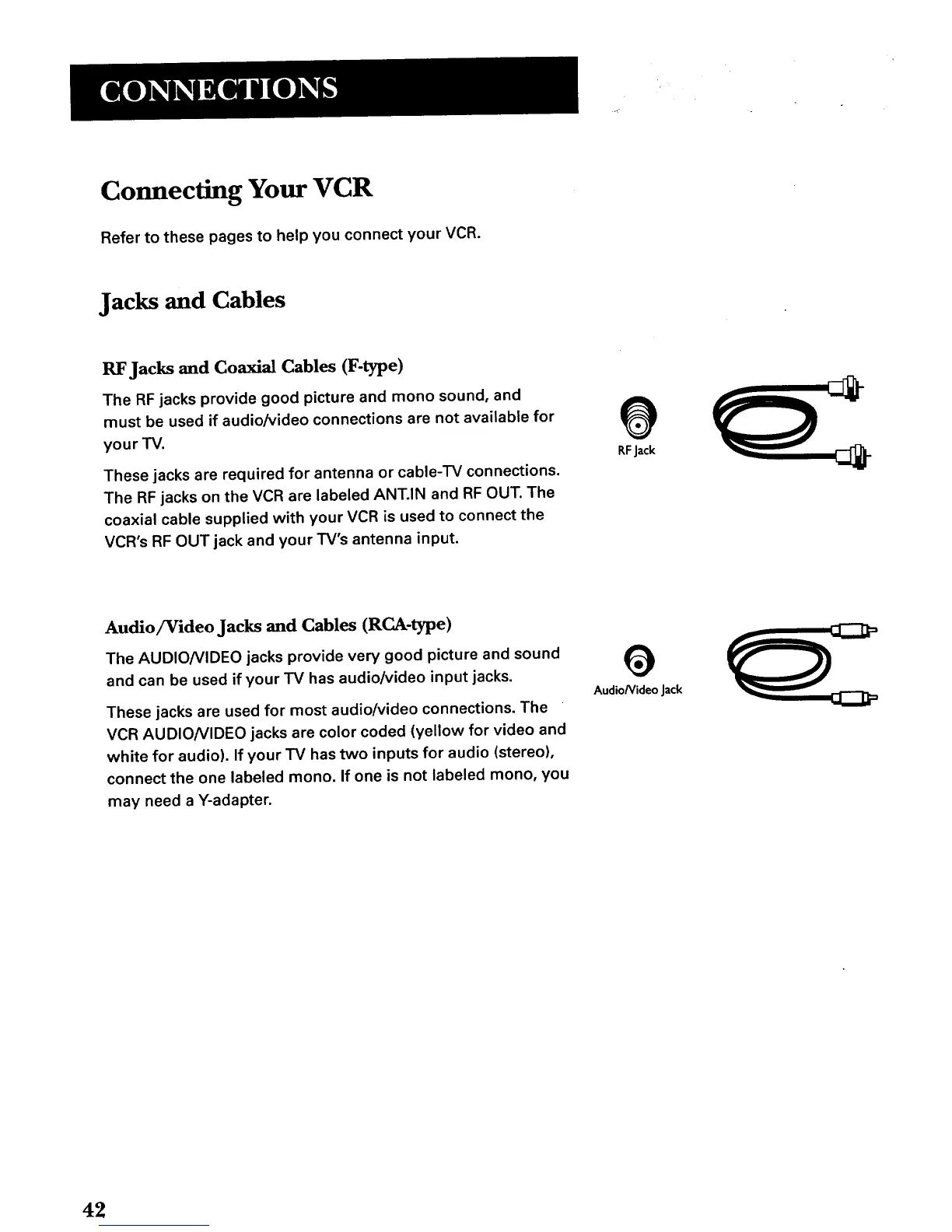

Connecting Your VCR
Refer to these pages to help you connect your VCR.
Jacks and Cables
RF Jacks and Coaxial Cables (F-type)
The RF jacks provide good picture and mono sound, and
must be used if audio/video connections are not available for
your TV.
These jacks are required for antenna or cable-TV connections.
The RF jacks on the VCR are labeled ANT.IN and RF OUT. The
coaxial cable supplied with your VCR is used to connect the
VCR's RF OUT jack and your "l'V'santenna input.
O
RFJack
Audio/Video Jacks and Cables (RCA-type)
The AUDIONIDEO jacks provide very good picture and sound
and can be used if your TV has audio/video input jacks.
These jacks are used for most audio/video connections. The
VCR AUDIO]VIDEO jacks are color coded (yellow for video and
white for audio). If your "IV has two inputs for audio (stereo),
connect the one labeled mono. If one is not labeled mono, you
may need a Y-adapter.
O
Audio/Video Jack
42
