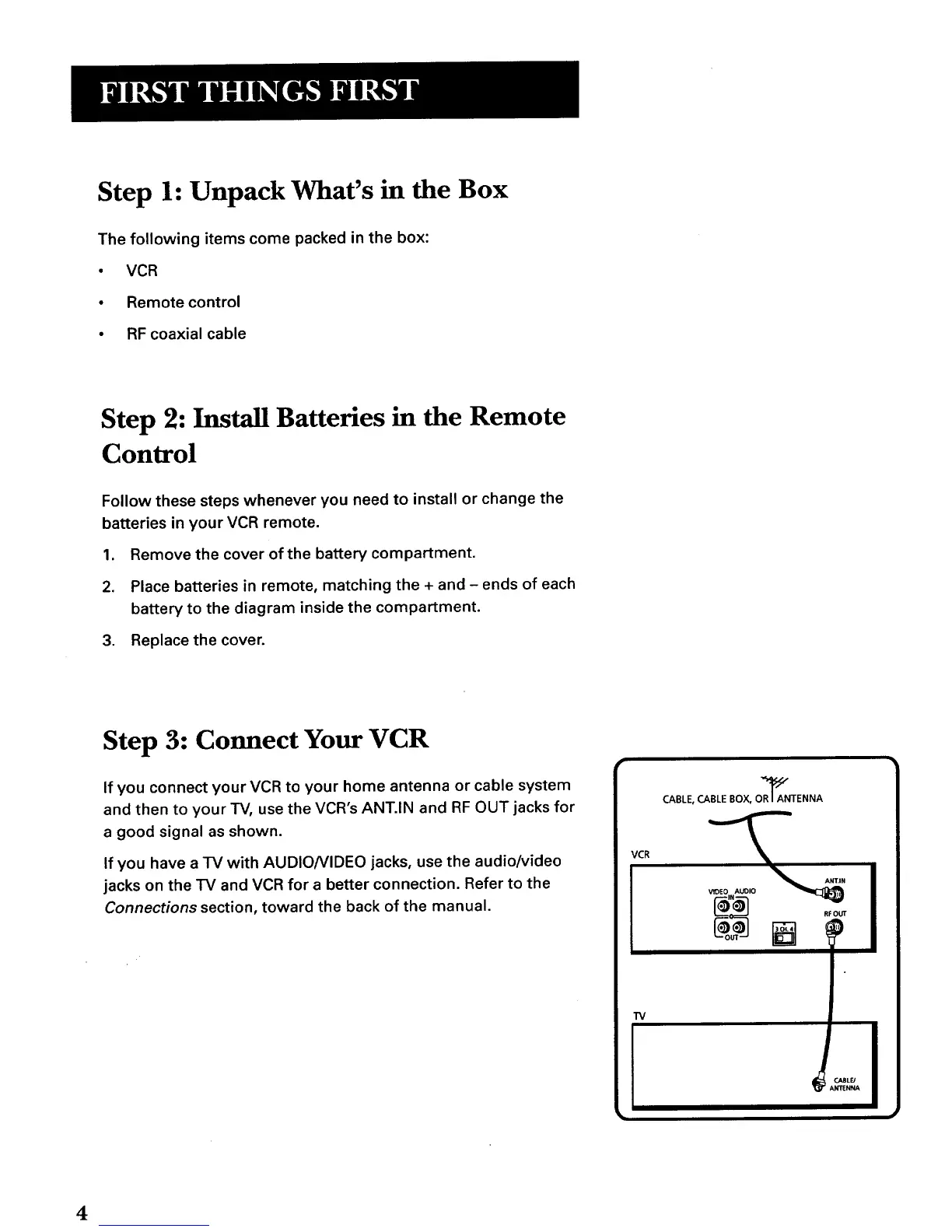

Step 1: Unpack What's in the Box
The following items come packed in the box:
• VCR
• Remote control
• RF coaxial cable
Step 2: Install Batteries in the Remote
Control
Follow these steps whenever you need to install or change the
batteries in your VCR remote.
1. Remove the cover of the battery compartment.
2. Place batteries in remote, matching the + and - ends of each
battery to the diagram inside the compartment.
3. Replace the cover.
Step 3: Connect Your VCR
If you connect your VCR to your home antenna or cable system
and then to your TV, use the VCR's ANT.IN and RF OUT jacks for
a good signal as shown.
If you have a TV with AUDIO/VIDEO jacks, use the audio/video
jacks on the TV and VCR for a better connection. Refer to the
Connections section, toward the back of the manual.
VCR
CABLE, CABLE BOX, OR_ANTENNA
_ RFOUT
"IV
4
