Using Vscan Air CL
5-14 Vscan Air – User Manual
Direction GP092020-1EN
Rev 18
To change the preset and probe
1. Slide from left to right or tap the preset icon on the leftmost
top corner of the scan screen.
All presets available for Vscan Air CL are displayed.
Presets are grouped according to the deep scanning
(Curved array) and shallow scanning (Linear array) ability of
the Vscan Air CL.

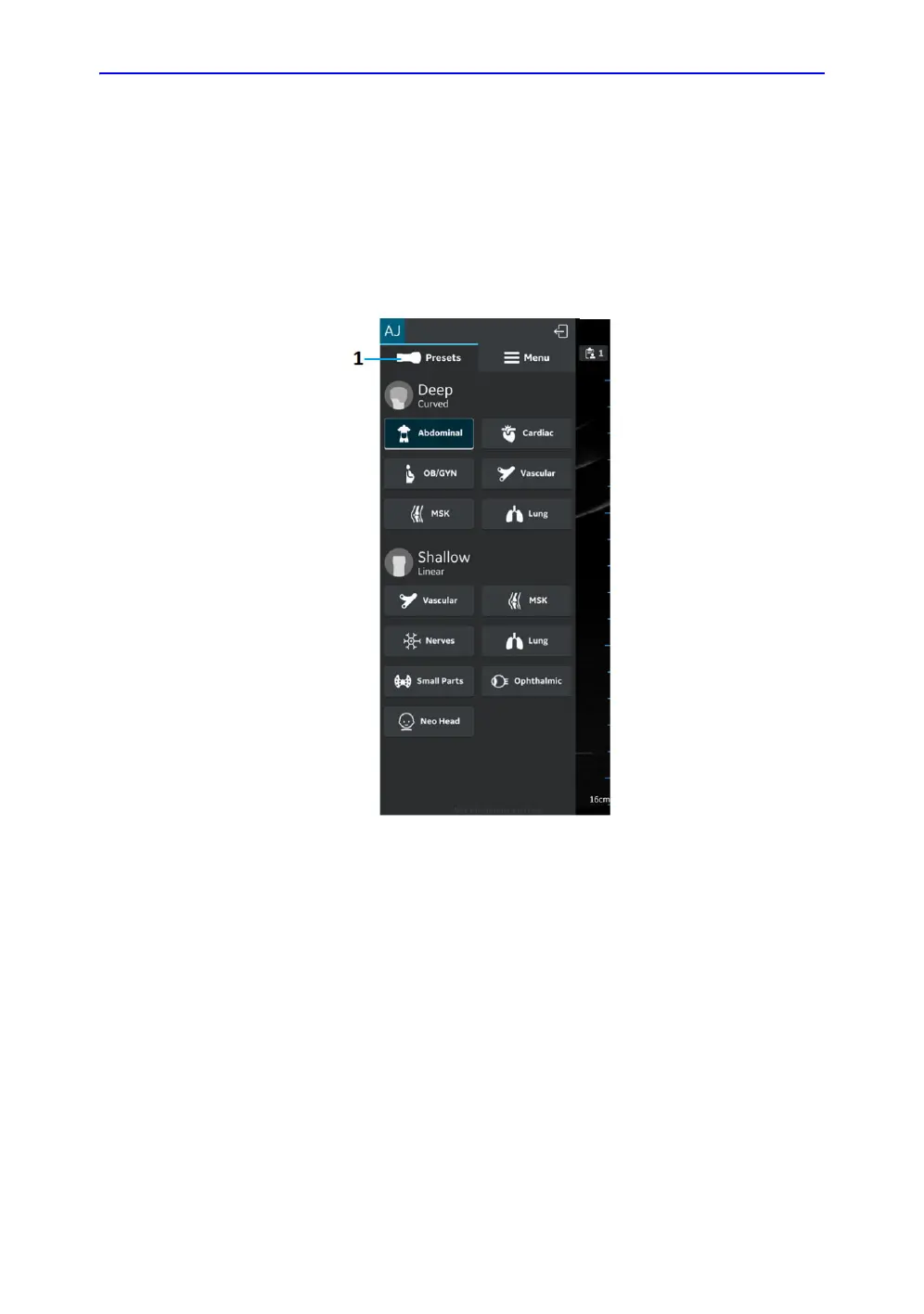

Figure 5-7. Preset menu
2. Select the desired preset.
The preset selected automatically activates the transducer
for that preset.
3. To change the preset, swipe from left to right again. Choose
the desired preset.
4. Selected preset is highlighted in blue.
1. Presets
