Measurements
Taking measurements
Vscan Air app enables two types of measurements with the
Vscan Air CL probe - distance and ellipse, on frozen images in
both black and white and color imaging. Up to four distance
measurements can be performed on an image. Measurements
can be done during image review or on recalled stored images.
To perform a distance measurement:
1. On a frozen image, press Measure.
The measurement calipers displays 'Distance' and 'Ellipse'
measurements options with the distance calipers being
activated by default.

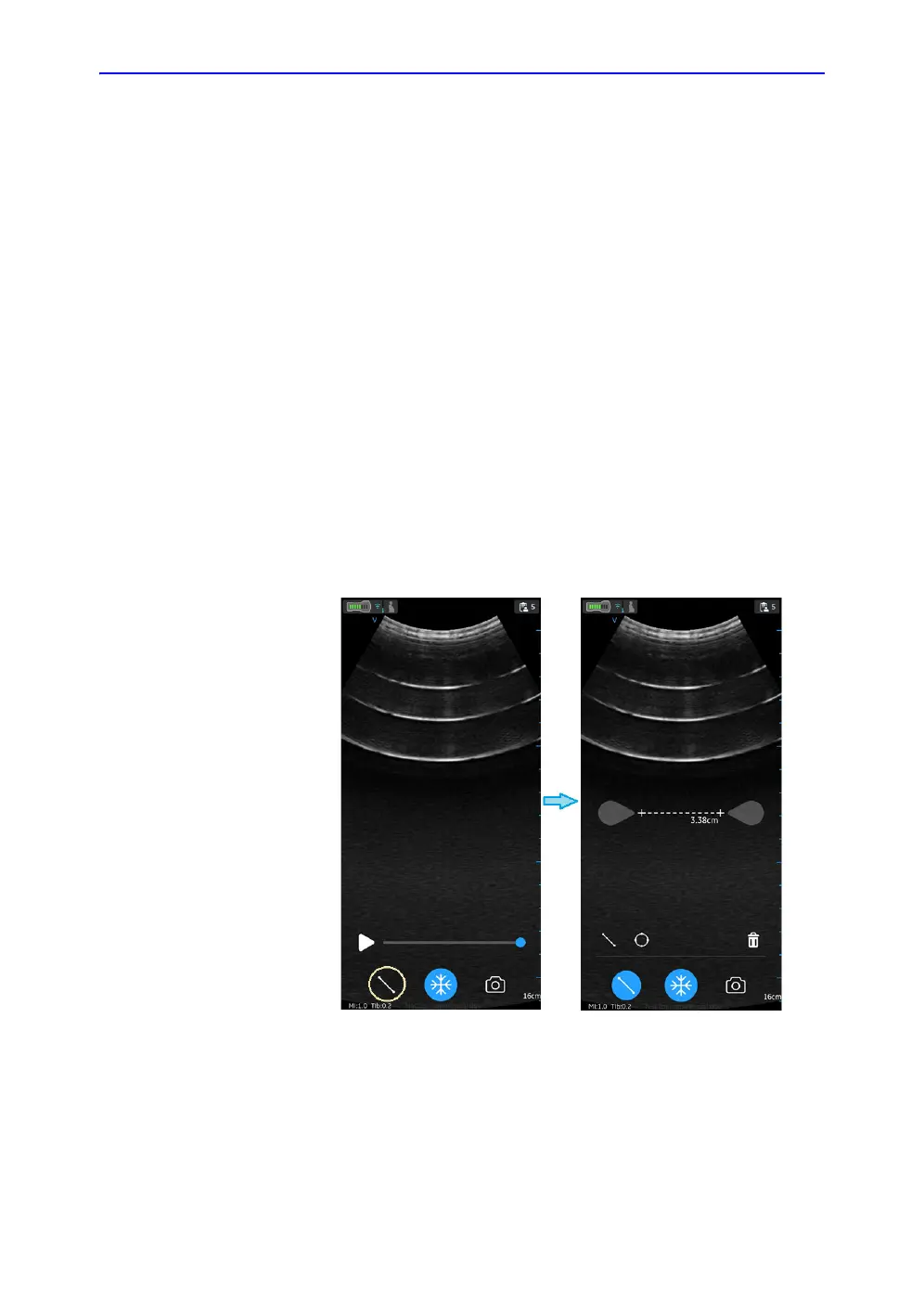

Figure 5-42. Select measurement
