Using Vscan Air CL
5-16 Vscan Air – User Manual
Direction GP092020-1EN
Rev 18
Black/white imaging (B-mode)
NOTE: Scanning does not start if the Vscan Air CL is not connected to a
Vscan Air app.
Black and white imaging is intended to provide two-dimensional
images and measurement capabilities concerning the
anatomical structure of soft tissue.
Black and white imaging is the default scanning mode.

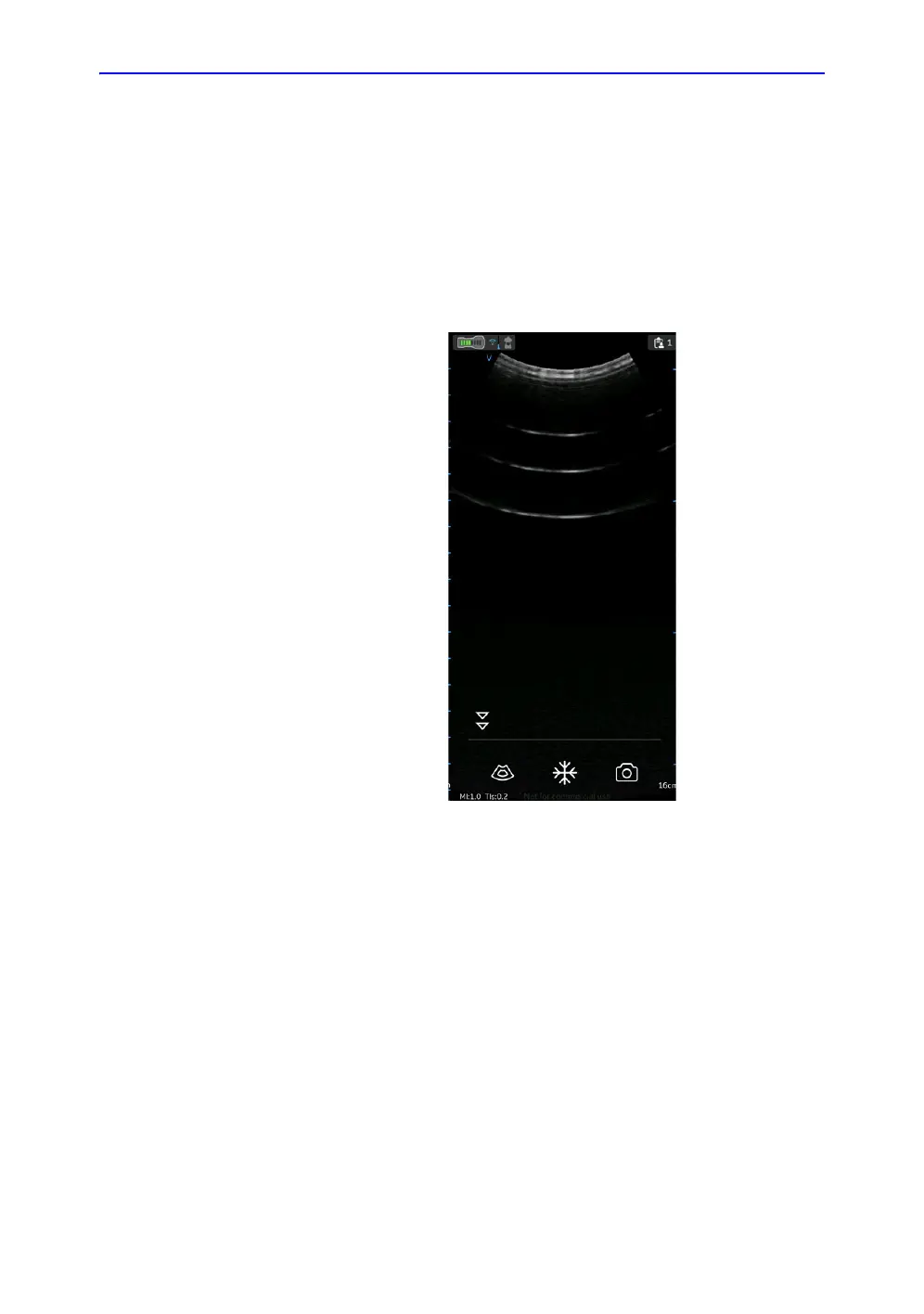

Figure 5-9. Black/ white (B-mode) scan screen
NOTE: As a safety precaution, scanning is not possible when charging
the Vscan Air CL probe.
