GE Vscan Air User Manual

System description
Vscan Air – User Manual 3-15
Direction GP092020-1EN Rev 18
Black/white imaging mode (B-mode)

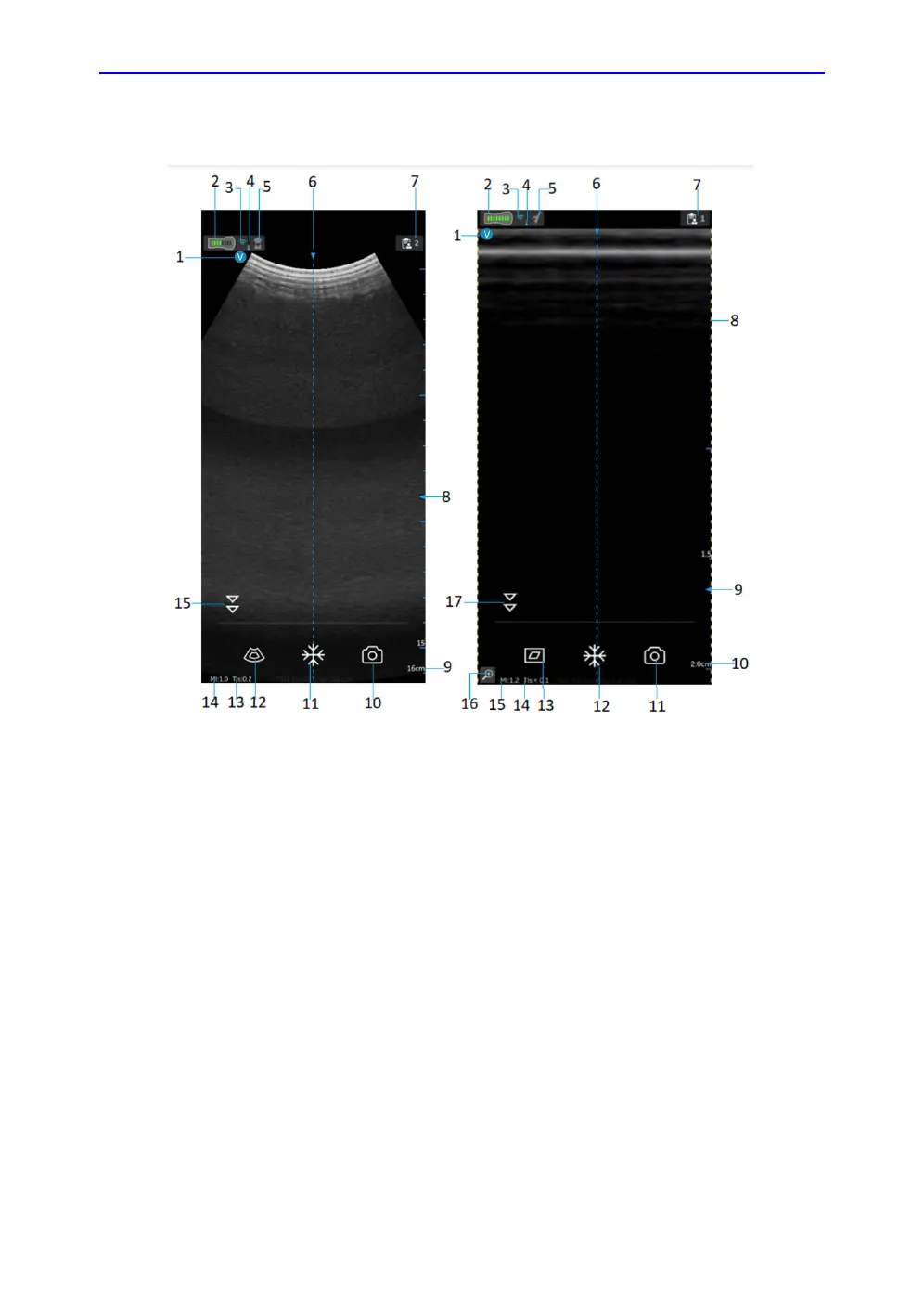

Figure 3-7. Black/white imaging mode (B-mode)
Curved array (deep scanning) transducer
1. Image orientation marker
2. Vscan Air battery status indicator
3. Probe link quality indicator
4. Thermal indicator
5. Selected preset
6. Center line marker
7. Exam number
8. Focus marker
9. Depth
10. Store
11. Freeze
12. Color flow
13. Thermal Index (TI)
14. Mechanical Index (MI)
15. Resolution/Penetration toggle button
Linear ar
ray (shallow scanning) transducer
1.
Image orientation marker
2.
Vscan Air battery status indicator
3.
Probe link quality indicator
4. The
rmal indicator
5. Selected preset
6.
Center line marker
7. Exa
m number
8.
Image crop indicators
9. F
ocus marker
10. Depth
11
.
S
tore
12. Fr
eeze
13. Color
flow
14.
Thermal Index (TI)
15.
Mechanical Index (MI)
16. Zoo
m indicator
17.
Resolution/Penetration toggle button

GE Vscan Air Specifications

General

Battery Life	Up to 50 minutes of scanning
Type	Handheld Ultrasound
Display	Via mobile device (not included)
Connectivity	Wi-Fi
Probe Type	Dual-probe
Charging Time	Approximately 2 hours
Charging	USB-C
Water Resistance	IP67
Transducer Type	Phased Array and Linear Array
Imaging Modes	Color Doppler
Operating System	Android, iOS
Storage	Via mobile device (not included)
Compatibility	Compatible with Android and iOS devices
