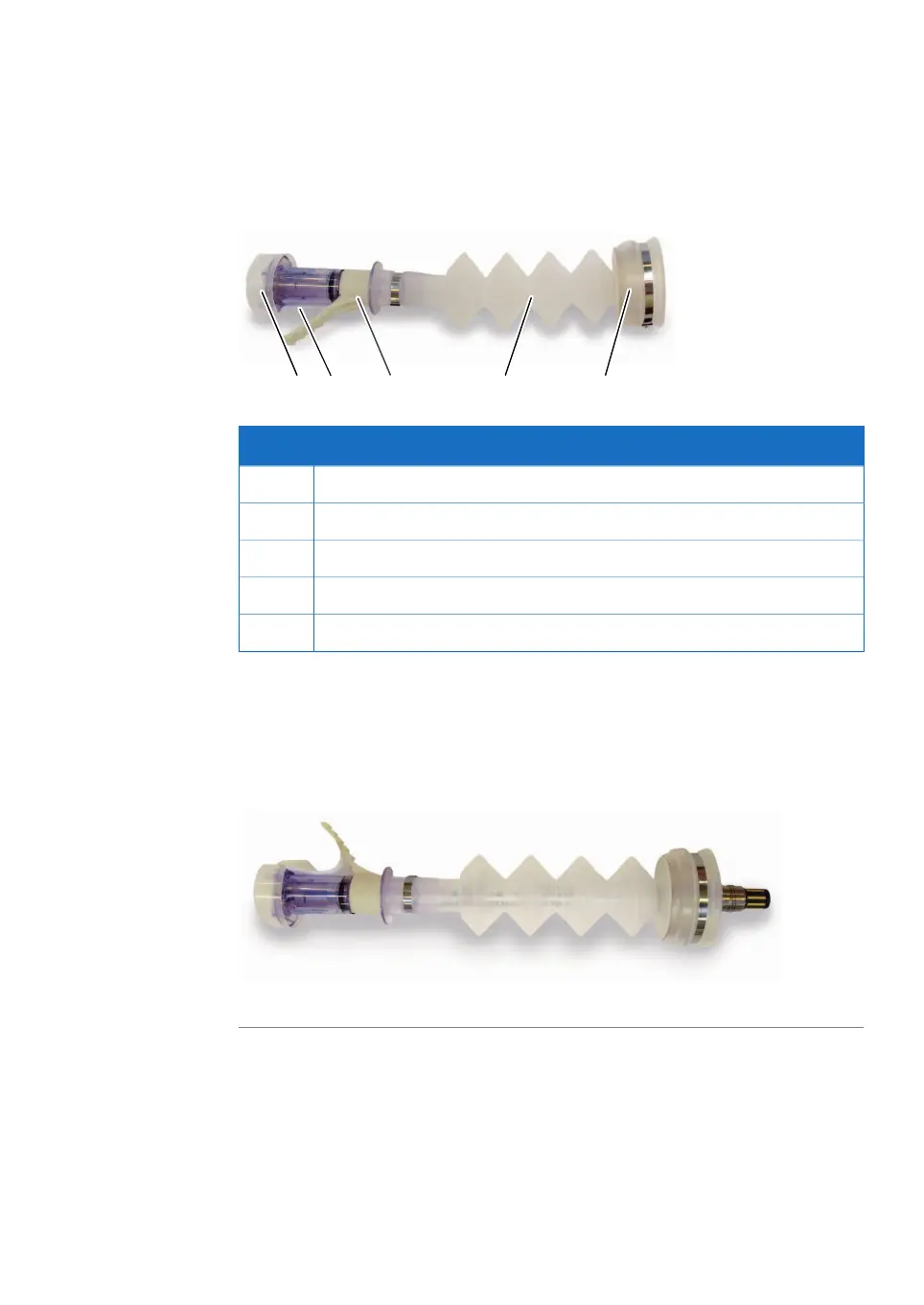

Illustration of the probe sheath
The following illustration shows the probe sheath.
1
2 3
4
5
DescriptionPart
Aseptic connection device (male end)1
Aseptic membrane2
Anti-actuation ring3
Bellows4
End plug5
Illustration of the probe sheath
assembly
The following illustration shows a probe sheath with the inserted probe.
Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD 83
3 System description
3.8 Disposable components
3.8.2 Probe sheath assembly
