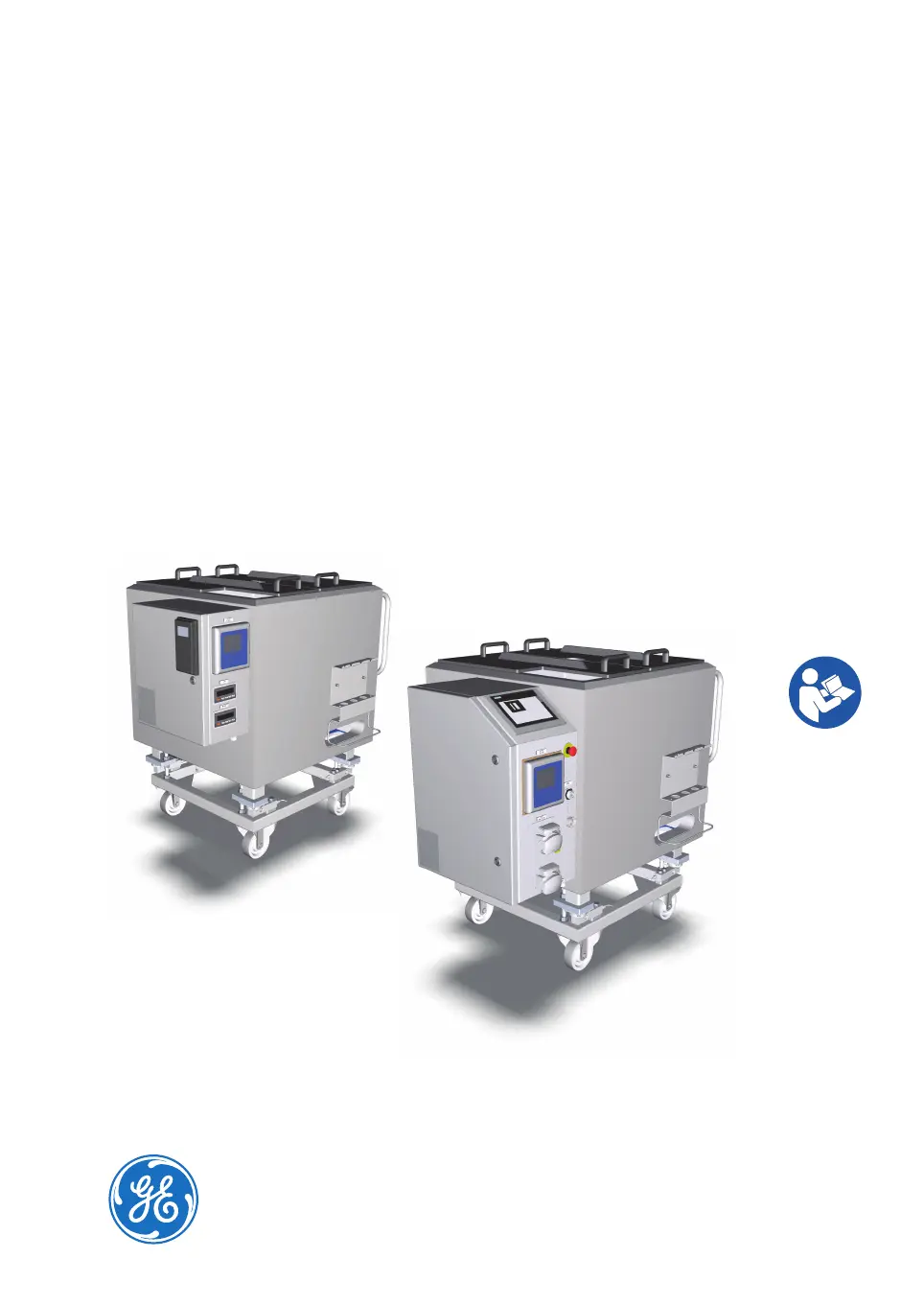

Xcellerex
™
XDM 50-1000, XDUO
100-1000 mixers
Operating Instructions
Original instructions
Translation disc enclosed

Table of Contents

Questions and Answers

  • W
    williamsnicholasDec 1, 2025
    What to do if temperature control unit (TCU) does not receive setpoint data on GE Xcellerex XDUO 200 Mixer?
    • J
      Joan SilvaDec 1, 2025
      If the Temperature Control Unit (TCU) does not receive setpoint data (temperature is not regulated, mixer vessel jacket does not feel warm, TCU does not sound as running): * Ensure the TCU is powered on. * Check the connection between the I/O Cabinet and the PolyScience™ TCU: 1. Hold the clock button on the left side of the TCU until HL is displayed (a few seconds). 2. Press the clock button repeatedly until CC appears on the left display. 3. If the display message is yes, the connection is working properly. 4. If the display message is no, the connection is not functioning. Check the connection cable between the TCU and PLC. * Check the connection between the I/O Cabinet and the Mokon™TCU: 1. Verify that the controller located on the front of the TCU is pow...
  • A
    Alexander DayAug 23, 2025
    What to do if load cell is not functioning as expected on GE Xcellerex XDUO 200?
    • A
      Anne StarkAug 23, 2025
      If the load cell is not functioning as expected, consider the following: * Ensure the load cell is properly connected. * Contact the metrology department to perform a cornering test to determine if a load cell has failed. * Verify that there are no physical obstructions blocking the load cell's motion. * Disengage the jacking bolt. Note that weight measurements are inaccurate if the mixer was filled while the jacking bolt was engaged. * Contact your GE representative if you suspect the configuration on the load cell transmitter is incorrect or corrupt. * Schedule a calibration of the load cells.
  • T
    Tonya FoleyAug 25, 2025
    What to do if weight monitoring error occurs on GE Xcellerex XDUO 200?
    • W
      wmathisAug 26, 2025
      If you encounter a weight monitoring error, such as a weight display outside the operational range or a weight alarm triggered when the mixer weight is within range, consider the following: * Contact the metrology department to perform a cornering test to determine if a load cell has failed. * Check for any physical obstructions that may be hindering the load cell's motion. Ensure the mixer vessel legs are free. * Disengage the jacking bolt. Note that inaccurate weight measurements can occur if the mixer was filled while the jacking bolt was engaged. * Contact your GE representative if you suspect the weight transmitter configuration is incorrect or corrupt.
  • D
    Dorothy LeeAug 26, 2025
    What to do if agitator does not start on FlexFactory controlled GE Mixer?
    • H
      Heather DodsonAug 27, 2025
      If the agitator does not start on a FlexFactory controlled mixer: * Enable the agitator. * Tap RESET on the local control software screen and start the agitator when the system has been restarted after emergency shutdown. Note: The agitator cannot be started while the system is in the state E-STOP. * If the system is in Manual mode, set the system to Auto mode and specify the setpoint. Note: When the system is in Manual mode the setpoint is ignored.
  • J
    Jared HarrisAug 27, 2025
    Why is variable frequency drive (VFD) not functioning as expected in GE Mixer?
    • V
      Victoria MelendezAug 27, 2025
      The variable frequency drive (VFD) might not be functioning as expected due to: * The motor being overloaded. Acknowledge the agitator fault and attempt to restart the motor. If the error persists, contact GE for service. * The power cable not being connected. Connect the power cable. * The drive is broken. Contact your GE representative to replace the drive.
  • K
    Kristen HernandezSep 18, 2025
    What to do if a button on local control panel screen is not working on GE Mixer?
    • P
      Peter BerrySep 18, 2025
      Contact your GE representative for possible replacement, as the local control panel screen may be broken.
  • D
    Danielle TylerSep 14, 2025
    What to do if agitator assembly does not fit properly in place on GE Xcellerex XDUO 200?
    • D
      Daniel MartinSep 15, 2025
      Contact your GE representative to schedule agitator alignment check and maintenance, as the agitator is not properly aligned.
  • C
    Cesar ElliottSep 16, 2025
    What to do if the home screen does not show up on the local control panel of GE Mixer?
    • J
      Julie HallSep 16, 2025
      Contact your GE representative for possible replacement, as the I/O Cabinet may be broken.
  • O
    Olivia SantosSep 7, 2025
    What to do if pH sensor changes are very slow for the application on GE Xcellerex XDUO 200?
    • B
      bennettsusanSep 7, 2025
      If pH sensor changes are very slow and pH control is not rapid enough for the application, do a study to find the best tuning parameters for your system and available reagents, as the tuning parameters or the concentration of the applied acid or base may not be sufficient.
  • J
    Jason BarnettSep 4, 2025
    What to do if the pump is not turning on GE Xcellerex XDUO 200?
    • B
      Brenda BentleySep 4, 2025
      If the pump is not turning: * Verify that the cause of the E-STOP condition is eliminated, and clear the E-STOP. Try to use the pumps again. * Clear the interlock condition.

Summary

1 Introduction to Xcellerex Mixers

1.2 Important User Information

Crucial safety, intended use, and prerequisite information for users.

2 Safety Instructions for Mixer Operation

2.1 Safety Precautions Overview

Covers general, personal, installation, environmental, and maintenance safety.

2.3 Emergency Procedures

Details emergency shutdown and power/communication failure protocols.

2.4 XDUO Mixer Interlocks Explained

3 System Description

3.5 Key Safety Hardware Features

Details safety systems like emergency stop, labeling, burst disc, interlocks, and fuses.

3.6 Mixer Automation and Control Systems

4 User Interface Navigation

4.1 General Control Software Description

Overview of XDUO local control software, home screen, and variable displays.

4.3 Alarm Screen Management

5 Installation Procedures

5.1 Installation Safety Precautions

Details safety warnings for installation: PPE, electrical, magnets, power.

5.2 Site Requirements for Installation

5.3 Mixer Installation Steps

Guides on moving, electrical installation, and configuring local control software.

5.4 Temperature Control Unit Connection

6 Preparation for Operation

6.1 Preparation Safety Precautions

Safety measures for preparation: PPE, magnets, general cautions.

6.2 Stabilizing the Mixer Vessel

6.3 Disposable Bag Preparation

Guides on unpacking, inspecting, and installing the disposable bag assembly.

6.4 Probe Preparation and Installation

Details on preparing, calibrating, and installing pH, conductivity, and temperature probes.

6.6 Pump Preparation Procedures

7 Operation Procedures

7.1 Operational Safety Precautions

Safety measures during operation: substances, ventilation, hot surfaces, pinch hazards.

7.2 Operating the XDM Mixer

Guides on starting, operating agitator, and monitoring parameters for XDM mixer.

7.3 Operating the XDUO Mixer

Instructions for starting, controlling agitator, pumps, pH, temperature, and weight.

7.4 Adding Liquid Contents to Bag

7.5 Adding Solid Contents to Bag

7.6 Finishing a Batch Run

8 Maintenance Procedures

8.1 Maintenance Safety Precautions

Safety guidelines for maintenance: trained personnel, electrical safety, contamination.

8.2 Maintenance and Calibration Schedules

8.3 Lock-Out;Tag-Out (LOTO) Turn-Off

Details the recommended Lock-Out/Tag-Out procedure for turning off the mixer.

8.4 Lock-Out;Tag-Out (LOTO) Turn-On

Details the recommended Lock-Out/Tag-Out procedure for turning on the mixer.

8.5 Equipment Cleaning Guidelines

8.6 Hardware Maintenance Tasks

9 Troubleshooting Guide

XDM Mixer Agitation Issues

Troubleshooting for XDM mixer agitation problems like VFD and motor faults.

XDUO Mixer Agitation Problems

Troubleshooting XDUO agitation: interlocks, E-STOP, manual mode, alignment.

Local Control Panel Issues (XDUO)

XDUO pH Control Problems

Troubleshooting XDUO pH control: equilibrium, deadband, PID parameters, and reagents.

pH;Conductivity Monitoring Issues

XDUO Pump Operational Problems

Temperature Control and Monitoring Issues

Weight Monitoring Troubleshooting

Appendix B: User Management

Appendix C: Audit and Data Log Download

Appendix D: Privacy and Security

GE Xcellerex XDUO 200 Specifications

General IconGeneral
TypeSingle-use mixer
Nominal Volume200 L
Material (Biocontainer)Polyethylene
Biocontainer Volume200 L
Capacity200 L
Power Requirements50/60 Hz
MaterialStainless steel
