09726-06.2018-DGbF

3| Areas of application

 Thecompressorsarelledatthefactorywiththefollowingoiltype:

-fürR404A/R507,R410A,R448A/R449A FUCHSRenisoTritonSE55

 -fürR22  FUCHSRenisoSP46

Compressorswithesteroilcharge(FUCHSRenisoTritonSE55)aremarkedwithanX in the type

designation(e.g.HGZX7/2110-4R404A).

3.1 Refrigerants

• HFKW:   R404A/R507,R410A,R448A/R449A

• (H)FCKW:   R22

3.2 Oil charge

INFO For refilling, we recommend the above oil types.

Alternatives: see lubricants table, Chapter 8.5.

ATTENTION Compressor operation is possible within the operating limits

shown in the diagrams. Please note the signicance

of the shaded areas. Thresholds should not be selected as design

or continuous operation points.

- Permissible ambient temperature (-20°C) - (+60°C)

- Max. permissible discharge end temperature 140 °C

-Max.permissibleswitchingfrequency12x/h.

- A minimum running time of 3 min. steady-state condition

(continuous operation) must be achieved.

For operation with supplementary cooling:

- Use only oils with high thermal stability.

- Avoid continuous operation near the threshold.

When operating in the vacuum range, there is a danger of air

entering on the suction side. This can cause chemical reactions,

a pressure rise in the condenser and an elevated compressed-gas

temperature. Prevent the ingress of air at all costs!

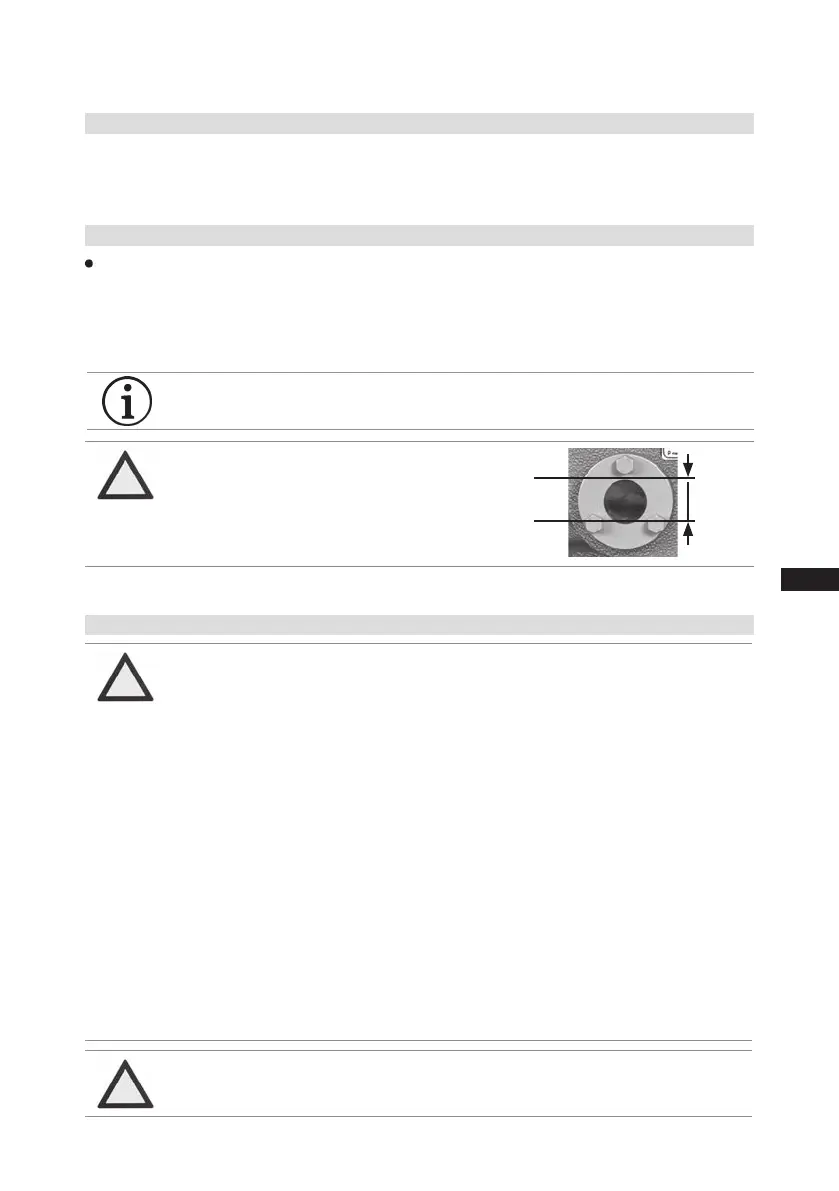

3.3 Limits of application

ATTENTION The oil level must be in the

visible part of the sight glass;

damage to the compressor is

possible if overfilled or under-

filled!

max.

min.

2,3 Ltr.

oil level

Fig. 6

ATTENTION Anyoperationwithfrequencyconverterisinadmissible.

GEA Bock HGZ7 Series User Manual
