3| Areas of application
Thecompressorsarelledatthefactorywiththefollowingoiltype:
FUCHSRenisoTritonSE55
Compressorswithesteroilcharge(FUCHSRenisoTritonSE55)aremarkedwithanXinthetype
designation(e.g.HGX7/2110-4R134a).
3.1 Refrigerants
• HFKW/HFC:R134a
3.2 Oil charge
ATTENTION! Compressor operation is possible within the operating limits
shown in the diagrams. Please note the signicance
of the shaded areas. Thresholds should not be selected as design
or continuous operation points.
- Max. permissible discharge end temperature 140 °C
    -Max.permissibleswitchingfrequency12x/h.
- A minimum running time of 3 min. steady-state condition
(continuous operation) must be achieved.
For operation with additional cooling:
- Use only oils that are highly thermally stable.
- Avoid continuous operation near the limits.
For operation with capacity regulator:
- The suction gas superheat temperature may need to be reduced
or set individually when operating near to the threshold.
Foroperationwithfrequencyconverter:
- The maximum current and power consumption must not be
exceeded. Inthecaseofoperationabovethe mainsfrequency,
the application limit can therefore be limited.
During operation in the vacuum range, there is a danger of air
    enteringonthesuctionside.Thiscancausechemicalreactions,
pressure rise in the condenser and an excessive compressed-gas
temperature. Avoid absolutely any entry of air.
3.3 Limits of application
INFO!
Forrefilling,werecommendtheaboveoiltypes.
Alternatives: seelubricantstable,Chapter7.5.

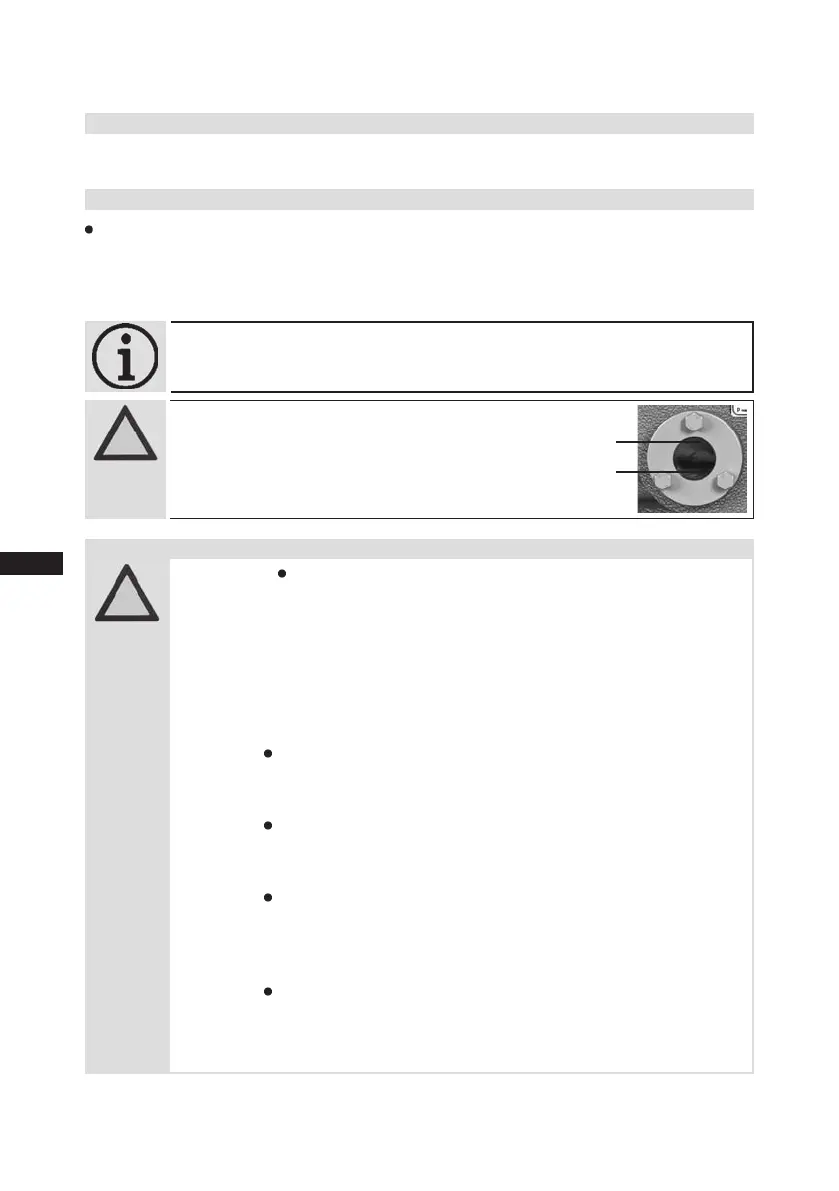

The oil level must be in the visible
part of the sight glass; damage
to the compressor is possible if
overfilled or underfilled!
ATTENTION!
Fig.3
max.oillevel
min.oillevel
