Product description

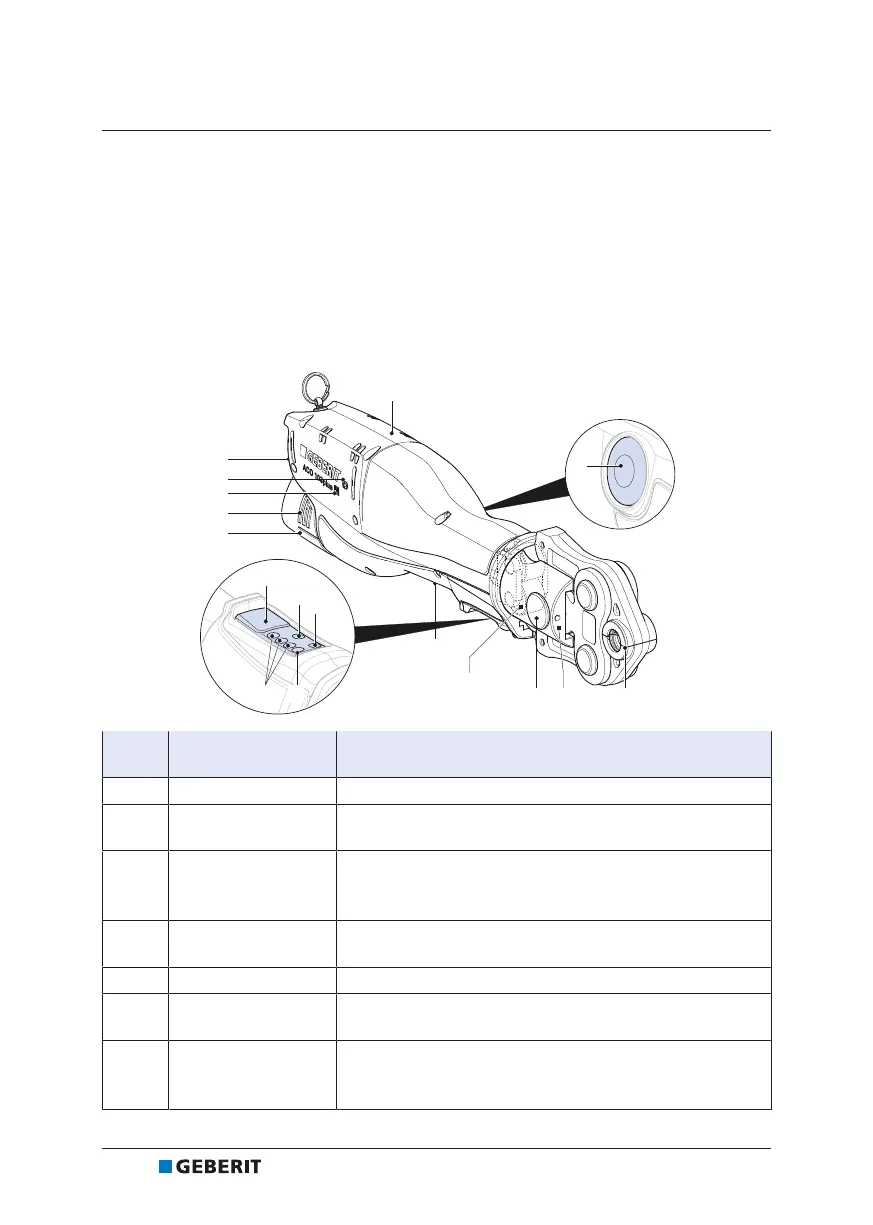

Structure and function
The Geberit pressing tool ACO 103plus consists of:
• pressing tool with operating instructions
• pressing jaws with the compatibility mark
• rechargeable battery and battery charger with operating instructions
• “General safety notes for power tools” document
• transport case
The equipment may vary depending on the scope of delivery.

















Item
no.
Designation Function/description
1 Pressing tool –
2 Release button
Press and hold: interrupts the pressing procedure. Roller
drive moves back into starting position.
3 Pressing attachment
• Pressing jaw corresponds to the diameter of the press-
fitting.
• Pressing attachment with warning note sticker
4 Swivelling head
Can be rotated 180°. This can only be rotated before
pressing.
5 Retaining pin Holds the pressing attachment in place
6 Roller drive
Transfers the pressing force from the pressing tool to the
pressing attachment.
7 Green LED
• Lights up: tool is ready for operation.
• Flashes: malfunction → See "Rectifying malfunctions",
page30.
