30

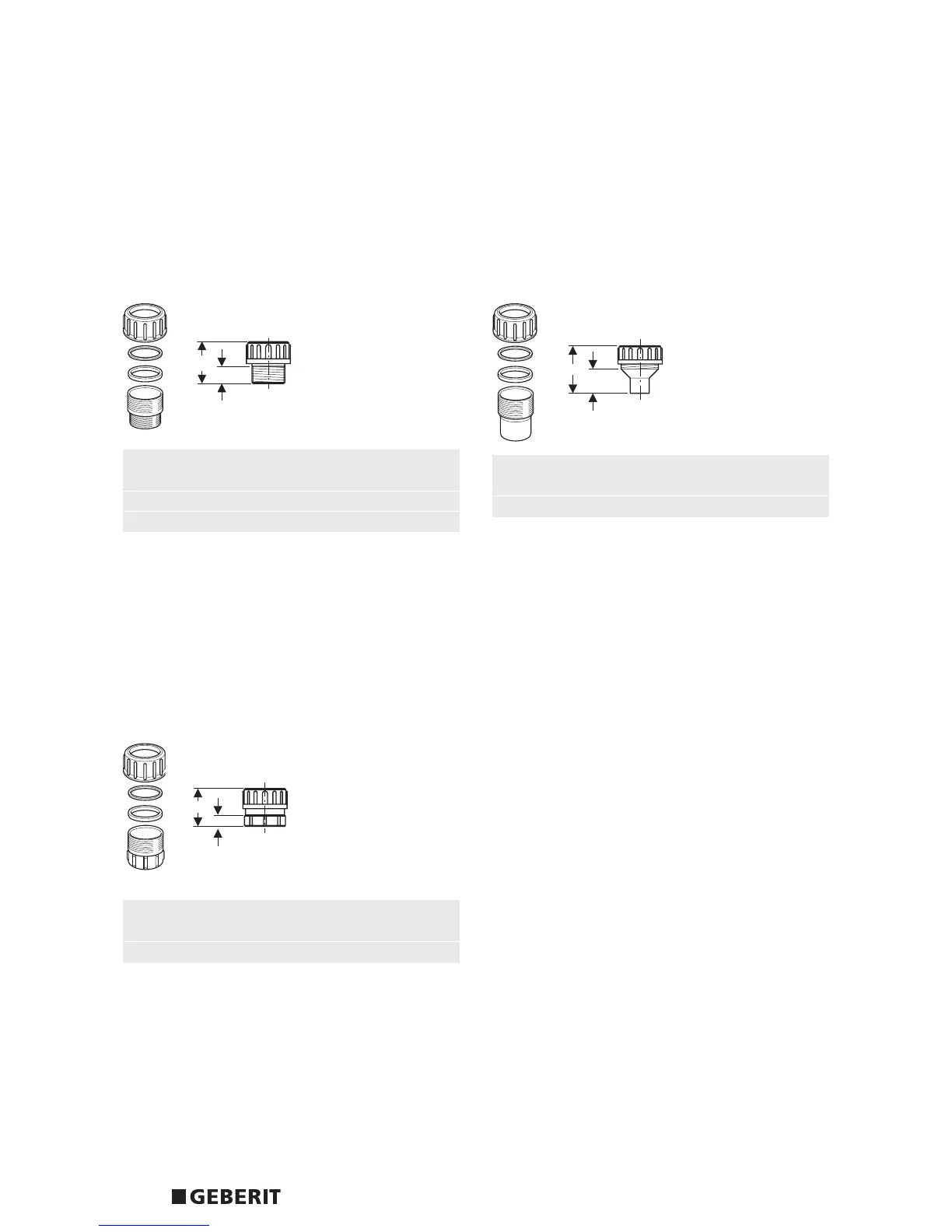

Male iron BSP connector with compression joint
to HDPE
Provides male iron connection to female iron threaded
BSP fittings. Body made from brass with HDPE loose
nut and EPDM seal for mechanical jointing to HDPE and
screw thread jointing to other materials.
Geberit HDPE adapter in brass with male thread and
HDPE nut
Female iron BSP connector with compression joint
to HDPE
Provides female iron connection to male iron threaded
BSP fittings. Body made from brass with HDPE loose
nut and EPDM seal for mechanical jointing to HDPE and
screw thread jointing to other materials.
Geberit HDPE adapter in brass with female thread and
HDPE nut
Article no. dØ R
mm “
359.309.00.1 50 1
1
⁄2
359.311.00.1 56 2
Article no. dØ Rp
mm “
359.313.00.1 56 2
d
R
H
h
Male spigot connector with compression joint
to HDPE
Provides male spigot connection in brass for soft and
hard soldering to lead pipe. Body made from brass with
HDPE loose nut and EPDM seal for mechanical jointing
to HDPE.
Geberit HDPE adapter in brass for soldering and
HDPE nut
Article no. dØ d1Ø
mm “
359.330.00.1 56 54
d
d1
H
h
d
Rp
H
h
