Geberit HDPE - System Installation

31

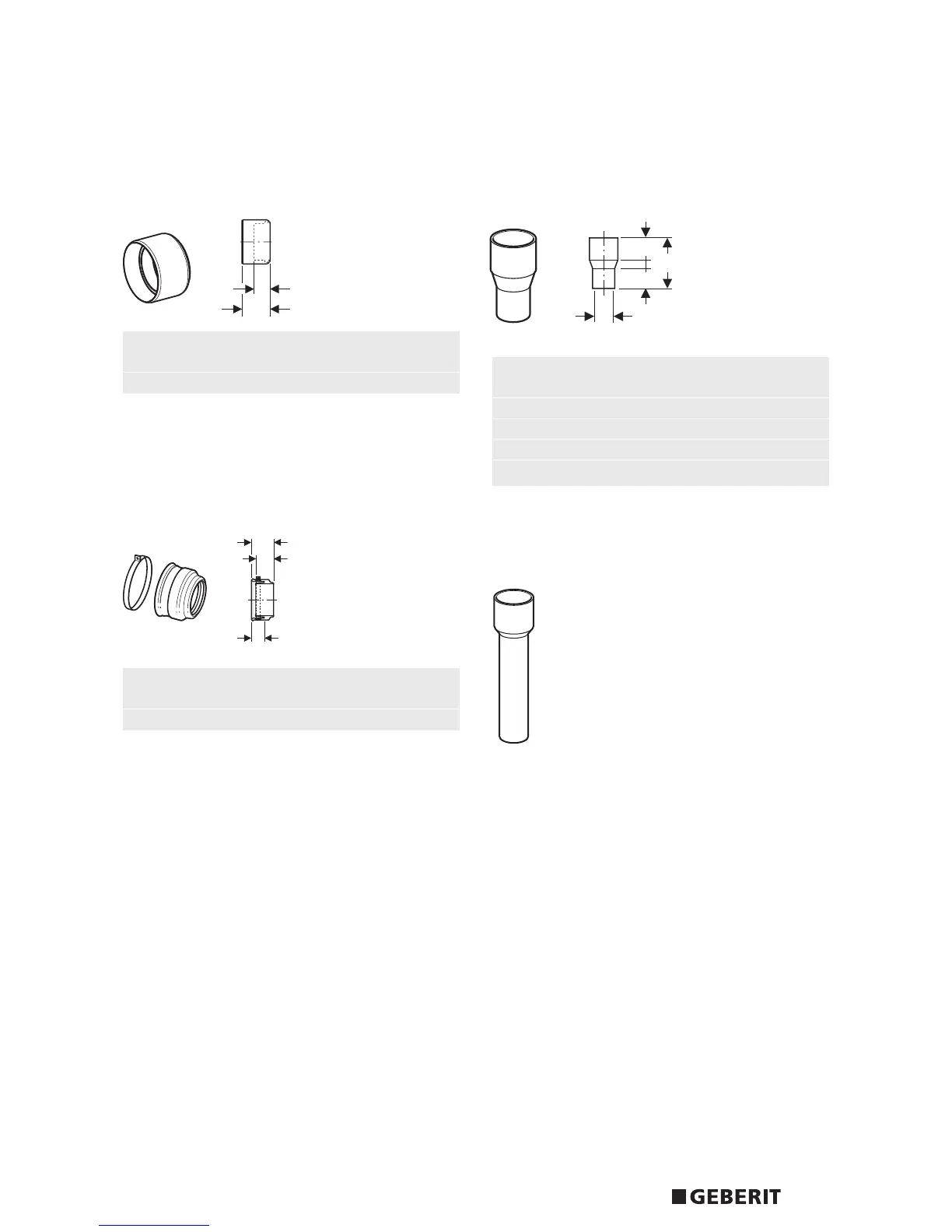

HDPE to PVC-U Adapter 110mm x 90mm
For pushfit into 110mm PVC-U ring seal socket to
accept 90mm HDPE into a seal ring socket.
Geberit adapter for PVC coupling 110mm
7
4
d1d
Article no. dØ d1Ø
mm mm
152.465.00.1 110 90
HDPE to Cast Iron Adapter 110mm x 90mm
EPDM adapter from 90mm HDPE pipe to 110mm
cast iron pipe.
Geberit HDPE adapter to cast iron
Article no. dØ d1Ø
mm mm
367.009.16.1 90 110
4
d
d1
5
4
6
7
Geberit Drainage Systems
Jointing methods
Contraction sleeve (heat shrink)
Available from Ø 50 to 160mm (connects up to 230mm).
Connection properties
a Rigid, non-removable.
a Non-tension-resistant.
Application
The Geberit HDPE contraction sleeve is a convenient
connection possibility for most uneven, irregular, or
special materials. A common additional application
method is also the connection from HDPE to different
clay ware apparatus, e.g. for laboratory sinks.
Contraction sleeve to be buttwelded or electrowelded
to the HDPE pipe.
B.152.153/001
Adapters from Metric size HDPE pipes to Imperial
PVC-U/ABS/PP pipes
Geberit HDPE Metric O/D to imperial uPVC OD size
adapter for imperial size traps 32mm to 1
1
⁄4” and 1
1
⁄2”
Article no. dØ d1Ø
mm mm
360.722.16.1 40 36.5
360.723.16.1 40 43
361.728.16.1 50 43
379.701.16.1 32 36
d
di
d1
7
7
3
5
3
5
