Geberit HDPE - Page 50

49

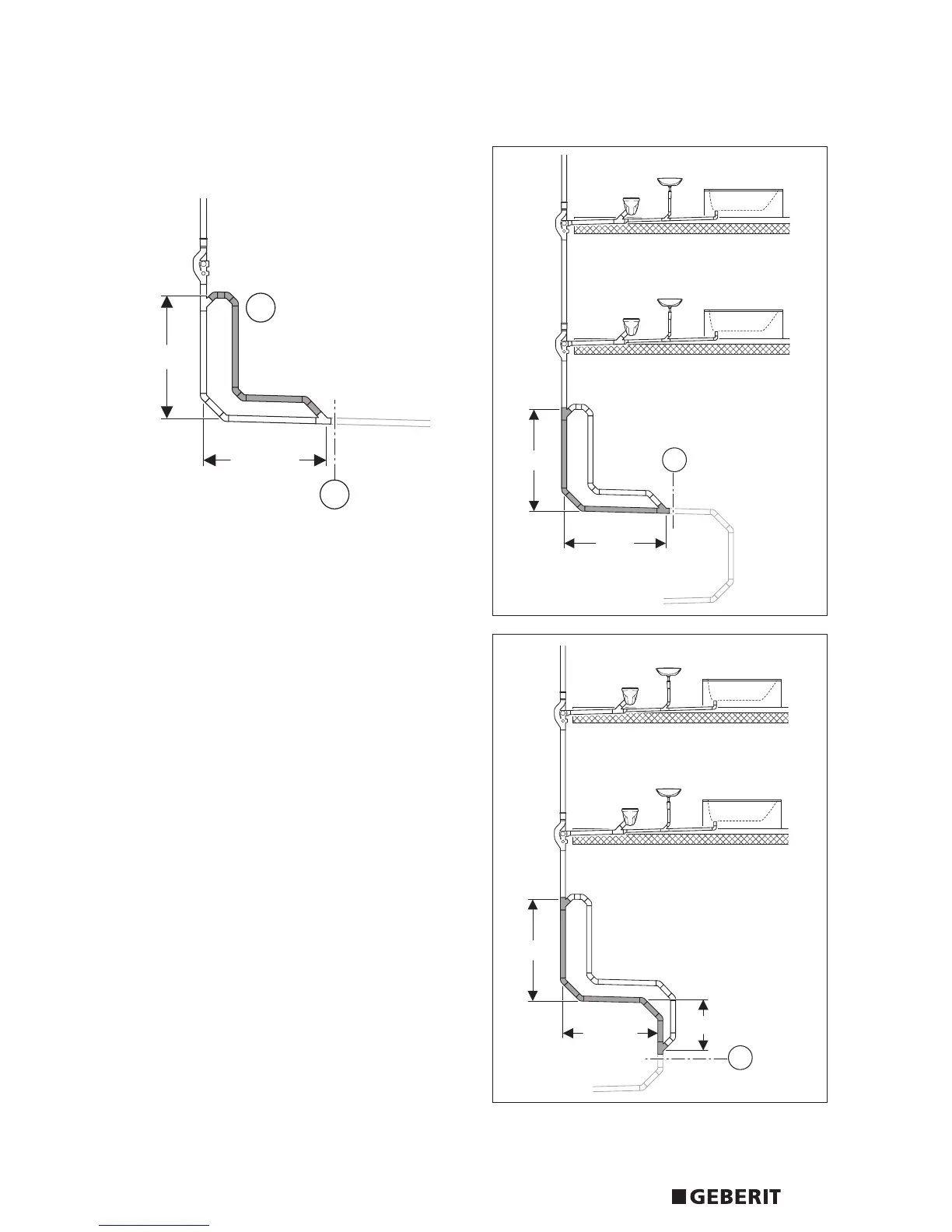

Zones without connections in the stack offset
1End of the Sovent system; planning of the subs equent pipe layout in accordance with country-
specific standards
2 m
2 m
1 m
2 m
< 2 m
1
1
1End of the Sovent system; planning of the subs equent pipe layout in accordance with country-
specific standards
2 m
2 m
1 m
2 m
< 2 m
1
1
1 End of the Sovent systems; planning of the subsequent
pipe layout in accordance with country-specific standards
1 End of the Sovent system
2 Branch ventilation pipe for pressure relief
Alternative stack ventilation system
Geberit Drainage Systems
Note:
When several Sovent stacks are connected to an
underground pipe or a collector pipe, they must be
dimensioned in accordance with the specifications
in Section 7.3
Transition to the underground or collector pipe
A branch ventilation pipe must be fitted at the end of
each Sovent discharge stack for reducing the pressure.
1 End of the Sovent system
2Branch ventilation pipe for pressure relief
Note:
When several Sovent stacks are connected to an underground pipe or a collector pipe, they must be
dimensioned in accordance with the specifications in Chapter 5.3.
2 m
2 m
d 110
2
1
