Additional connections to the Sovent discharge stack
Normally, all pipes can be connected to the Sovent
fitting. As an exception, however, condensation pipes
can be connected to the stack between two Sovent
fitiingswhenthefollowingconditionsaremet:
• Themaximumdimensionofthebranchdischarge
pipe is ø 63mm
• Theconnectionismadeexclusivelyusingan88.5º
branch fitting
ø 63 / DN 60
Ge
berit Drainage Systems
Alternative stack ventilation system
Discharge stack with offset

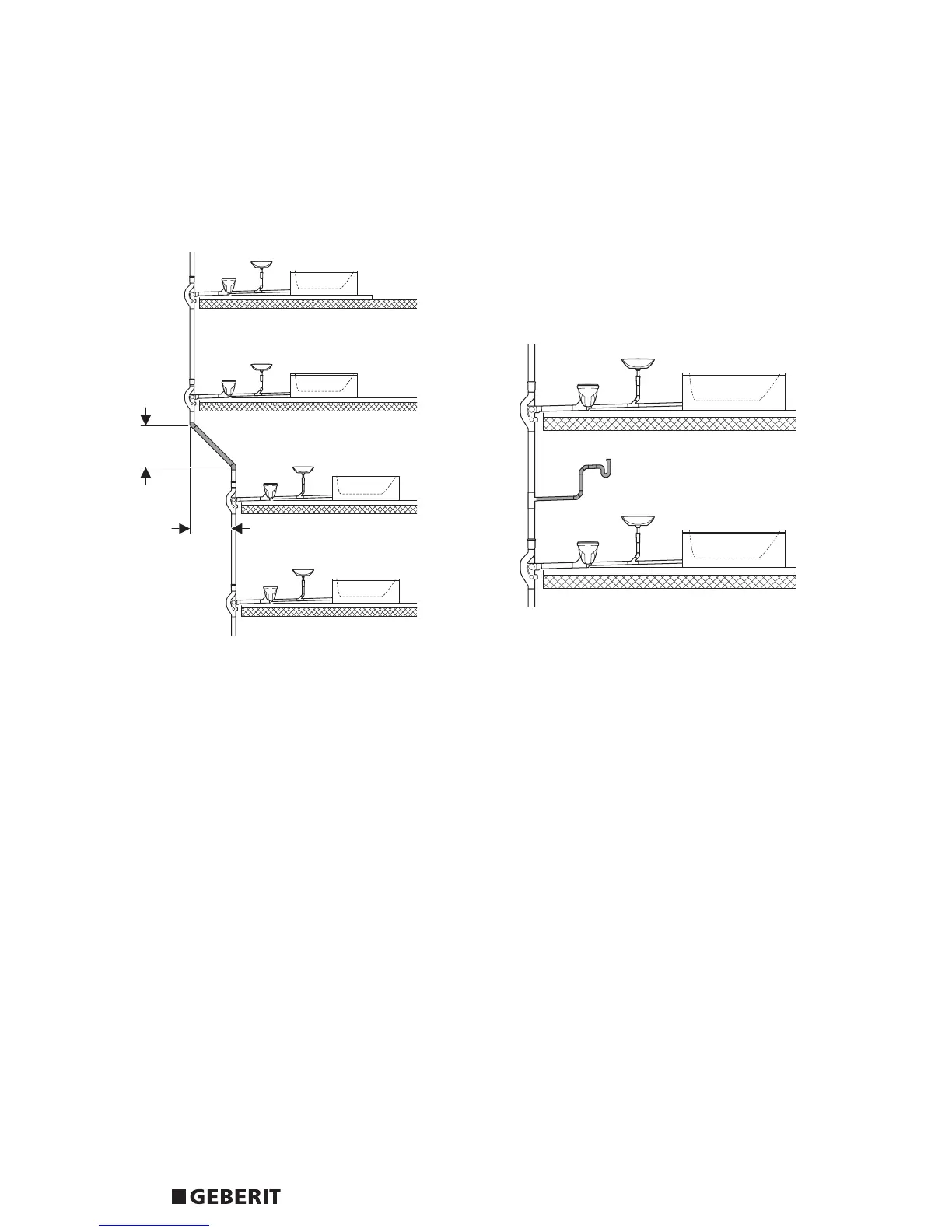

If an offset is necessary in the the discharge stack, this
can be configured without further measures at max. 45º
deflection up to an offset of 1m. If the offset is larger, a
pressure relief pipe must be planned in the same way
as for the stack offset.
1 m
1 m
