12
in.xe™
Installing the in.k200™
The keypad should be installed directly onto the spa (or very
close to it) so that it is easily accessible to the user.

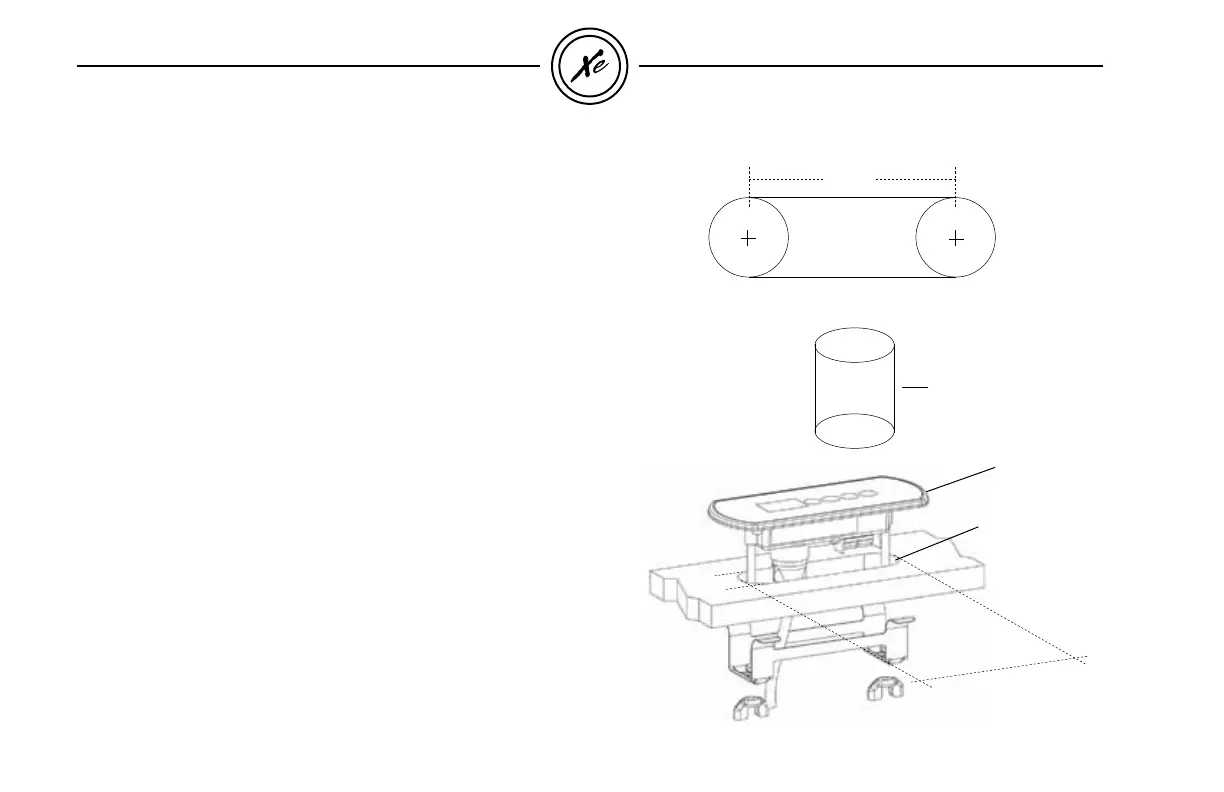

• To install the in.k200™, drill two 1” (25 mm) diameter holes at
2 5/8” (67 mm) from center to center as illustrated.
• Cut out the material between the two holes (see illustration).
• Clean the installation surface and peel the adhesive gasket from
the back of the keypad.
• Insert keypad and align it correctly, then ensure it's properly
glued by gently pressing evenly on the entire surface.
If the keypad is equipped with an optional holder plate remove the
two wing nuts in the back of the keypad and remove the mounting
bracket.
Insert the keypad into opening you have cut out. Put the mounting
bracket and the wing nuts back on their respective bolts and fix the
keypad securely in place (see illustration above).
Note: It is the installer’s responsibility to ensure that no obstructions
(cables, piping, etc.) are present below the deck at the drill hole
location.
Note: If the installation location is not perfectly even (e.g. wood
surface), make a silicone joint between the installation location and
the back of the unit to ensure a proper seal around it.
keypad installation & connections
∅ 1"
(25 mm)
Gasket with adhesive
2 5/8"
67 mm
∅
1"
(25 mm)
∅ 1"
(25 mm)
1"
(25 mm)
dia. drill
1"
(25 mm)
3
5/8
"
92 mm
