7

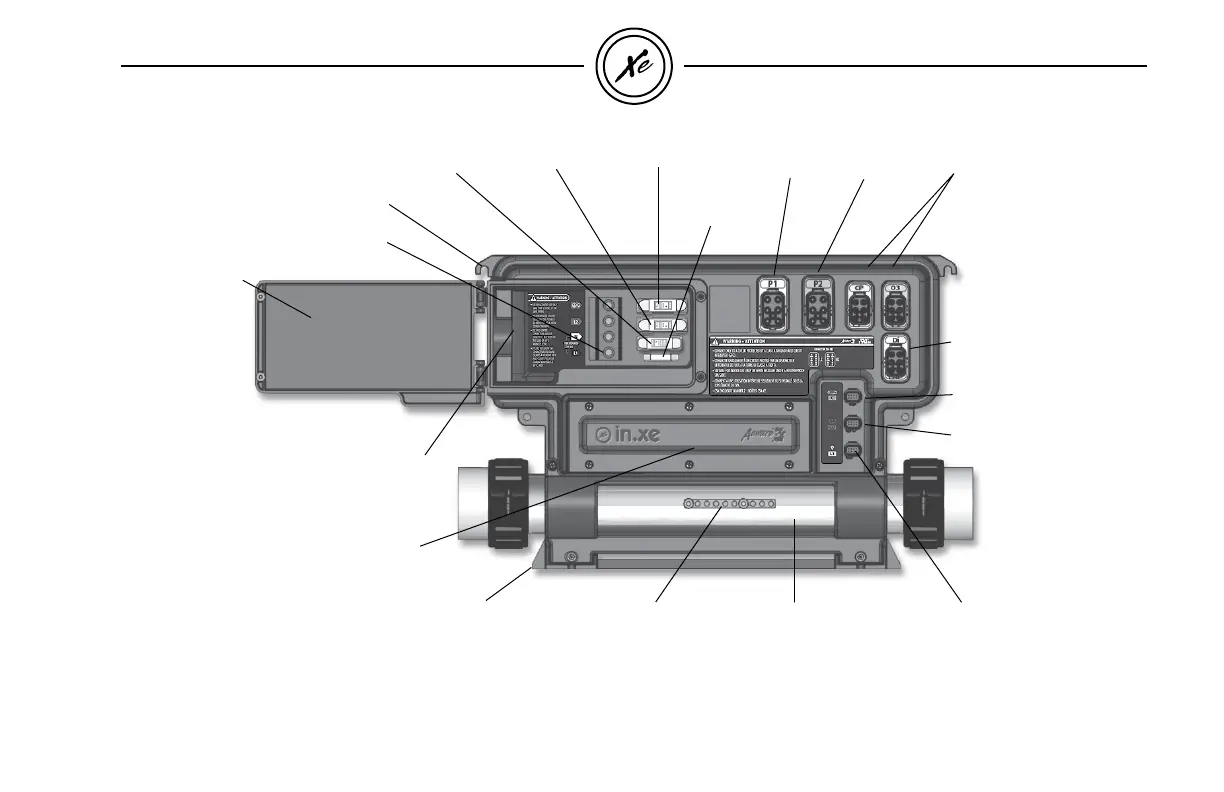

in.xe™
Transformer fuse
Main power
entry connection
Main power
cable input entry
Mounting feet
Installation brackets
Door to access
power input
connectors
and fuses
Light 12 vac connector
(1 amp max)
2 connectors for outputs
controlled by independent
relays (for oz, cp, light, blower
or any other accessories)
(120/240 vac 5 Amp).
*Only one output is available on
IN.XE-3-XX-XXX
Connector for direct
120/240 vac 5 Amp output
(for in.play™ audio or video
accessories)
Main keypad connector
Accessory fuse Pump 2 fuse Pump 1 fuse
Communication
connector (in.stik™)
Bonding lug
Access to heater
connections
overview
Heat.wav™ heater
Note: No connectors should remain unplugged. Use blank plugs to fill unused connectors.
* Pump 2
connector
Pump 1
connector
* Only available on IN.XE-5-XX-XXX
