15
in.xe™
To install the wiring for the
in.xe™ spa control, you'll need
a Phillips screwdriver and a flat
screwdriver.
Loosen the 2 screws of the Spa
Pack door and open it.
Remove 5 1/2" (142 mm) of
cable insulation.

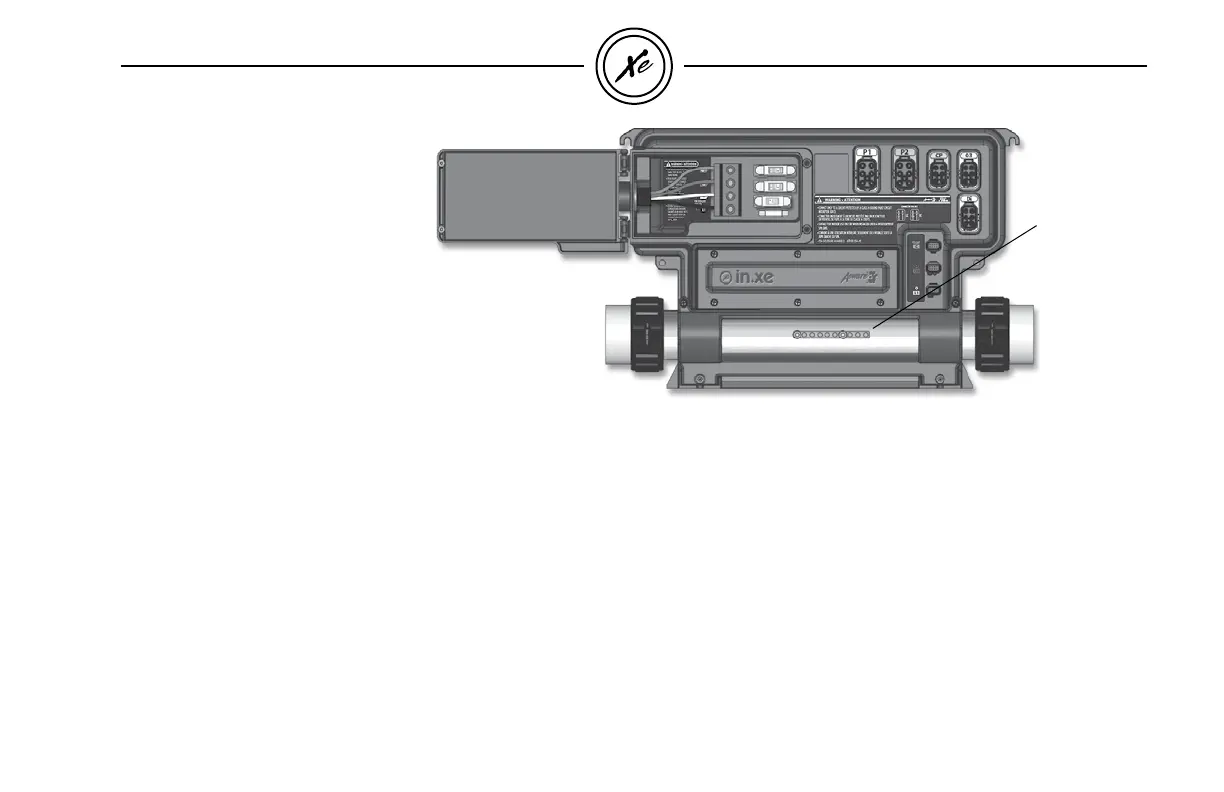

Connect the bonding conduc-
tor to the bonding lug on the
front of the in.xe™ Spa Pack
(a grounded electrode conduc-
tor shall be used to connect
the equipment grounding con-
ductors).
bonding lug
Strip away 1" (25 mm) of each
wire insulation.
Pull the cable through the
cutout of the box and secure it
with a strain relief (1" NPT strain
relief; hole diameter: 1.335").
(For CE use an IEC certified
plastic bushing that will
maintain the IPX5 rating.)
Make sure that only the uncut
sheathing is clamped at this
opening.
Push the color-coded wires
into the terminals as indicated
on the sticker and use the flat
screwdriver to tighten the
screws on the terminals.
After making sure wire connec-
tions are secure, push them
back into the box and close the
door. Tighten the 2 screws of
the Spa Pack door.
Electrical wiring
North American or ce model in.xe™
electrical wiring
