Gecko Aeware In.Xe User Manual

19
in.xe™ in.link™ connectors
In.link™ output connectors:
High-Current - HC connectors:
Output Typical Device
Out 1 Pump 1
Out 2 Pump 2*
Low-Current - LC connectors: (relay controlled)
Output Typical Device
Out 3 Blower*
Out 4 Ozonator
Out 5 Audio/video (direct to line)
Low-Voltage - LV connectors:
Output Typical Device
C Main keypad
CO Comm. Connector (in.stik™, in.watch™)
L1 Light
Female connector on Spa Pack
LCHC
6
5
4
3
2
1
6
5
4
3
2
1
* Pump 2
connector
Pump 1
connector
* Blower
connector
Ozonator
connector
Direct
connector
Keypad
connector
Comm
connector
Light
connector

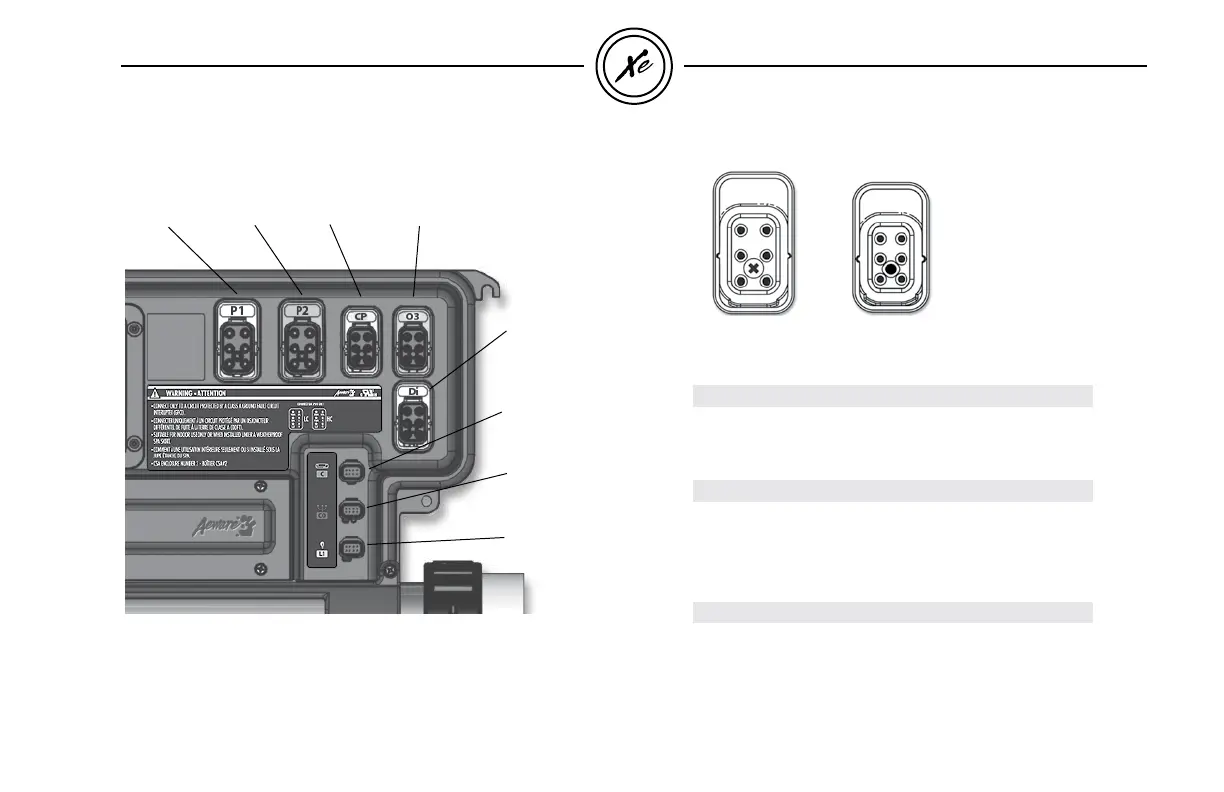

Connector Map
* Only available on IN.XE-5-XX-XXX
