25
in.xe™

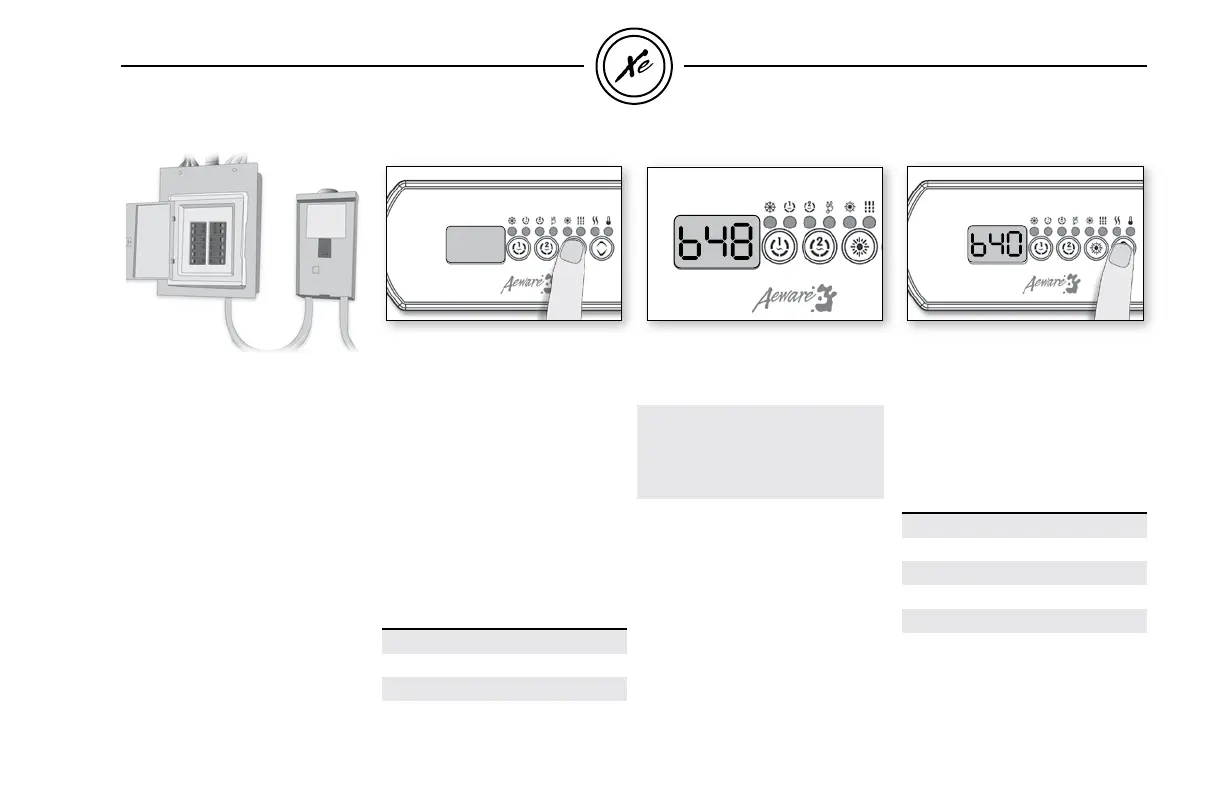

power-up & breaker setting
Make sure all accessories
are linked to the bonding
connector and connected
to pack.
Turn on the breaker.
It's important to specify the
current rating of the GFCI used
to insure safe and efficient
current management (and no
GFCI trippings).
Press and hold Light button
until you access the breaker
setting menu.
Number of Phase selection
UL Menu not available
CE 1 or 2
UL Swim 1 or 2
Ce Swim 1,2 or 3
The values displayed by the
system correspond to 0.8 of
the maximum amperage
capacity of the GFCI.
Use Up or Down button to
select the desired value.
The value can be modify
typicaly from 10 to 48 for UL
version, and 10 to 40 AMP for
CE version.
Then press Light button to set
breaker rating.
This table shows typical setting
of Br for GFCI. Select the on that
match your breaker.
GFCI Br
60 Amp 48 Amp
50 Amp 40 Amp
40 Amp 32 Amp
30 Amp 24 Amp
20 Amp 16 Amp
Note: Every OEM has its own preset
configurations.
